Schneider Electric

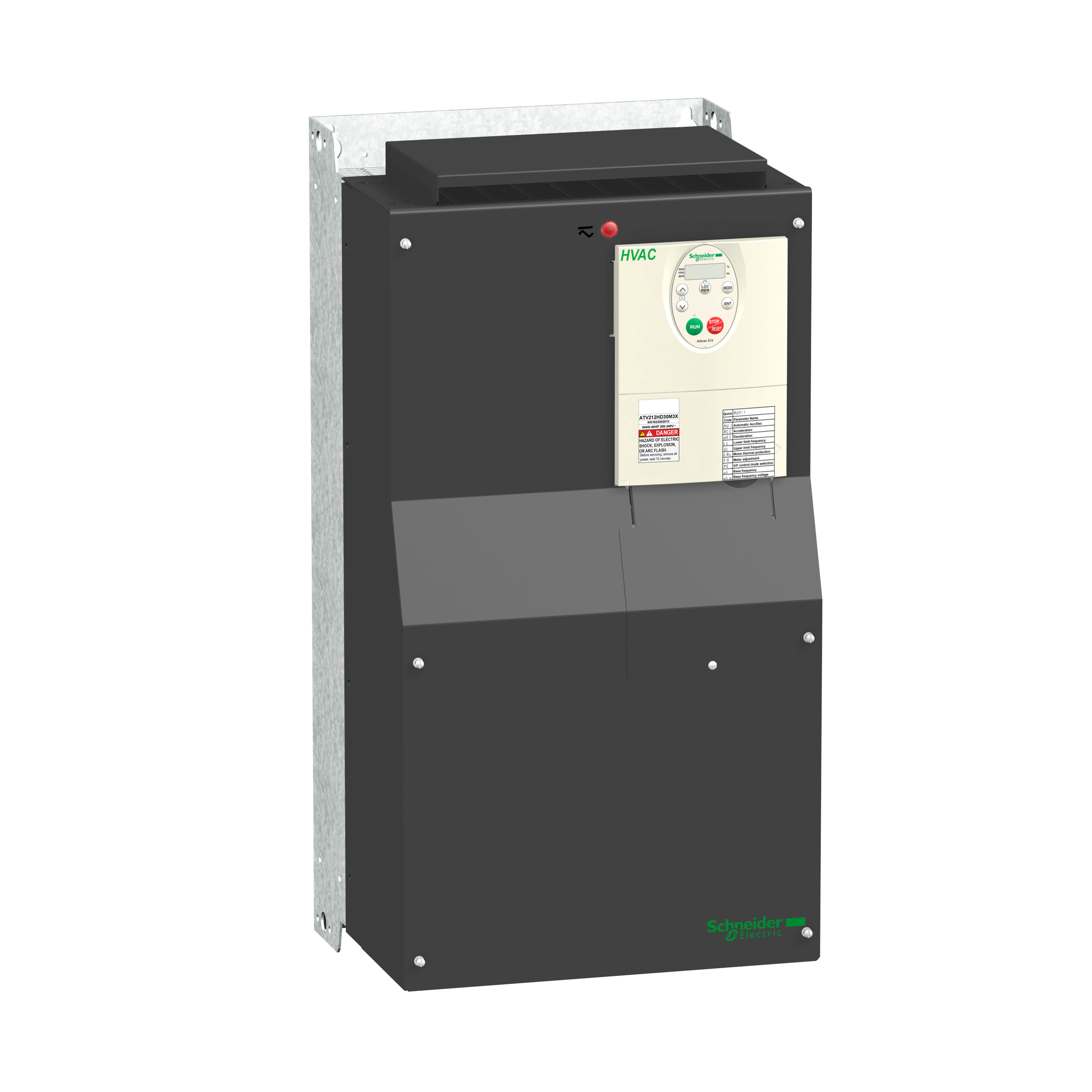

Schneider ElectricAltivar 212 ATV212HD55N4 Variable Speed Drive, 480 VAC, 116 A, 75 hp, 12.6 in W x 11.42 in D
Custom_Product_Images_Illustration
Schneider Electric
Schneider ElectricAltivar 212 ATV212HD55N4 Variable Speed Drive, 480 VAC, 116 A, 75 hp, 12.6 in W x 11.42 in D
SKU728965
MFGR #ATV212HD55N4
Your Cost: $6,887.45/ea
Schneider Electric ATV212HD55N4 SPEEDDRIVE 380-480VAC 75HP,ATV212,116.0A 75HP,3 Phase Input, 3 Phase Output,400/480 Vac 3-Phase,480/480,50/60Hz,55kW,AC Drive,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Open IP20,Size 8A,UL Listed, CE Marked, UL 1995 Plenum-rated, AHRI Certified,Variable Torque,terminal 2.5 mmA? / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)terminal 150 mmA? kcmil size 300 (L1/R, L2/S, L3/T) 1 RJ451 open style
Schneider Electric ATV212HD55N4 SPEEDDRIVE 380-480VAC 75HP,ATV212,116.0A 75HP,3 Phase Input, 3 Phase Output,400/480 Vac 3-Phase,480/480,50/60Hz,55kW,AC Drive,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Open IP20,Size 8A,UL Listed, CE Marked, UL 1995 Plenum-rated, AHRI Certified,Variable Torque,terminal 2.5 mmA? / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)terminal 150 mmA? kcmil size 300 (L1/R, L2/S, L3/T) 1 RJ451 open style
Alternate Catalog Number ATV212HD55N4 Application Asynchronous motors;Pumps and fans in HVAC; ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV212HD55N4 Connection TERMINAL 2.5 MMA² / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)TERMINAL 150 MMA² KCMIL SIZE: 300 (L1/R, L2/S, L3/T) 1 RJ451 OPEN STYLE Control +/- 10 OF NOMINAL SLIP 0.2 TN TO TN Country of Origin CN Currency USD Display for DC bus energized 1 LED (red) Enclosure OPEN IP20 Environmental Conditions -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 13752.90 Gross Volume per Pack Metric 225368.77 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 93.7000 lb Gross Weight per Pack Metric 42.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 47.0000 in Height [Metric] 47.0000 cm Input 400/480 VAC 3-PHASE Input Voltage 380...480 V - 15...10 % Item Group 22158 Length 77.0000 in Length [Metric] 77.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737736&lang=en-us Number Of Phases 3 Output MAXIMUM OUTPUT VOLTAGE EQUAL TO INPUT VOLTAGE 3-PHASE Power Rating 1455 W Returnable Y Size SIZE 8A in Standard UL LISTED, CE MARKED, UL 1995 PLENUM-RATED, AHRI CERTIFIED Stock Status NONSTOCK Sub Brand ALTIVAR 212 Substitute Product Catalog Number VW3A1101 Type AC Drive UNSPSC 39122001 UPC 11 78590195627 UPC 12 785901956273 Warranty Description Contractual Warranty:18 months Width 50.0000 in Width [Metric] 50.0000 cm Asynchronous motors;Pumps and fans in HVAC; 116.0A 75HP
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV212HD55N4 |
| Application | Asynchronous motors;Pumps and fans in HVAC; |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV212HD55N4 |
| Connection | TERMINAL 2.5 MMA² / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)TERMINAL 150 MMA² KCMIL SIZE: 300 (L1/R, L2/S, L3/T) 1 RJ451 OPEN STYLE |
| Control | +/- 10 OF NOMINAL SLIP 0.2 TN TO TN |
| Country of Origin | CN |
| Currency | USD |
| Display | for DC bus energized 1 LED (red) |
| Enclosure | OPEN IP20 |
| Environmental Conditions | -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 13752.90 |
| Gross Volume per Pack Metric | 225368.77 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 93.7000 lb |
| Gross Weight per Pack Metric | 42.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 47.0000 in |
| Height [Metric] | 47.0000 cm |
| Input | 400/480 VAC 3-PHASE |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22158 |
| Length | 77.0000 in |
| Length [Metric] | 77.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737736&lang=en-us |
| Number Of Phases | 3 |
| Output | MAXIMUM OUTPUT VOLTAGE EQUAL TO INPUT VOLTAGE 3-PHASE |
| Power Rating | 1455 W |
| Returnable | Y |
| Size | SIZE 8A in |
| Standard | UL LISTED, CE MARKED, UL 1995 PLENUM-RATED, AHRI CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | ALTIVAR 212 |
| Substitute Product Catalog Number | VW3A1101 |
| Type | AC Drive |
| UNSPSC | 39122001 |
| UPC 11 | 78590195627 |
| UPC 12 | 785901956273 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 50.0000 in |
| Width [Metric] | 50.0000 cm |
| Asynchronous motors;Pumps and fans in HVAC; |
| 116.0A 75HP |
