Schneider Electric

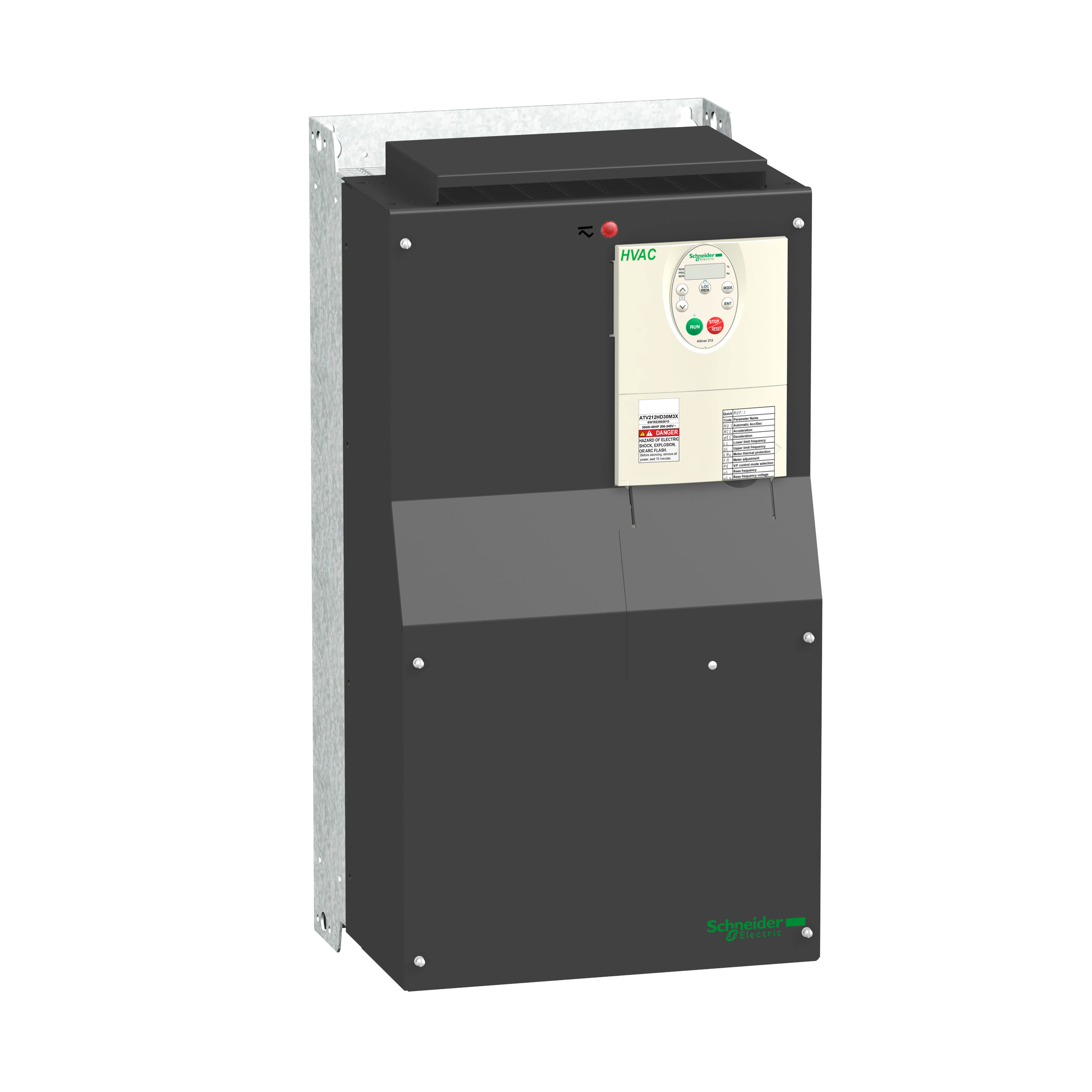

Schneider ElectricAltivar 212 ATV212HD30N4 Variable Speed Drive, 480 VAC, 58.5 A, 40 hp, 9.45 in W x 8.43 in D
Custom_Product_Images_Illustration
Schneider Electric
Schneider ElectricAltivar 212 ATV212HD30N4 Variable Speed Drive, 480 VAC, 58.5 A, 40 hp, 9.45 in W x 8.43 in D
SKU665101
MFGR #ATV212HD30N4
Your Cost: $3,709.20/ea
List: Schneider Electric ATV212HD30N4 SPEEDDRIVE 380-480VAC 40HP,ATV212,3 phases,30kW,400/480 Vac 3-Phase,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,pumps and fans in HVAC,Open IP20,Size 5A,variable speed drive
Schneider Electric ATV212HD30N4 SPEEDDRIVE 380-480VAC 40HP,ATV212,3 phases,30kW,400/480 Vac 3-Phase,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,pumps and fans in HVAC,Open IP20,Size 5A,variable speed drive
Alternate Catalog Number ATV212HD30N4 Amperage Rating 58.5 A Application Asynchronous motors;Pumps and fans in HVAC; ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV212HD30N4 Control +/- 10 OF NOMINAL SLIP 0.2 TN TO TN Country of Origin FR Currency USD Depth 8.43 in Display for DC bus energized 1 LED (red) Display Type LED Enclosure OPEN IP20 Enclosure Type Open/IP20/IP21/IP41 Environmental Conditions -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 5409.59 Gross Volume per Pack Metric 88646.95 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 47.4000 lb Gross Weight per Pack Metric 21.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 40.0000 in Height [Metric] 40.0000 cm Horsepower 40 hp Input Voltage 380...480 V - 15...10 % Item Group 22158 Length 53.0000 in Length [Metric] 53.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737730&lang=en-us Mounting Type Panel Number Of Phases 3 Power Rating 847 W Returnable Y Size 214 MM,240 MM,420 MM in Standard IP21 Stock Status NONSTOCK Sub Brand ATV212 Substitute Product Catalog Number VW3A1101 Type 3-Phase UNSPSC 39122001 UPC 11 78590192155 UPC 12 785901921554 Voltage Rating 400/480 VAC Warranty Description Contractual Warranty:18 months Width 40.0000 in Width [Metric] 40.0000 cm Asynchronous motors;Pumps and fans in HVAC; VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14;L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0;Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo);flux vector control without sensor, standard;voltage/frequency ratio, 5 points;voltage/frequency ratio - Energy Saving, quadratic U/f;voltage/frequency ratio, 2 points;Overheating protection drive;line supply undervoltage drive;against input phase loss drive;thermal protection motor;motor phase break motor;with PTC probes motor;thermal power stage drive;short-circuit between motor phases drive;input phase breaks drive;overcurrent between output phases and earth drive;overvoltages on the DC bus drive;break on the control circuit drive;against exceeding limit speed drive;line supply overvoltage and undervoltage drive;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection;internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection Maximum output voltage equal to input voltage 3-phase output
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV212HD30N4 |
| Amperage Rating | 58.5 A |
| Application | Asynchronous motors;Pumps and fans in HVAC; |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV212HD30N4 |
| Control | +/- 10 OF NOMINAL SLIP 0.2 TN TO TN |
| Country of Origin | FR |
| Currency | USD |
| Depth | 8.43 in |
| Display | for DC bus energized 1 LED (red) |
| Display Type | LED |
| Enclosure | OPEN IP20 |
| Enclosure Type | Open/IP20/IP21/IP41 |
| Environmental Conditions | -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 5409.59 |
| Gross Volume per Pack Metric | 88646.95 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 47.4000 lb |
| Gross Weight per Pack Metric | 21.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 40.0000 in |
| Height [Metric] | 40.0000 cm |
| Horsepower | 40 hp |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22158 |
| Length | 53.0000 in |
| Length [Metric] | 53.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737730&lang=en-us |
| Mounting Type | Panel |
| Number Of Phases | 3 |
| Power Rating | 847 W |
| Returnable | Y |
| Size | 214 MM,240 MM,420 MM in |
| Standard | IP21 |
| Stock Status | NONSTOCK |
| Sub Brand | ATV212 |
| Substitute Product Catalog Number | VW3A1101 |
| Type | 3-Phase |
| UNSPSC | 39122001 |
| UPC 11 | 78590192155 |
| UPC 12 | 785901921554 |
| Voltage Rating | 400/480 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 40.0000 in |
| Width [Metric] | 40.0000 cm |
| Asynchronous motors;Pumps and fans in HVAC; |
| VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14;L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0;Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo);flux vector control without sensor, standard;voltage/frequency ratio, 5 points;voltage/frequency ratio - Energy Saving, quadratic U/f;voltage/frequency ratio, 2 points;Overheating protection drive;line supply undervoltage drive;against input phase loss drive;thermal protection motor;motor phase break motor;with PTC probes motor;thermal power stage drive;short-circuit between motor phases drive;input phase breaks drive;overcurrent between output phases and earth drive;overvoltages on the DC bus drive;break on the control circuit drive;against exceeding limit speed drive;line supply overvoltage and undervoltage drive;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection;internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection |
| Maximum output voltage equal to input voltage 3-phase output |
