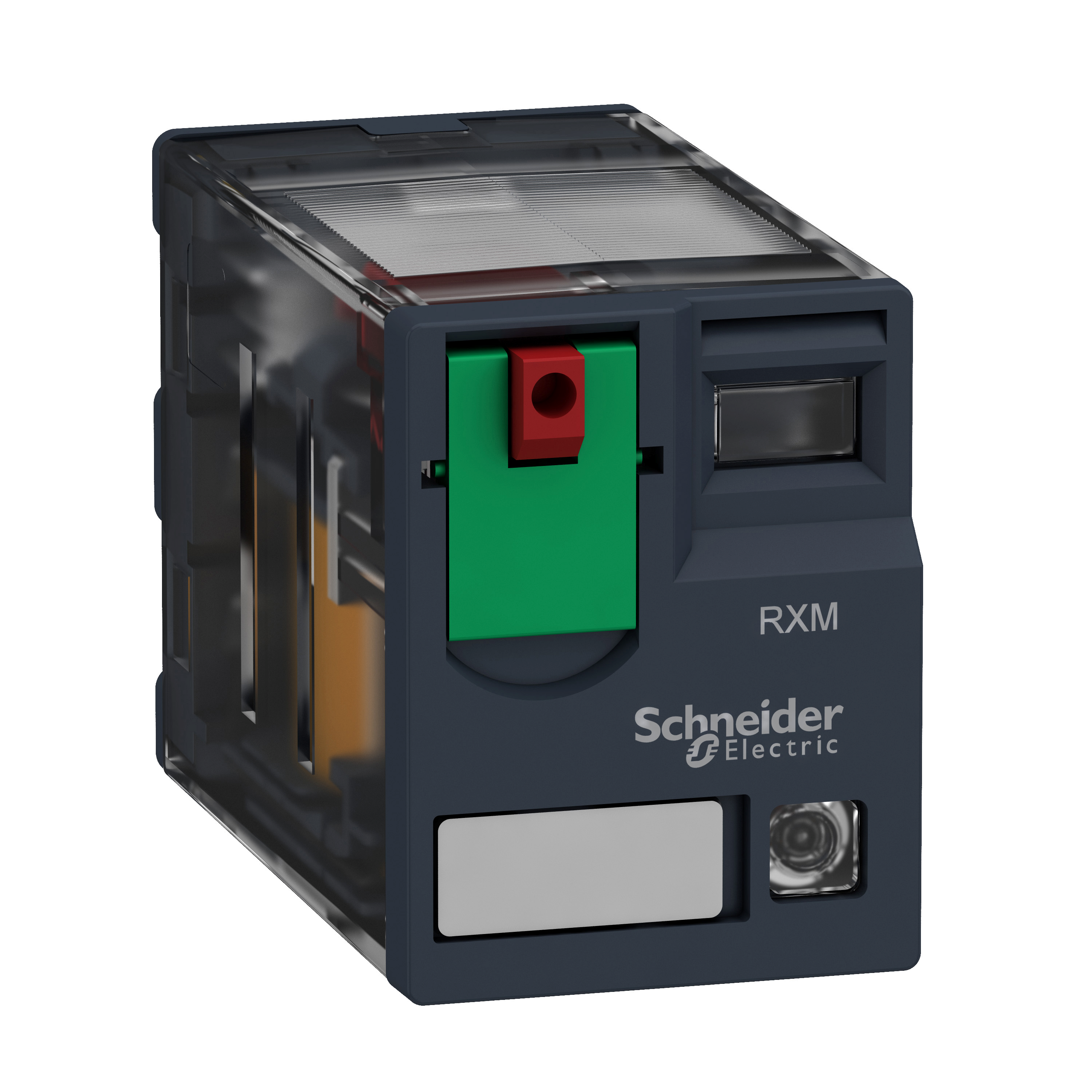

Schneider Electric Zelio RXM Miniature General Purpose Relay With LED, Test Button, Lock-Down Door, 10 A, 11 Pins, 120 VAC Coil
Custom_Product_Images_Illustration
Schneider Electric Zelio RXM Miniature General Purpose Relay With LED, Test Button, Lock-Down Door, 10 A, 11 Pins, 120 VAC Coil
SKU310107
MFGR #RXM3AB2F7
Your Cost: $8.46/ea
Schneider Electric RXM3AB2F7 PLUG-IN RELAY 250V 10A RXM +OPTIONS,-40...55 deg.C,10 A,120 V AC,3 C/O,3630 Ohm at 20 deg.C +/- 15 ,IEC, UL, CSA,IP40,Lo of 10,Miniature,plug-in relay,Plug-in,Zelio
Schneider Electric RXM3AB2F7 PLUG-IN RELAY 250V 10A RXM +OPTIONS,-40...55 deg.C,10 A,120 V AC,3 C/O,3630 Ohm at 20 deg.C +/- 15 ,IEC, UL, CSA,IP40,Lo of 10,Miniature,plug-in relay,Plug-in,Zelio
Alternate Catalog Number RXM3AB2F7 Amperage Rating 10 A 250 V AC-10 A 28 V DC,10 A 28 V DC) NO IEC-10 A 250 V AC) NO IEC-5 A 28 V DC) NC IEC-5 A 250 V AC) NC IEC-10 A 30 V DC) UL-10 A 277 V AC) UL A ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number RXM3AB2F7 Coil 120 V AC 50/60 Hz VAC Contact Configuration 3 C/O Country of Origin CN Currency USD Dimensions 4.6 in L x 0.83 in W x 1.2 in H Enclosure IP40 Enclosure Type IP40 EU RoHS Indicator Y Gross Volume Per Pack 1.41 Gross Volume per Pack Metric 23.11 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 37.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490075 Height 2.5000 in Height [Metric] 2.5000 cm Item Group 21127 Length 4.5000 in Length [Metric] 4.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=649658&lang=en-us Mounting PLUG-IN Operating Temperature -40-55 A°C Resistance 3630 OHM AT 20 °C +/- 15 Returnable Y Size 78.45 MM,79 MM Standard 10 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-5 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CE-ROHS-GOST-UL-LLOYD'S-REACH-CSA,IP40 EN/IEC 60529,UL 508-EN/IEC 61810-1-CSA C22.2 NO 14 Stock Status NONSTOCK Sub Brand RXM Substitute Product Catalog Number RXM021FP Temperature Rating -40 to 55 °C Type FLAT,PLUG-IN RELAY UNSPSC 39122326 UPC 11 78590164607 UPC 12 785901646075 Warranty Description Contractual Warranty:18 months Width 3.0000 in Width [Metric] 3.0000 cm ANY POSITION Test button with removable lock-down door for testing the contacts Green LED indication of relay status Mechanical indication of relay status Optional protection modules to protect against electrical spikes Bus jumpers for connecting multiple terminals reduce installation time Flat pin 250 VAC conforming to IEC, 300 VAC conforming to UL and 300 VAC conforming to CSA rated insulation voltage 170 mW at 10 mA, 17 V minimum and 2500 VA/280 W maximum switching capacity 10000000 cycles mechanical durability 20 ms operating and reset time 3630 Ohm at 20 deg C average resistance -40 to 131 deg F storage temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RXM3AB2F7 |
| Amperage Rating | 10 A 250 V AC-10 A 28 V DC,10 A 28 V DC) NO IEC-10 A 250 V AC) NO IEC-5 A 28 V DC) NC IEC-5 A 250 V AC) NC IEC-10 A 30 V DC) UL-10 A 277 V AC) UL A |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | RXM3AB2F7 |
| Coil | 120 V AC 50/60 Hz VAC |
| Contact Configuration | 3 C/O |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.6 in L x 0.83 in W x 1.2 in H |
| Enclosure | IP40 |
| Enclosure Type | IP40 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1.41 |
| Gross Volume per Pack Metric | 23.11 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 37.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490075 |
| Height | 2.5000 in |
| Height [Metric] | 2.5000 cm |
| Item Group | 21127 |
| Length | 4.5000 in |
| Length [Metric] | 4.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=649658&lang=en-us |
| Mounting | PLUG-IN |
| Operating Temperature | -40-55 A°C |
| Resistance | 3630 OHM AT 20 °C +/- 15 |
| Returnable | Y |
| Size | 78.45 MM,79 MM |
| Standard | 10 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-5 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CE-ROHS-GOST-UL-LLOYD'S-REACH-CSA,IP40 EN/IEC 60529,UL 508-EN/IEC 61810-1-CSA C22.2 NO 14 |
| Stock Status | NONSTOCK |
| Sub Brand | RXM |
| Substitute Product Catalog Number | RXM021FP |
| Temperature Rating | -40 to 55 °C |
| Type | FLAT,PLUG-IN RELAY |
| UNSPSC | 39122326 |
| UPC 11 | 78590164607 |
| UPC 12 | 785901646075 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.0000 in |
| Width [Metric] | 3.0000 cm |
| ANY POSITION |
| Test button with removable lock-down door for testing the contacts |
| Green LED indication of relay status |
| Mechanical indication of relay status |
| Optional protection modules to protect against electrical spikes |
| Bus jumpers for connecting multiple terminals reduce installation time |
| Flat pin |
| 250 VAC conforming to IEC, 300 VAC conforming to UL and 300 VAC conforming to CSA rated insulation voltage |
| 170 mW at 10 mA, 17 V minimum and 2500 VA/280 W maximum switching capacity |
| 10000000 cycles mechanical durability |
| 20 ms operating and reset time |
| 3630 Ohm at 20 deg C average resistance |
| -40 to 131 deg F storage temperature |
