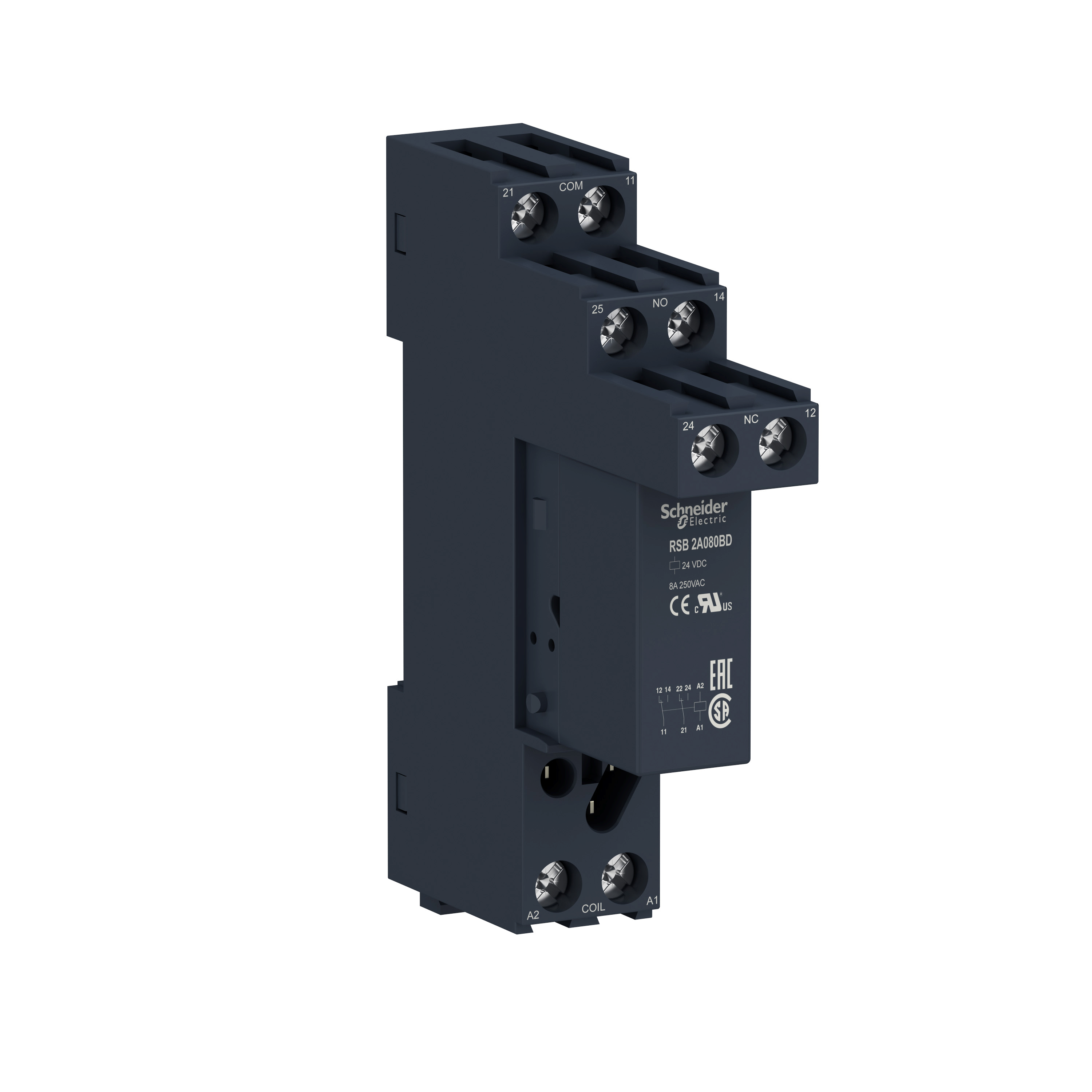

Schneider Electric Zelio RSB Plug-In Electromechanical Relay With Socket, 8 A, 2CO DPDT Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
Schneider Electric Zelio RSB Plug-In Electromechanical Relay With Socket, 8 A, 2CO DPDT Contact Form, 24 VDC Coil
SKU489916
MFGR #RSB2A080BDS
Your Cost: $12.19/ea
Schneider Electric RSB2A080BDS RELAY+SOCKET 250VAC 8A RSB,-40...70 deg.C (AC)--40...85 deg.C (DC),1440 Ohm (DC) at 20 deg.C +/- 10 ,2 C/O,interface relay,plug-in relay
Schneider Electric RSB2A080BDS RELAY+SOCKET 250VAC 8A RSB,-40...70 deg.C (AC)--40...85 deg.C (DC),1440 Ohm (DC) at 20 deg.C +/- 10 ,2 C/O,interface relay,plug-in relay
Alternate Catalog Number RSB2A080BDS Amperage Rating 8 A ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number RSB2A080BDS Coil 24 V DC Coil Voltage 24 VDC Contact Configuration 2 C/O Contact Form 2CO Contact Rating 8 A at 250 VAC Country of Origin FR Currency USD Dimensions 13.2 in L x 1.2 in W x 0.7 in H Enclosure Type IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 22.00 Gross Volume per Pack Metric 360.51 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 51.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410030 Height 3.1496 in Height [Metric] 7.5000 cm Item Group 21127 Length 13.3858 in Length [Metric] 34.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=648938&lang=en-us Mounting Type Plug-In Operating Temperature -40-70 A°C AC)--40-85 A°C DC) Power Rating 2000 VA Resistance 1440 OHM (DC) AT 20 °C +/- 10 Returnable Y Series RSB Standard +/- 1 MM 10-55 HZ)EN/IEC 60068-2-6,10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27-5 GN 11 MS) IN OPERATION EN/IEC 60068-2-27,CE,EN/IEC 61810-1-UL 508-CSA C22.2 NO 14,GOST-UL-CSA,IP40 EN/IEC 60529 Stock Status NORMALLY STOCKED Sub Brand RSB Substitute Product Catalog Number RSZE1S48M Temperature Rating -40 to 85 °C Type Electro-Mechanical UNSPSC 39122326 UPC 11 78590152615 UPC 12 785901526155 Warranty Description Contractual Warranty:18 months Width 3.9370 in Width [Metric] 10.5000 cm ANY POSITION Optional protection modules for protection against electrical transients Optional plastic hold down ejector clips Socket or printed circuit board installation options Flat pin 1440 Ohm at 20 deg C average resistance 400 VAC rated insulation voltage Silver alloy (AgNi) contact material 100 mA minimum switching current 250 VDC maximum switching voltage 3000000 cycles mechanical durability 20 ms operating and 10 ms reset time 2000 VA/224 W minimum and 2000 VA/224 W maximum switching capacity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RSB2A080BDS |
| Amperage Rating | 8 A |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | RSB2A080BDS |
| Coil | 24 V DC |
| Coil Voltage | 24 VDC |
| Contact Configuration | 2 C/O |
| Contact Form | 2CO |
| Contact Rating | 8 A at 250 VAC |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 13.2 in L x 1.2 in W x 0.7 in H |
| Enclosure Type | IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 22.00 |
| Gross Volume per Pack Metric | 360.51 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 51.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410030 |
| Height | 3.1496 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 21127 |
| Length | 13.3858 in |
| Length [Metric] | 34.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=648938&lang=en-us |
| Mounting Type | Plug-In |
| Operating Temperature | -40-70 A°C AC)--40-85 A°C DC) |
| Power Rating | 2000 VA |
| Resistance | 1440 OHM (DC) AT 20 °C +/- 10 |
| Returnable | Y |
| Series | RSB |
| Standard | +/- 1 MM 10-55 HZ)EN/IEC 60068-2-6,10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27-5 GN 11 MS) IN OPERATION EN/IEC 60068-2-27,CE,EN/IEC 61810-1-UL 508-CSA C22.2 NO 14,GOST-UL-CSA,IP40 EN/IEC 60529 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | RSB |
| Substitute Product Catalog Number | RSZE1S48M |
| Temperature Rating | -40 to 85 °C |
| Type | Electro-Mechanical |
| UNSPSC | 39122326 |
| UPC 11 | 78590152615 |
| UPC 12 | 785901526155 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.9370 in |
| Width [Metric] | 10.5000 cm |
| ANY POSITION |
| Optional protection modules for protection against electrical transients |
| Optional plastic hold down ejector clips |
| Socket or printed circuit board installation options |
| Flat pin |
| 1440 Ohm at 20 deg C average resistance |
| 400 VAC rated insulation voltage |
| Silver alloy (AgNi) contact material |
| 100 mA minimum switching current |
| 250 VDC maximum switching voltage |
| 3000000 cycles mechanical durability |
| 20 ms operating and 10 ms reset time |
| 2000 VA/224 W minimum and 2000 VA/224 W maximum switching capacity |
