Schneider Electric

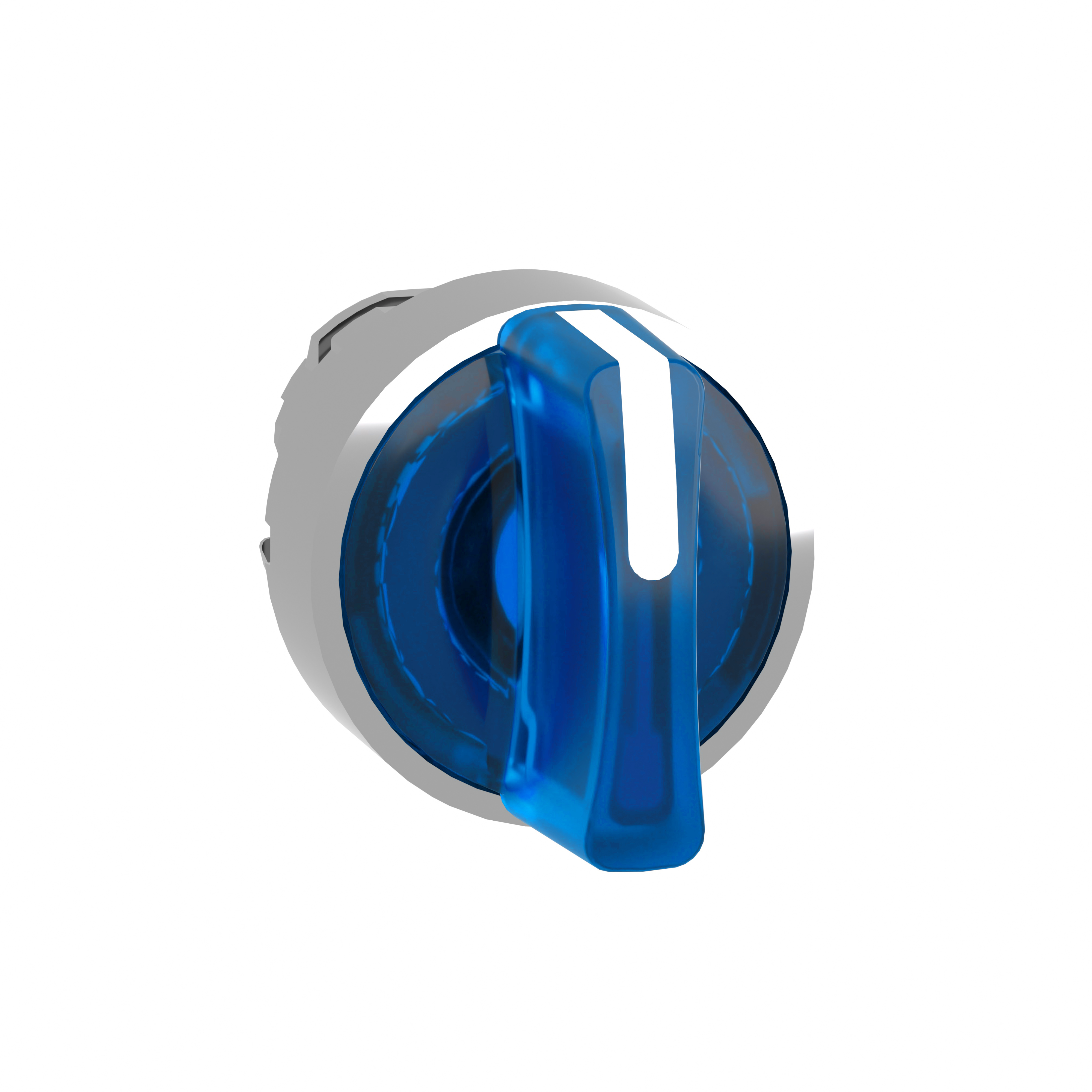

Schneider Electric ZB4BK1863 Heavy Duty Selector Switch Operator, 22 mm, Illuminated Operator, 3 Positions, Black
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric ZB4BK1863 Heavy Duty Selector Switch Operator, 22 mm, Illuminated Operator, 3 Positions, Black
SKU340473
MFGR #ZB4BK1863
Schneider Electric ZB4BK1863 3POS ILLUM SPRING RET SELECTOR BLUE RT,22 mm,illum select switch,Harmony XB4,IP 65,Illuminated Standard Knob 3 Position,NEMA 1/2/3/4/4X/13,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,blue,chromium plated metal,head for illuminated selector switch,head for illuminated selector switch,illum select switch,spring return right to centre
Schneider Electric ZB4BK1863 3POS ILLUM SPRING RET SELECTOR BLUE RT,22 mm,illum select switch,Harmony XB4,IP 65,Illuminated Standard Knob 3 Position,NEMA 1/2/3/4/4X/13,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,blue,chromium plated metal,head for illuminated selector switch,head for illuminated selector switch,illum select switch,spring return right to centre
Action SPRING RETURN RIGHT TO CENTRE Actuator Right to centre spring return;Blue standard handle;3 positions +/- 45° Alternate Catalog Number ZB4BK1863 Application Integral LED ARRA Compliant N Bezel|Housing Chromium Plated Metal Brand Schneider Electric Buy American Compliant N Catalog Number ZB4BK1863 Color Blue Contact Mode Maintained Country of Origin FR Currency USD Enclosure NEMA 13-NEMA 4X Enclosure Type NEMA 1/2/3/4/4X/13/IP65 Environmental Conditions IP 65 EU RoHS Indicator Y Gross Weight Per Pack 0.1800 lb Gross Weight per Pack Metric 80.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908160 Height 8.8000 in Height [Metric] 7.0000 cm Indicator BLUE Item Group 22468 Lamp Type LED Length 5.4000 in Length [Metric] 100.0000 cm Manufacturer Schneider Electric Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=657456&lang=en-us Mounting Type Front Number of Positions 3 Operating Temperature -40-70 A°C Operator Type Standard Knob/Spring Return Returnable N Series XB4 Size 22 mm Stock Status NONSTOCK Sub Brand ZB4 Temperature Rating -40 to 158 °F Terminal Type Screw/Clamp Throw 45 deg Right-Center Type Integral Illuminated Round UNSPSC 39122216 UPC 11 78590138230 UPC 12 785901382300 Warranty Description Contractual Warranty:18 months Width 3.4000 in Width [Metric] 26.5000 cm Integral LED CHROMIUM PLATED METAL,HEAD FOR ILLUMINATED SELECTOR SWITCH Standard handle button type 4-maximum number of contact block Round head 4 maximum number of contact blocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Action | SPRING RETURN RIGHT TO CENTRE |
Actuator | Right to centre spring return;Blue standard handle;3 positions +/- 45° |
Alternate Catalog Number | ZB4BK1863 |
Application | Integral LED |
ARRA Compliant | N |
Bezel|Housing | Chromium Plated Metal |
Brand | Schneider Electric |
Buy American Compliant | N |
Catalog Number | ZB4BK1863 |
Color | Blue |
Contact Mode | Maintained |
Country of Origin | FR |
Currency | USD |
Enclosure | NEMA 13-NEMA 4X |
Enclosure Type | NEMA 1/2/3/4/4X/13/IP65 |
Environmental Conditions | IP 65 |
EU RoHS Indicator | Y |
Gross Weight Per Pack | 0.1800 lb |
Gross Weight per Pack Metric | 80.00 |
Gross Weight UOM Metric | g |
Harmonization Tariff Schedule Code | 8538908160 |
Height | 8.8000 in |
Height [Metric] | 7.0000 cm |
Indicator | BLUE |
Item Group | 22468 |
Lamp Type | LED |
Length | 5.4000 in |
Length [Metric] | 100.0000 cm |
Manufacturer | Schneider Electric |
Material | Chromium plated metal |
Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=657456&lang=en-us |
Mounting Type | Front |
Number of Positions | 3 |
Operating Temperature | -40-70 A°C |
Operator Type | Standard Knob/Spring Return |
Returnable | N |
Series | XB4 |
Size | 22 mm |
Stock Status | NONSTOCK |
Sub Brand | ZB4 |
Temperature Rating | -40 to 158 °F |
Terminal Type | Screw/Clamp |
Throw | 45 deg Right-Center |
Type | Integral Illuminated Round |
UNSPSC | 39122216 |
UPC 11 | 78590138230 |
UPC 12 | 785901382300 |
Warranty Description | Contractual Warranty:18 months |
Width | 3.4000 in |
Width [Metric] | 26.5000 cm |
Integral LED |
CHROMIUM PLATED METAL,HEAD FOR ILLUMINATED SELECTOR SWITCH |
Standard handle button type |
4-maximum number of contact block |
Round head |
4 maximum number of contact blocks |
