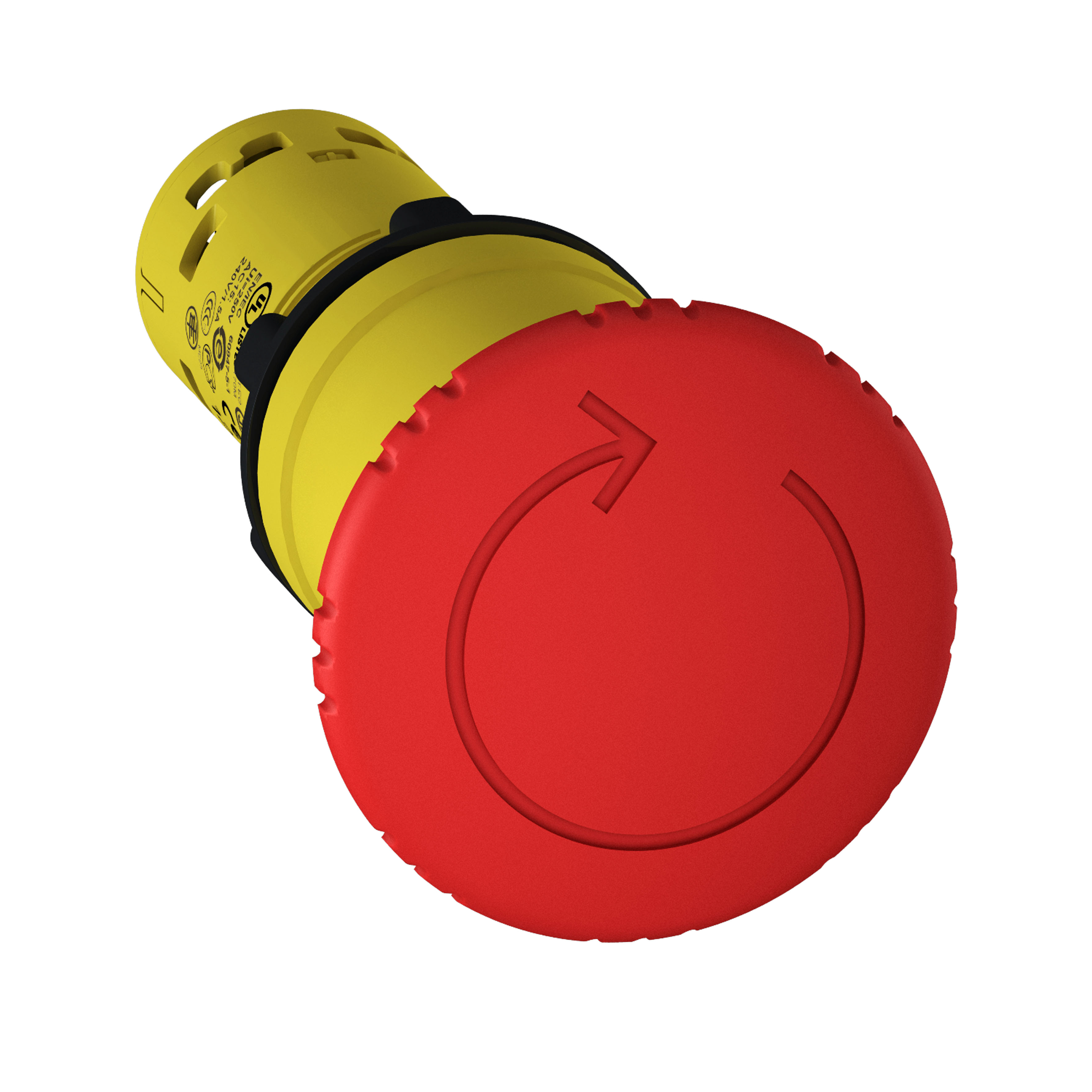

Schneider Electric XB7NS8442 Harmony™ XB7 Emergency Stop Round Monolithic Pushbutton, 22 mm, 1NC, Snap Action Contact, Red
Pilot Devices
971911
MFG #: XB7NS8442
Schneider Electric
70.83000
/ ea
Schneider Electric XB7NS8442 ESTOP TTR 1N/C,1 NC,22 mm,Harmony XB7,emergency stop monolithic push-button,emergency stop monolithic push-button,mechanical latching,snap action,turn to release
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=12029373360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_ZBRM22_Catalog.pdf(Catalog URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XB7NS8442-3d.stp(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_UN4P2MZLGBX7SV3I.pdf(Service Manual URL)
- Spec Sheet URL - 11003_9O0REYF6DPXN4VGM.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_S2U9M3DHNYOACZWL.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_EHC8M2TDYS5FPBLQ.pdf(Tech Drawing URL)
- Service Manual URL - 11003_SNJ5HY8L9UOP4CGZ.pdf(Service Manual URL)
- Features
| EMERGENCY STOP PUSH-BUTTON |
| Round shape of signaling unit head |
| Turn to release reset |
| Standard contacts usage |
| With positive opening |
| 10000000 cycles mechanical durability |
| 0.8 to 1.2 N-m tightening torque |
| 4 kV rated impulse withstand voltage |
| 5 gn (2 to 500 Hz) vibration resistance |
| 15 gn (duration=11 ms) shock resistance |
| 1.57 in H x 1.57 in W x 2.83 in D product dimension |
