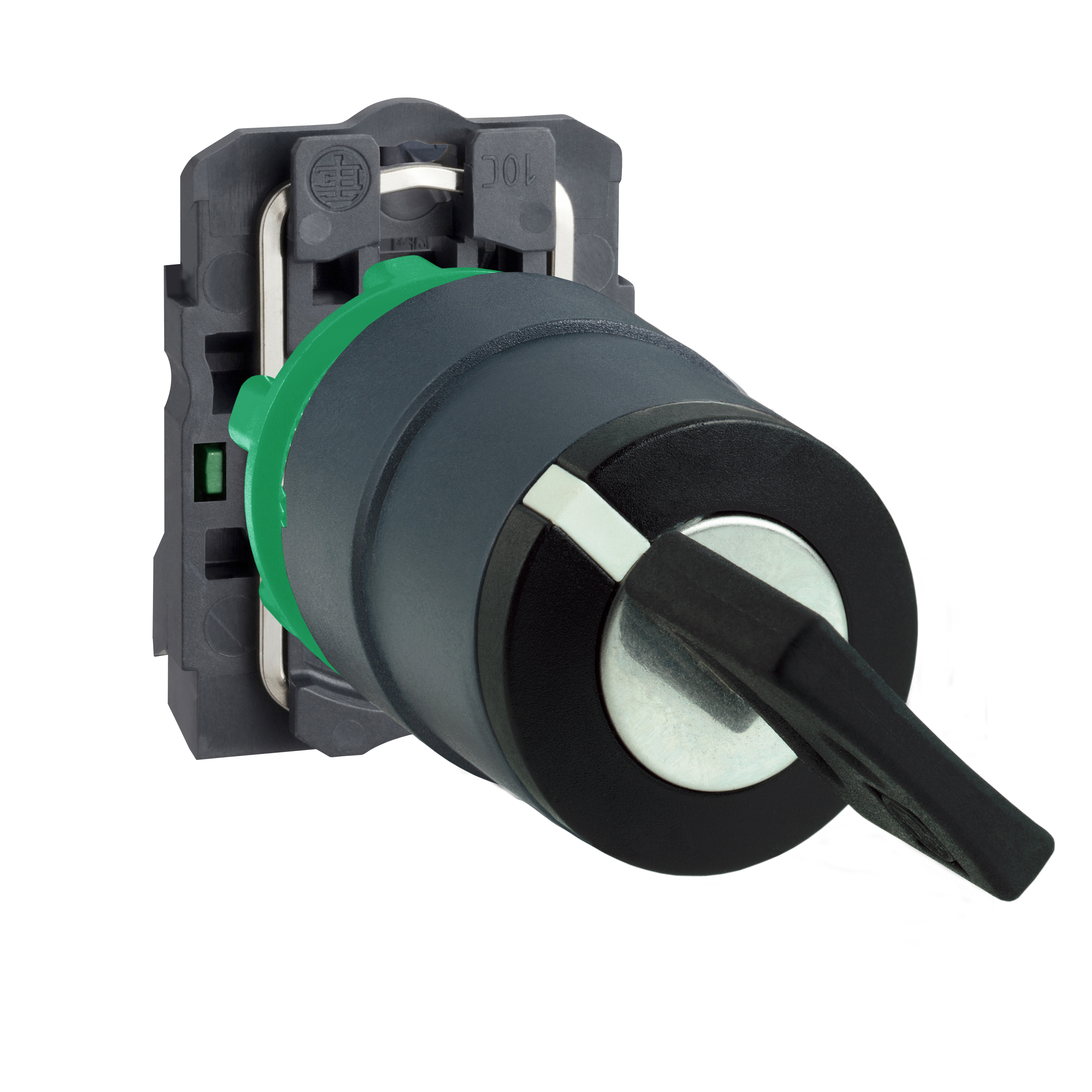

Schneider Electric XB5AG41 SELECTOR SWITCH 230VAC
Custom_Product_Images_Illustration
Schneider Electric XB5AG41 SELECTOR SWITCH 230VAC
SKU165522
MFGR #XB5AG41
Call For Price
List: Schneider Electric XB5AG41 SELECTOR SWITCH 230VAC 2AMP XB5 +OPTIONS,1 NO,10A,22mm Round,AC15 - DC13,Harmony,Maintained,NEMA 4/4X/13,Non-Illuminated Selector Switch,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Schneider Electric XB5AG41 SELECTOR SWITCH 230VAC 2AMP XB5 +OPTIONS,1 NO,10A,22mm Round,AC15 - DC13,Harmony,Maintained,NEMA 4/4X/13,Non-Illuminated Selector Switch,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Action SLOW-BREAK Actuator stay put;Black key switch;2 positions 90° Alternate Catalog Number XB5AG41 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number XB5AG41 Connection Screw Clamp Connection Type Plug-In Contact Mode Maintained/Stay Put Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin FR Currency USD Enclosure NEMA 4/4X/13 Enclosure Type NEMA 4/4X/13/IP66/IP69K Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Volume Per Pack 8.40 Gross Volume per Pack Metric 137.65 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8300 lb Gross Weight per Pack Metric 82.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509025 Height 3.7000 in Height [Metric] 3.7000 cm Insulation 600 V 3)EN 60947-1 Item Group 22467 Length 9.1000 in Length [Metric] 9.1000 cm Material Dark grey plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=669896&lang=en-us Model selector switch Number of Positions 2 Operating Temperature -40-70 A°C Returnable Y Series XB5 Standard UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED Sub Brand HARMONY Substitute Product Catalog Number ZBYLEG503001 Terminal Type Screw/Clamp Throw 90 ° Type Corrosion-Resistant Dusttight/Oiltight/Watertight Modular Round UNSPSC 39122216 Warranty Description Contractual Warranty:18 months Width 5.5000 in Width [Metric] 5.5000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Black Contact Configuration 1NO Contact Type Slow Break Operator Type 455 Key Size 22 mm PLASTIC,SELECTOR SWITCH Combines simplicity of setup and flexibility Requiring good-resistance to chemical agents and/or double electrical insulation
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | stay put;Black key switch;2 positions 90° |
| Alternate Catalog Number | XB5AG41 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | XB5AG41 |
| Connection | Screw Clamp |
| Connection Type | Plug-In |
| Contact Mode | Maintained/Stay Put |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | FR |
| Currency | USD |
| Enclosure | NEMA 4/4X/13 |
| Enclosure Type | NEMA 4/4X/13/IP66/IP69K |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 8.40 |
| Gross Volume per Pack Metric | 137.65 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8300 lb |
| Gross Weight per Pack Metric | 82.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 3.7000 in |
| Height [Metric] | 3.7000 cm |
| Insulation | 600 V 3)EN 60947-1 |
| Item Group | 22467 |
| Length | 9.1000 in |
| Length [Metric] | 9.1000 cm |
| Material | Dark grey plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=669896&lang=en-us |
| Model | selector switch |
| Number of Positions | 2 |
| Operating Temperature | -40-70 A°C |
| Returnable | Y |
| Series | XB5 |
| Standard | UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED |
| Sub Brand | HARMONY |
| Substitute Product Catalog Number | ZBYLEG503001 |
| Terminal Type | Screw/Clamp |
| Throw | 90 ° |
| Type | Corrosion-Resistant Dusttight/Oiltight/Watertight Modular Round |
| UNSPSC | 39122216 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.5000 in |
| Width [Metric] | 5.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | 455 Key |
| Size | 22 mm |
| PLASTIC,SELECTOR SWITCH |
| Combines simplicity of setup and flexibility |
| Requiring good-resistance to chemical agents and/or double electrical insulation |
