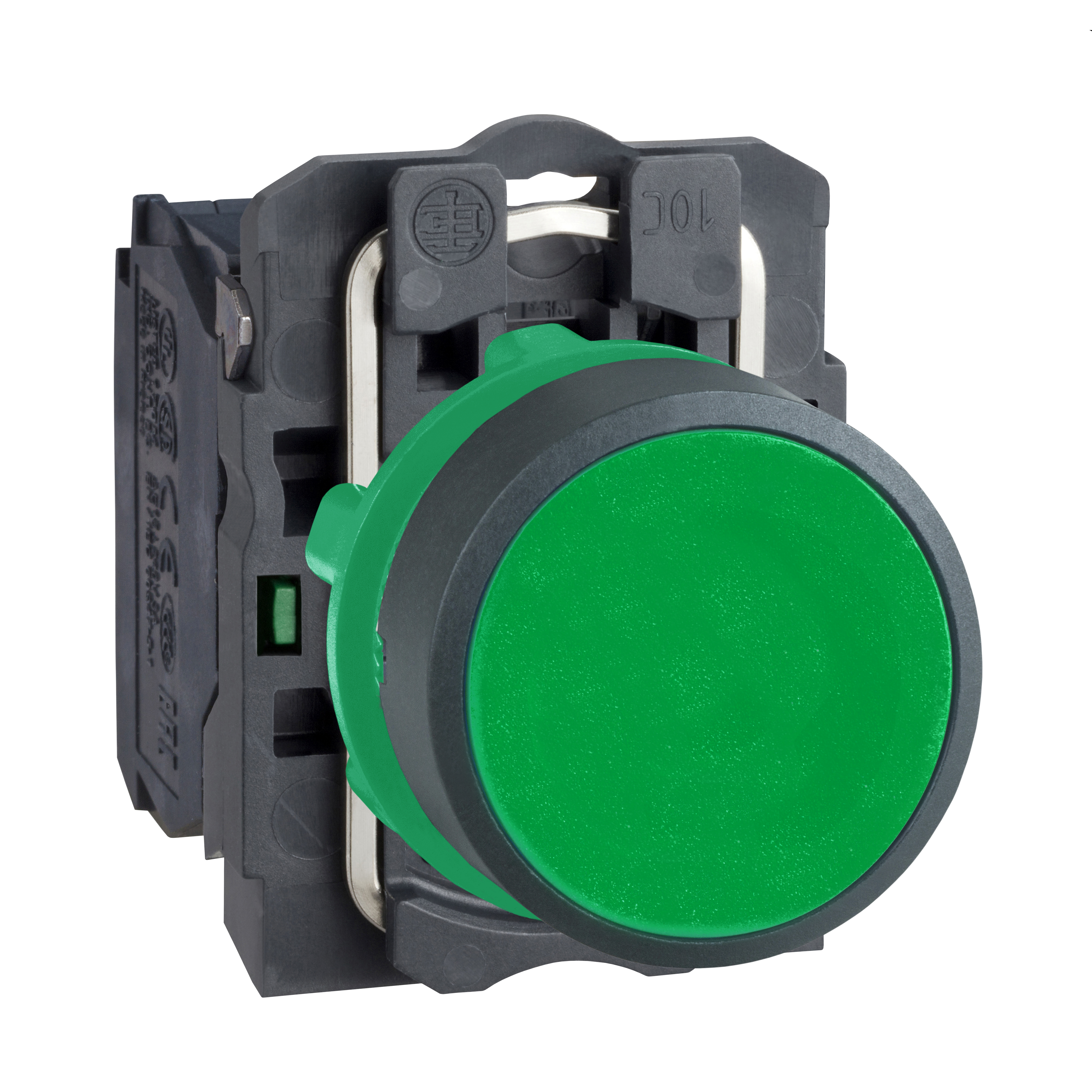

Schneider Electric XB5AA31 Non-Illuminated Pushbutton, 22 mm, 1NO, Spring Return/Flush Operator, Green
Custom_Product_Images_Illustration
Schneider Electric XB5AA31 Non-Illuminated Pushbutton, 22 mm, 1NO, Spring Return/Flush Operator, Green
SKU98188
MFGR #XB5AA31
Call For Price
List: Schneider Electric XB5AA31 PUSHBUTTON 230VAC 2AMP XB5 +OPTIONS,1 NO,10A,22mm Round,AC15 - DC13,Green,Harmony,Momentary,NEMA 4/4X/13,Non-Illuminated,Non-Illuminated Pushbutton,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Schneider Electric XB5AA31 PUSHBUTTON 230VAC 2AMP XB5 +OPTIONS,1 NO,10A,22mm Round,AC15 - DC13,Green,Harmony,Momentary,NEMA 4/4X/13,Non-Illuminated,Non-Illuminated Pushbutton,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Action SLOW-BREAK Actuator spring return;Green flush, unmarked Alternate Catalog Number XB5AA31 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Plastic Brand Schneider Electric Buy American Compliant N Catalog Number XB5AA31 Color Green Contact Configuration 1NO Contact Mode Momentary Contact Rating 10 A at 600 VAC Country of Origin FR Currency USD Enclosure NEMA 4/4X/13 Enclosure Type NEMA 1/2/3/4/4X/12/13/IP65 Environmental Conditions -40 to 158 deg F Operating/Storage EU RoHS Indicator Y Gross Volume Per Pack 10.78 Gross Volume per Pack Metric 176.65 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3560 lb Gross Weight per Pack Metric 36.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 3.5000 in Height [Metric] 3.5000 cm Indicator GREEN Insulation 600 V 3)EN/IEC 60947-1 Item Group 22467 Length 8.5000 in Length [Metric] 8.5000 cm Manufacturer Schneider Electric Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=669964&lang=en-us Model push-button Mounting Type Panel Operating Temperature -40-70 A°C Operator Type Flush/Spring Return Returnable Y Series XB5 Size 22 mm Standard UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED Standards EN/IEC 60947-160947-5-460947-5-560947-5-1JIS C 4520UL 508CSA C22.2 No. 14RoHS Compliant Stock Status NORMALLY STOCKED Sub Brand XB5 Substitute Product Catalog Number ZB5AZ009 Terminal Type Screw/Clamp Type PUSH-BUTTON UNSPSC 39122216 Upsell Product Catalog Number XB5RFB01 Warranty Description Contractual Warranty:18 months Width 5.5000 in Width [Metric] 5.5000 cm NON-ILLUMINATED Single operator Slow-break contact operation 600 V rated insulation voltage Silver alloy contacts Watertight, dusttight and corrosion resistant (indoor/outdoor) 5 gn 2 - 500 Hz vibration resistance, 30 gn shock resistance or half sine wave acceleration conforming to IEC 60068-2-2750 gn shock resistance for half sine wave acceleration conforming to IEC 60068-2-27 7.2 in L x 5.9 in W x 5.5 in H Round actuator
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Green flush, unmarked |
| Alternate Catalog Number | XB5AA31 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XB5AA31 |
| Color | Green |
| Contact Configuration | 1NO |
| Contact Mode | Momentary |
| Contact Rating | 10 A at 600 VAC |
| Country of Origin | FR |
| Currency | USD |
| Enclosure | NEMA 4/4X/13 |
| Enclosure Type | NEMA 1/2/3/4/4X/12/13/IP65 |
| Environmental Conditions | -40 to 158 deg F Operating/Storage |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10.78 |
| Gross Volume per Pack Metric | 176.65 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3560 lb |
| Gross Weight per Pack Metric | 36.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 3.5000 in |
| Height [Metric] | 3.5000 cm |
| Indicator | GREEN |
| Insulation | 600 V 3)EN/IEC 60947-1 |
| Item Group | 22467 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Manufacturer | Schneider Electric |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=669964&lang=en-us |
| Model | push-button |
| Mounting Type | Panel |
| Operating Temperature | -40-70 A°C |
| Operator Type | Flush/Spring Return |
| Returnable | Y |
| Series | XB5 |
| Size | 22 mm |
| Standard | UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED |
| Standards | EN/IEC 60947-160947-5-460947-5-560947-5-1JIS C 4520UL 508CSA C22.2 No. 14RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | XB5 |
| Substitute Product Catalog Number | ZB5AZ009 |
| Terminal Type | Screw/Clamp |
| Type | PUSH-BUTTON |
| UNSPSC | 39122216 |
| Upsell Product Catalog Number | XB5RFB01 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.5000 in |
| Width [Metric] | 5.5000 cm |
| NON-ILLUMINATED |
| Single operator |
| Slow-break contact operation |
| 600 V rated insulation voltage |
| Silver alloy contacts |
| Watertight, dusttight and corrosion resistant (indoor/outdoor) |
| 5 gn 2 - 500 Hz vibration resistance, 30 gn shock resistance or half sine wave acceleration conforming to IEC 60068-2-2750 gn shock resistance for half sine wave acceleration conforming to IEC 60068-2-27 |
| 7.2 in L x 5.9 in W x 5.5 in H |
| Round actuator |
