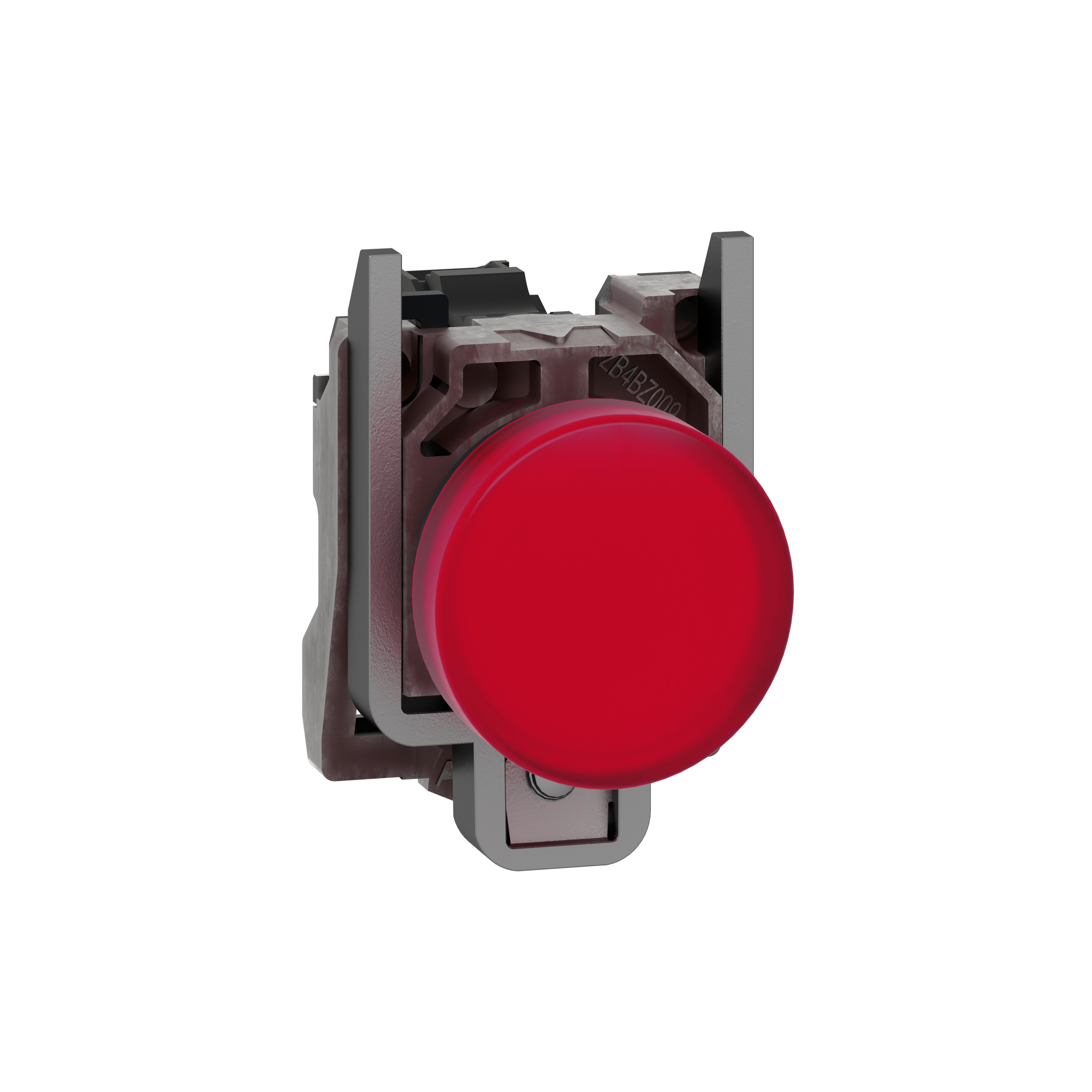

Schneider Electric XB4BVG4 Harmony™ XB4 Pilot Light, 110 to 120 VAC/VDC, 14 mA, Plain Lens, Panel Mount
Pilot Lights
98131
MFG #: XB4BVG4
Schneider Electric
78.71000
/ ea
Schneider Electric XB4BVG4 PUSH BUTTON LIGHT MODULE 120V 22MM XB4,22mm Round,AC15 - DC13,Harmony,NEMA 4/4X/13,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
- 360 Degree View URL - index.html?pid=11003&id=8018576360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=XB4BVG4(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - Harmony_XB4BV63_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_VD4QFZ26N5SYLJXW.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2308026_V2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_0XN15WKGRLFO863B.pdf(Spec Sheet URL)
- Tech Drawing URL - e8d33a91a9837d2ecfa7f711054af5f9d5212b83.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/kSLYD1dXJVc(Video)
- Features
| WITH PLAIN LENS |
| 50/60 Hz frequency |
| (X1-X2)PL terminals description |
| 7000000 Pa at 55 deg C, 0.1 m distance resistance to high pressure washer |
| 250 VAC conforming to EN 60947-1 rated insulation voltage |
| 4 kV conforming to EN 60947-1 rated impulse withstand voltage |
| Steady signal |
| TH protective treatment |
| Class I conforming to IEC 60536 electrical shock protection class |
| 5 gn (12 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance |
| 30 gn (duration = 18 ms) and 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
| 3 pollution deg |
| 2 kV conforming to IEC 61000-4-4 resistance to fast transients |
| 10 V/m conforming to IEC 61000-4-3 resistance to electromagnetic fields |
| 6 kV on contact (on metal parts) and 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 resistance to electrostatic discharge |
| Class B conforming to IEC 55011 electromagnetic emission |
| Withstand 1 kV conforming to IEC 61000-4-5 surge |
| 100 to 132 VAC supply voltage limits |
| 47 mm H x 30 mm W x 54 mm D dimension |
| Integral LED bulb base |
| 100000 hr at rated voltage and 25 deg C service life |
