Schneider Electric

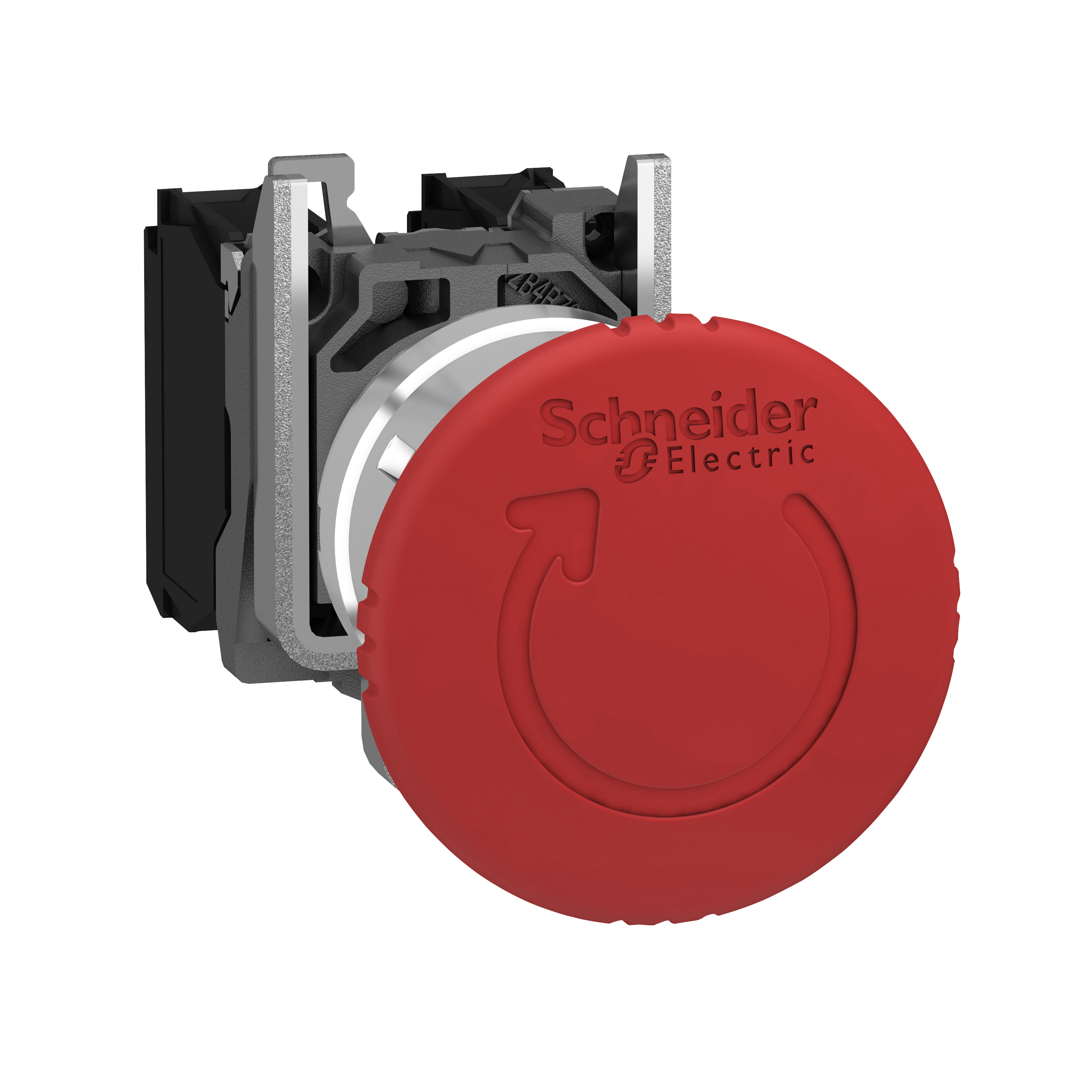

Schneider Electric XB4BS8444 Harmony™ XB4 Emergency Stop Non-Illuminated Round Pushbutton, 22 mm, 2NC, Red
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric XB4BS8444 Harmony™ XB4 Emergency Stop Non-Illuminated Round Pushbutton, 22 mm, 2NC, Red
SKU644513
MFGR #XB4BS8444
Your Cost: $120.27/ea
Schneider Electric XB4BS8444 TRIGGER E-STOP,10A,2 NC,22mm Round,AC15 - DC13,Harmony,Maintained - Trigger Action - Turn-to-Release,NEMA 4/4X/13,Non-Illuminated,Non-Illuminated Pushbutton,Red,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Schneider Electric XB4BS8444 TRIGGER E-STOP,10A,2 NC,22mm Round,AC15 - DC13,Harmony,Maintained - Trigger Action - Turn-to-Release,NEMA 4/4X/13,Non-Illuminated,Non-Illuminated Pushbutton,Red,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor)
Action SLOW-BREAK Actuator trigger action and mechanical latching;Red mushroom Ø 40 mm, unmarked Alternate Catalog Number XB4BS8444 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Chromium Plated Metal Brand Schneider Electric Buy American Compliant N Catalog Number XB4BS8444 Color Red Connection Screw Clamp Connection Type Screw Clamp Contact Configuration 2NC Contact Mode Maintained Contact Rating 1.2 A at 600 VAC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 4/4X/13 Enclosure Type NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 Environmental Conditions -13 to 158 deg F Operating EU RoHS Indicator Y Gross Volume Per Pack 12.50 Gross Volume per Pack Metric 204.84 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1750 lb Gross Weight per Pack Metric 133.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 4.7000 in Height [Metric] 4.7000 cm Indicator Red Insulation 600 V 3)EN 60947-1 Item Group 22468 Legend Emergency Stop Length 9.4000 in Length [Metric] 9.4000 cm Manufacturer Schneider Electric Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=670138&lang=en-us Mounting Type Panel Operating Temperature -40-70 A°C Operator Type Mechanical Latching/Turn to Release/Trigger Action Returnable Y Series XB4 Size 22 mm Standard UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED Stock Status NORMALLY STOCKED Sub Brand HARMONY Substitute Product Catalog Number ZB4BZ009 Terminal Type Screw/Clamp Type Emergency Stop Non-Illuminated Round UNSPSC 39122216 UPC 11 78590194228 UPC 12 785901942283 Upsell Product Catalog Number XB4RFB01 Warranty Description Contractual Warranty:18 months Width 5.5000 in Width [Metric] 5.5000 cm NON-ILLUMINATED Red mushroom 40 mm Dia unmarked operator profile Round shape of signaling unit head Turn to release reset 47 mm H x 40 mm W x 82 mm D product dimension Standard contacts usage With positive opening 300000 cycles mechanical durability 0.8 to 1.2 N-m tightening torque 6 kV rated impulse withstand voltage 5 gn (2 to 500 Hz) vibration resistance 30 gn (duration =18 ms), 50 gn (duration =11 ms) shock resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | trigger action and mechanical latching;Red mushroom Ø 40 mm, unmarked |
| Alternate Catalog Number | XB4BS8444 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Chromium Plated Metal |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XB4BS8444 |
| Color | Red |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Contact Configuration | 2NC |
| Contact Mode | Maintained |
| Contact Rating | 1.2 A at 600 VAC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 4/4X/13 |
| Enclosure Type | NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 |
| Environmental Conditions | -13 to 158 deg F Operating |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 12.50 |
| Gross Volume per Pack Metric | 204.84 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1750 lb |
| Gross Weight per Pack Metric | 133.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.7000 in |
| Height [Metric] | 4.7000 cm |
| Indicator | Red |
| Insulation | 600 V 3)EN 60947-1 |
| Item Group | 22468 |
| Legend | Emergency Stop |
| Length | 9.4000 in |
| Length [Metric] | 9.4000 cm |
| Manufacturer | Schneider Electric |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=670138&lang=en-us |
| Mounting Type | Panel |
| Operating Temperature | -40-70 A°C |
| Operator Type | Mechanical Latching/Turn to Release/Trigger Action |
| Returnable | Y |
| Series | XB4 |
| Size | 22 mm |
| Standard | UL LISTED FILE NUMBER E164353 CCN NKCR - CSA CERTIFIED FILE NUMBER LR44087 CLASS 321103 - CE MARKED |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | HARMONY |
| Substitute Product Catalog Number | ZB4BZ009 |
| Terminal Type | Screw/Clamp |
| Type | Emergency Stop Non-Illuminated Round |
| UNSPSC | 39122216 |
| UPC 11 | 78590194228 |
| UPC 12 | 785901942283 |
| Upsell Product Catalog Number | XB4RFB01 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.5000 in |
| Width [Metric] | 5.5000 cm |
| NON-ILLUMINATED |
| Red mushroom 40 mm Dia unmarked operator profile |
| Round shape of signaling unit head |
| Turn to release reset |
| 47 mm H x 40 mm W x 82 mm D product dimension |
| Standard contacts usage |
| With positive opening |
| 300000 cycles mechanical durability |
| 0.8 to 1.2 N-m tightening torque |
| 6 kV rated impulse withstand voltage |
| 5 gn (2 to 500 Hz) vibration resistance |
| 30 gn (duration =18 ms), 50 gn (duration =11 ms) shock resistance |
