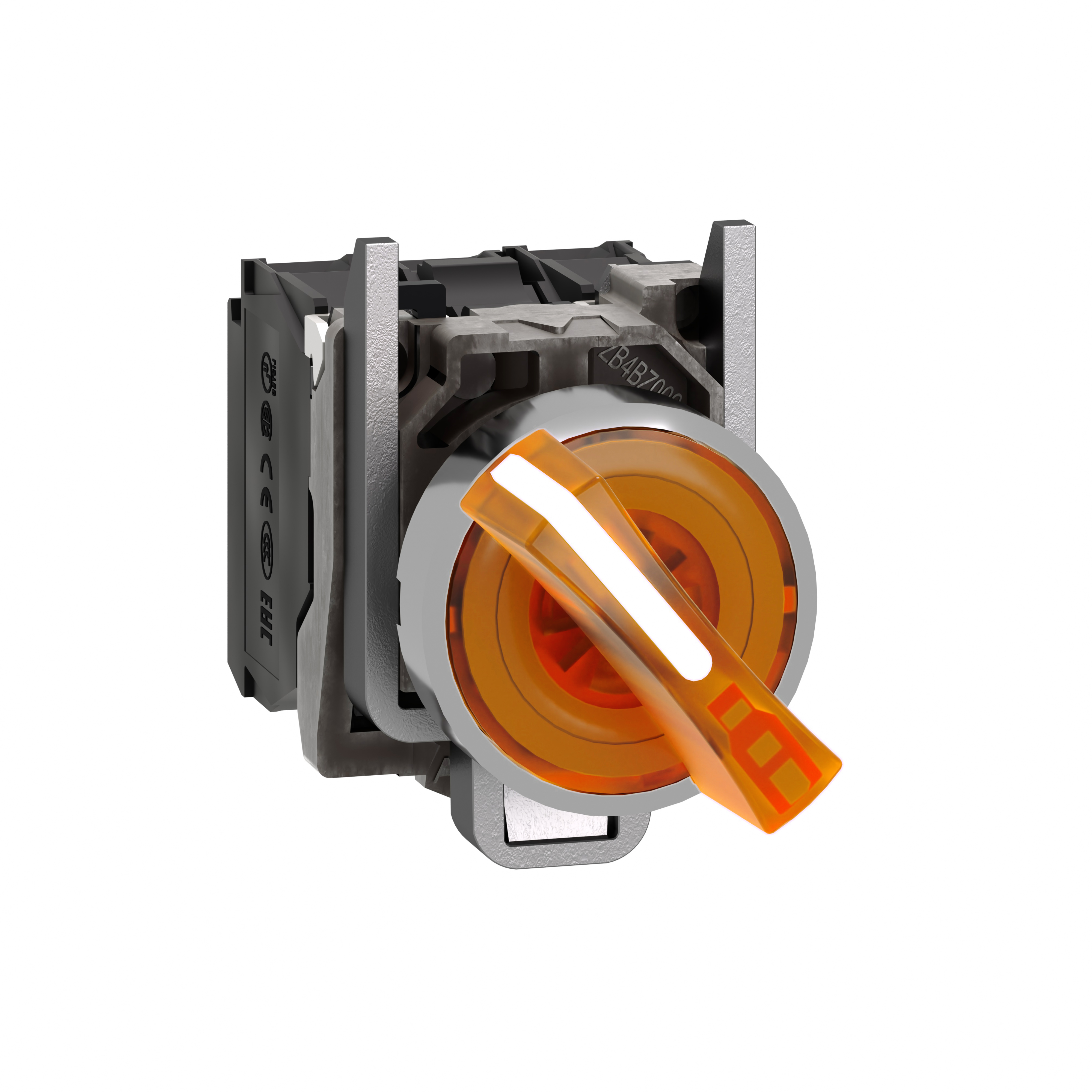

Schneider Electric XB4BK125B5 GR ILL 2 POS SSW/24V
Custom_Product_Images_Illustration
Schneider Electric XB4BK125B5 GR ILL 2 POS SSW/24V
SKU399039
MFGR #XB4BK125B5
Your Cost: $102.34/ea
List: Schneider Electric XB4BK125B5 GR ILL 2 POS SSW/24VAC LED & BODY YELLOW,1 NO + 1 NC,22 mm,24 V AC/DC, 50/60 Hz,Harmony XB4,chromium plated metal,complete illuminated selector switch,complete illuminated selector switch,integral LED,protected LED,slow-break,stay put
Schneider Electric XB4BK125B5 GR ILL 2 POS SSW/24VAC LED & BODY YELLOW,1 NO + 1 NC,22 mm,24 V AC/DC, 50/60 Hz,Harmony XB4,chromium plated metal,complete illuminated selector switch,complete illuminated selector switch,integral LED,protected LED,slow-break,stay put
Action SLOW-BREAK Actuator stay put;Orange standard handle;2 positions 90° Alternate Catalog Number XB4BK125B5 Amperage Rating 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1-6 A 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number XB4BK125B5 Contact Mode Maintained/Latched/Stay Put Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin FR Currency USD Enclosure NEMA 13-NEMA 4X Enclosure Type NEMA 4X/13/IP69/IP67/IP66/IP69K/IK06 Environmental Conditions -40 to 158 deg F Operating Temperature EU RoHS Indicator Y Gross Volume Per Pack 10.00 Gross Volume per Pack Metric 163.87 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 110.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 1.5748 in Height [Metric] 3.9000 cm Illumination Type Protected LED Indicator INTEGRAL LED,PROTECTED LED Insulation 600 V 3)EN 60947-1 Item Group 22468 Lamp Type LED Length 3.5433 in Length [Metric] 9.2000 cm Material Zamak Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=670242&lang=en-us Mounting Type Panel Number of Positions 2 Operating Temperature -40-70 A°C Returnable N Series XB4 Sub Brand XB4 Substitute Product Catalog Number ZB4BZ009 Terminal Type Screw/Clamp Throw 90 ° Type Illuminated selector switch UNSPSC 39122216 UPC 11 78590162425 UPC 12 785901624257 Upsell Product Catalog Number XB4RFA02 Voltage Rating 24 V AC/DC 50/60 HZ Warranty Description Contractual Warranty:18 months Width 1.9685 in Width [Metric] 5.4000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Orange Contact Configuration 1NO-1NC Contact Type Slow Break Operator Type Standard Handle Size 22 mm CHROMIUM PLATED METAL,COMPLETE ILLUMINATED SELECTOR SWITCH Metal bezel, simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists Designed to fit in a standard 22 mm cutout, ensuring compatibility when installing in pre-existing machinery High performance international standards and certifications (marine certification) Wide range of operating temperatures from -40 to 70 deg C allows versatility in usage of product Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine 1.2 A at 600 VAC, 3 A at 240 VAC, 6 A at 120 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC contact ratings
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | stay put;Orange standard handle;2 positions 90° |
| Alternate Catalog Number | XB4BK125B5 |
| Amperage Rating | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1-6 A 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | XB4BK125B5 |
| Contact Mode | Maintained/Latched/Stay Put |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | FR |
| Currency | USD |
| Enclosure | NEMA 13-NEMA 4X |
| Enclosure Type | NEMA 4X/13/IP69/IP67/IP66/IP69K/IK06 |
| Environmental Conditions | -40 to 158 deg F Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10.00 |
| Gross Volume per Pack Metric | 163.87 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 110.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 1.5748 in |
| Height [Metric] | 3.9000 cm |
| Illumination Type | Protected LED |
| Indicator | INTEGRAL LED,PROTECTED LED |
| Insulation | 600 V 3)EN 60947-1 |
| Item Group | 22468 |
| Lamp Type | LED |
| Length | 3.5433 in |
| Length [Metric] | 9.2000 cm |
| Material | Zamak |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=670242&lang=en-us |
| Mounting Type | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40-70 A°C |
| Returnable | N |
| Series | XB4 |
| Sub Brand | XB4 |
| Substitute Product Catalog Number | ZB4BZ009 |
| Terminal Type | Screw/Clamp |
| Throw | 90 ° |
| Type | Illuminated selector switch |
| UNSPSC | 39122216 |
| UPC 11 | 78590162425 |
| UPC 12 | 785901624257 |
| Upsell Product Catalog Number | XB4RFA02 |
| Voltage Rating | 24 V AC/DC 50/60 HZ |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.9685 in |
| Width [Metric] | 5.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Orange |
| Contact Configuration | 1NO-1NC |
| Contact Type | Slow Break |
| Operator Type | Standard Handle |
| Size | 22 mm |
| CHROMIUM PLATED METAL,COMPLETE ILLUMINATED SELECTOR SWITCH |
| Metal bezel, simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists |
| Designed to fit in a standard 22 mm cutout, ensuring compatibility when installing in pre-existing machinery |
| High performance international standards and certifications (marine certification) |
| Wide range of operating temperatures from -40 to 70 deg C allows versatility in usage of product |
| Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine |
| 1.2 A at 600 VAC, 3 A at 240 VAC, 6 A at 120 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC contact ratings |
