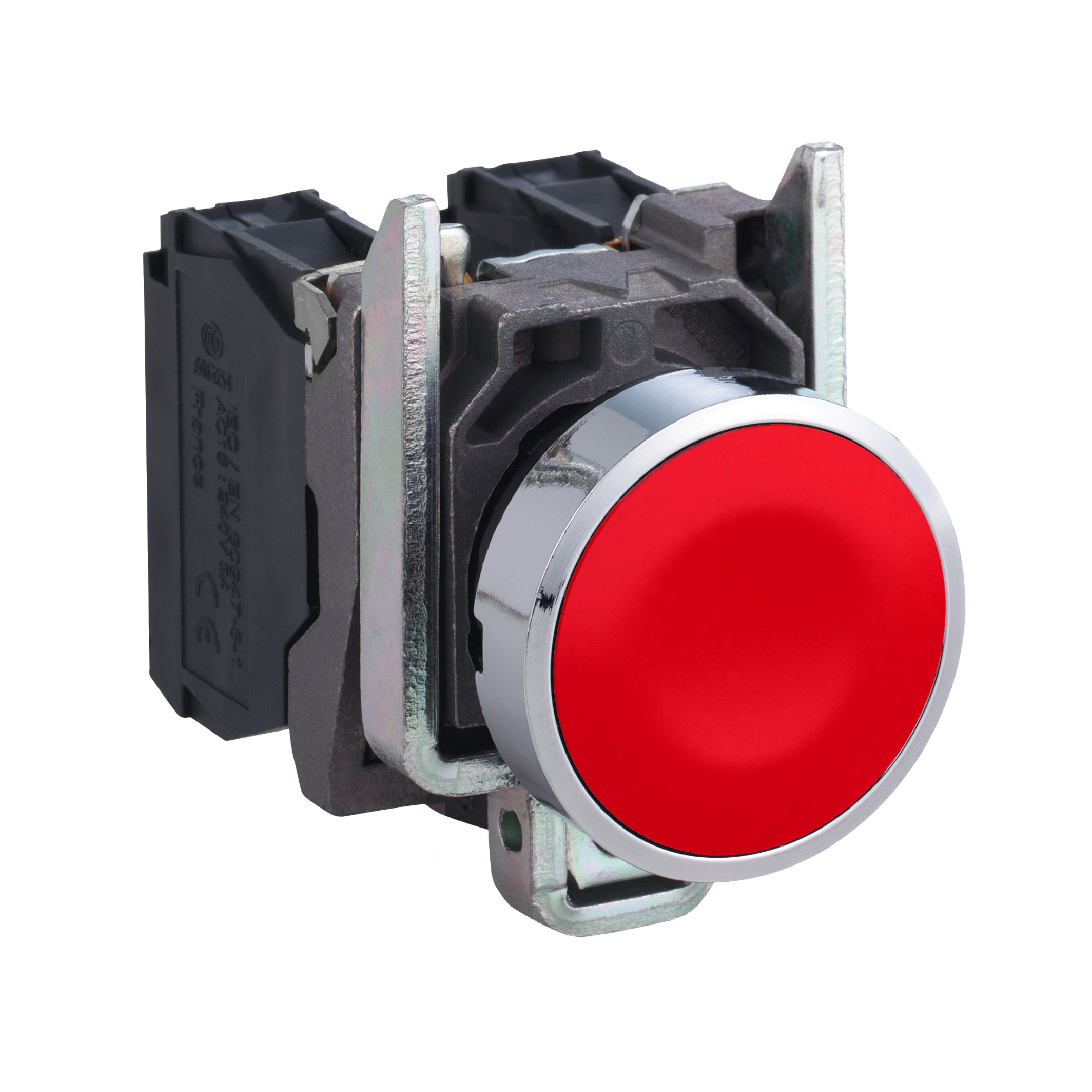

Schneider Electric XB4BA45 Harmony™ XB4 Non-Illuminated Pushbutton, 22 mm, 1NO/1NC, Spring Return Operator, Red
Custom_Product_Images_Illustration
Schneider Electric XB4BA45 Harmony™ XB4 Non-Illuminated Pushbutton, 22 mm, 1NO/1NC, Spring Return Operator, Red
SKU202499
MFGR #XB4BA45
$/ea
Schneider Electric XB4BA45 NON ILLRED FLUSH MOMENTARY W/1 N/O+1N/C,1 NO - 1 NC,10A,22mm Round,AC15 - DC13,NEMA 4/4X/13,Non-Illuminated Pushbutton,Red,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor),chromium plated metal,unmarked,momentary,non illuminated push-button
Schneider Electric XB4BA45 NON ILLRED FLUSH MOMENTARY W/1 N/O+1N/C,1 NO - 1 NC,10A,22mm Round,AC15 - DC13,NEMA 4/4X/13,Non-Illuminated Pushbutton,Red,Screw Clamp,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor),chromium plated metal,unmarked,momentary,non illuminated push-button
Action SLOW-BREAK Actuator spring return;Red flush, unmarked Alternate Catalog Number XB4BA45 Amperage Rating 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1-6 A 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 Application NON ILLUMINATED PUSH-BUTTON ARRA Compliant N Bezel|Housing Chromium Plated Metal Brand Schneider Electric Buy American Compliant N Catalog Number XB4BA45 Color Red Connection Type Screw Clamp Contact Configuration 1NO-1NC Contact Mode Momentary Contact Rating 10 A at 600 VAC Country of Origin FR Currency USD Enclosure NEMA 13-NEMA 4X Enclosure Type NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 Environmental Conditions -40 to 158 deg F Operating/Storage EU RoHS Indicator Y Finish Chromium Plated Gross Volume Per Pack 9.00 Gross Volume per Pack Metric 147.48 Gross Weight Per Pack 0.8900 lb Gross Weight per Pack Metric 88.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509035 Height 3.5000 in Height [Metric] 3.5000 cm Indicator Red Insulation 600 V 3)EN/IEC 60947-1 Item Group 22468 Length 8.8000 in Length [Metric] 8.8000 cm Manufacturer Schneider Electric Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55925214&lang=en-us Model push-button Mounting Type Panel Operating Temperature -40-70 A°C Operator Type Spring Return Returnable Y Series XB4 Size 22 mm Standards UL 508, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520 Stock Status NONSTOCK Sub Brand XB4 Substitute Product Catalog Number ZBZ32 Type Complete Corrosion-Resistant Dust/Watertight UNSPSC 39122216 UPC 11 78590169647 UPC 12 785901696476 Warranty Description Contractual Warranty:18 months Width 5.4000 in Width [Metric] 5.4000 cm NON ILLUMINATED PUSH-BUTTON CHROMIUM PLATED METAL,COMPLETE PUSH-BUTTON Zamak fixing collar material Slow break contact operation 1.85 in H x 1.18 in W x 2.05 in D product dimension 1015.26 psi (7000000 Pa) at 131 deg F and 0.1 m distance resistance to high pressure washer Standard contacts 0.1 in (2.6 mm) (NO changing electrical state) and 0.17 in (4.3 mm) (total travel) 7.08 to 10.62 lbf-in (0.8 to 1.2 N-m) conforming to EN 60947-1 tightening torque Cross head compatible with Philips and pozidriv #1 screwdriver slotted head compatible with flat 4 mm Dia and 5.5 mm Dia screwdriver Silver alloy (AgNi) contacts 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 short-circuit protection 10 A conforming to EN/IEC 60947-5-1 conventional free air thermal current 3 pollution deg
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Red flush, unmarked |
| Alternate Catalog Number | XB4BA45 |
| Amperage Rating | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1-6 A 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Application | NON ILLUMINATED PUSH-BUTTON |
| ARRA Compliant | N |
| Bezel|Housing | Chromium Plated Metal |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XB4BA45 |
| Color | Red |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Mode | Momentary |
| Contact Rating | 10 A at 600 VAC |
| Country of Origin | FR |
| Currency | USD |
| Enclosure | NEMA 13-NEMA 4X |
| Enclosure Type | NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 |
| Environmental Conditions | -40 to 158 deg F Operating/Storage |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated |
| Gross Volume Per Pack | 9.00 |
| Gross Volume per Pack Metric | 147.48 |
| Gross Weight Per Pack | 0.8900 lb |
| Gross Weight per Pack Metric | 88.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509035 |
| Height | 3.5000 in |
| Height [Metric] | 3.5000 cm |
| Indicator | Red |
| Insulation | 600 V 3)EN/IEC 60947-1 |
| Item Group | 22468 |
| Length | 8.8000 in |
| Length [Metric] | 8.8000 cm |
| Manufacturer | Schneider Electric |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55925214&lang=en-us |
| Model | push-button |
| Mounting Type | Panel |
| Operating Temperature | -40-70 A°C |
| Operator Type | Spring Return |
| Returnable | Y |
| Series | XB4 |
| Size | 22 mm |
| Standards | UL 508, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520 |
| Stock Status | NONSTOCK |
| Sub Brand | XB4 |
| Substitute Product Catalog Number | ZBZ32 |
| Type | Complete Corrosion-Resistant Dust/Watertight |
| UNSPSC | 39122216 |
| UPC 11 | 78590169647 |
| UPC 12 | 785901696476 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| NON ILLUMINATED PUSH-BUTTON |
| CHROMIUM PLATED METAL,COMPLETE PUSH-BUTTON |
| Zamak fixing collar material |
| Slow break contact operation |
| 1.85 in H x 1.18 in W x 2.05 in D product dimension |
| 1015.26 psi (7000000 Pa) at 131 deg F and 0.1 m distance resistance to high pressure washer |
| Standard contacts |
| 0.1 in (2.6 mm) (NO changing electrical state) and 0.17 in (4.3 mm) (total travel) |
| 7.08 to 10.62 lbf-in (0.8 to 1.2 N-m) conforming to EN 60947-1 tightening torque |
| Cross head compatible with Philips and pozidriv #1 screwdriver slotted head compatible with flat 4 mm Dia and 5.5 mm Dia screwdriver |
| Silver alloy (AgNi) contacts |
| 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 short-circuit protection |
| 10 A conforming to EN/IEC 60947-5-1 conventional free air thermal current |
| 3 pollution deg |
