Schneider Electric XALK178FH7 PUSH BUTTON ENCLOSUR
Pilot Devices
791969
MFG #: XALK178FH7
Schneider Electric
179.03000
/ ea
Schneider Electric XALK178FH7 PUSH BUTTON ENCLOSURE 600VAC 10A XALB SP,22mm,Harmony XALK,complete control station,complete control station,emergency stop function-emergency switching off function,slow-break,turn to release
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=12029122360Den&ext=webp(360 Degree View URL)
- Brochure URL - f859956b2e266ce3926d62547a6e7c36445832bd.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XALK178FH7.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XALK178FH7.DXF(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0K2OUFSRXD6VN8ZY.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Schneider_Electric_XALK178FH7_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_9TXOCVL4GMIUW1PN.pdf(Service Manual URL)
- Service Manual URL - 11003_F9S61MOZLYWRJ2Q5.pdf(Service Manual URL)
- Spec Sheet URL - 11003_1CIE6BTOZYVHD8UL.pdf(Spec Sheet URL)
- Tech Drawing URL - d43722bdf04993a9aa9d1f1be0196bd98ca93a0f(Tech Drawing URL)
- Applications
- Features
| For XB5 Ø 22 mm control and signalling units |
| COMPLETE CONTROL STATION |
| These control stations are suitable for most common functions start, stop, start-stop, emergency stop |
| XALK complete stations for emergency stop Function (1 mushroom head pushbutton) stations for custom assembly in order to meet specific requirements |
| Empty enclosures with 1, 2 , 3, 4 or 5 cutouts for user installing Harmony™ XB5 operators |
| IP65, NEMA 4/4x dust and damp proofing |
| Protected LED illuminated lens units |
| Low load electrical contact |
| Screw clamp connection or use PCB connections with pins for printed circuit |
| Designed for industry and the service sector, this range of control stations combines simplicity of setup with compact size and flexibility |
| It is ideal for applications requiring good-resistance to chemical agents and/or double electrical insulation |

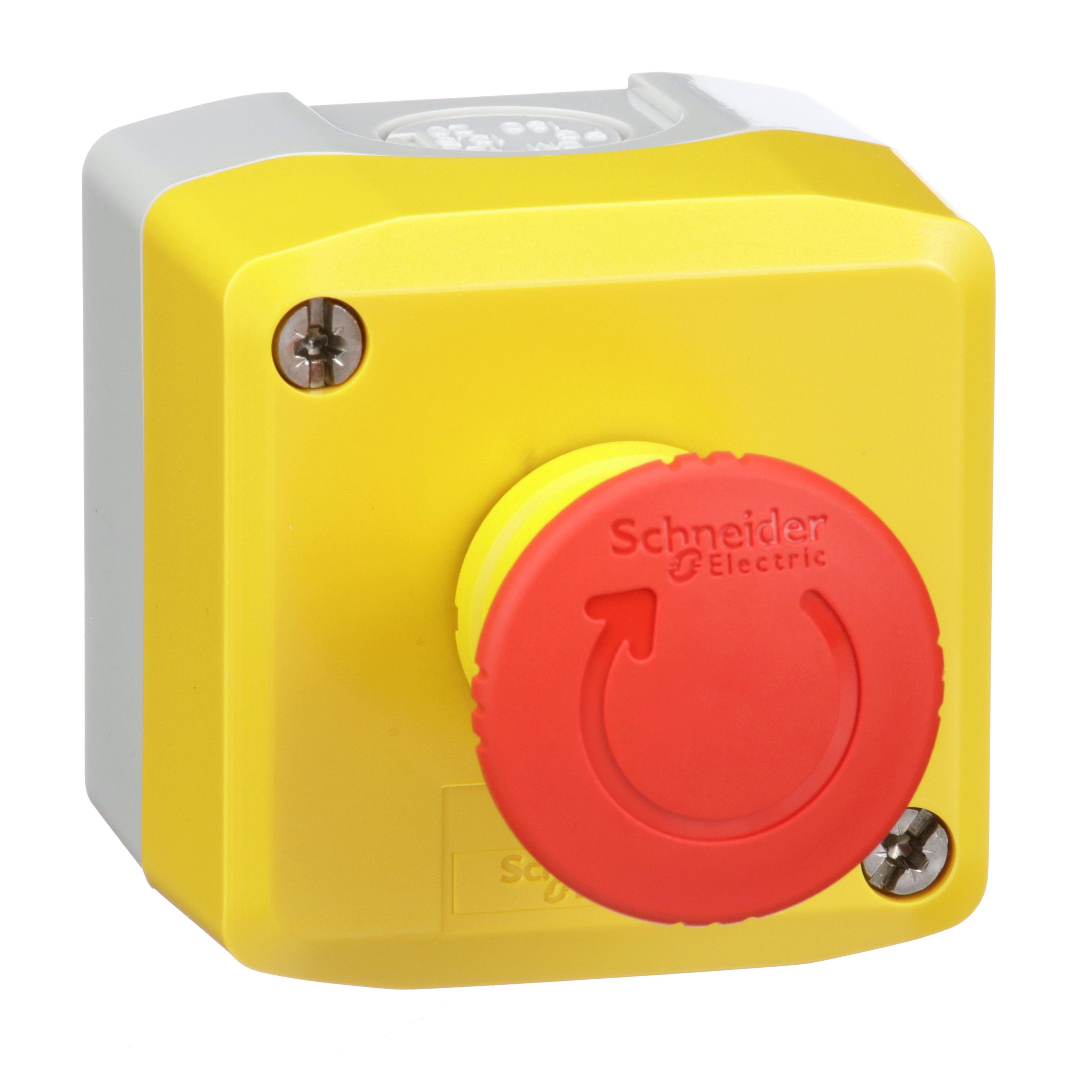

| This Schneider electric Harmony™ XALK yellow control station for emergency stop Function is ideal for your complete control station |
| It has 1 red mushroom head pushbutton, with 2 x NC contacts |
| It operates with turn to release mechanism and uses screw-clamp |
