Schneider Electric

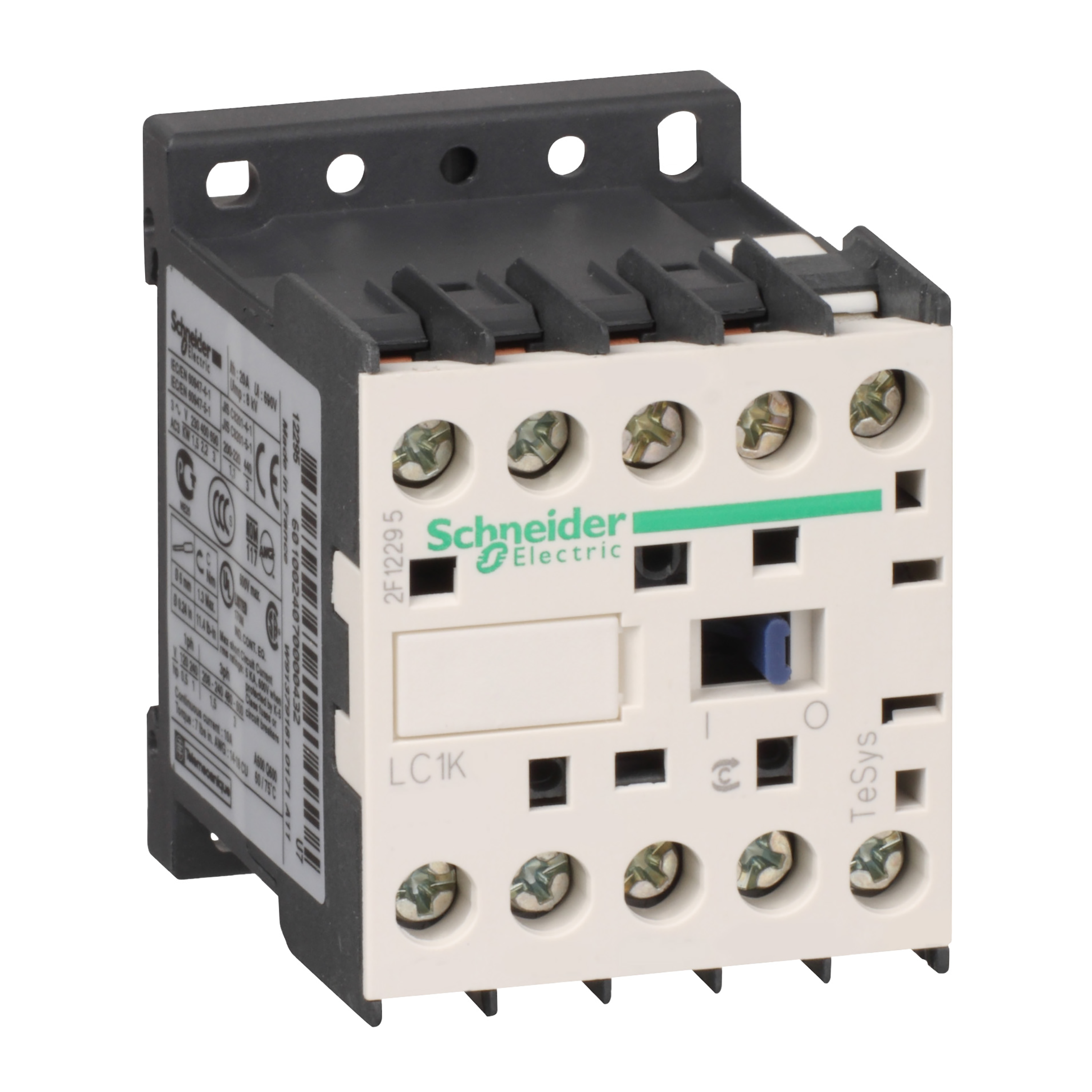

Schneider Electric TeSys™ LC1K0910F7 K-Line IEC Contactor LC1K0910F7, 110 VAC Coil, 9 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ LC1K0910F7 K-Line IEC Contactor LC1K0910F7, 110 VAC Coil, 9 A Max Load, 3NO, 3 Poles
SKU35054
MFGR #LC1K0910F7
Your Cost: $75.54/ea
Schneider Electric LC1K0910F7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,110 V AC 50/60 Hz,3 NO,LC1K,LC1K,motor control-resistive load,Panel,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked
Schneider Electric LC1K0910F7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,110 V AC 50/60 Hz,3 NO,LC1K,LC1K,motor control-resistive load,Panel,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked
Alternate Catalog Number LC1K0910F7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1K0910F7 Coil Power Rating 30 VA Inrush/4.5 VA Hold-In Coil Voltage 110 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 20 A 50 A°C POWER CIRCUIT-10 A 50 A°C SIGNALLING CIRCUIT Contact Type Non-Reversing Country of Origin FR Currency USD Dimensions 58 mm H x 45 mm W x 57 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 11.86 Gross Volume per Pack Metric 194.35 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3900 lb Gross Weight per Pack Metric 178.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.6000 in Height [Metric] 4.8000 cm Item Group 22326 Length 6.2000 in Length [Metric] 6.6000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622934&lang=en-us Maximum Load Current 9 A Mounting Panel Mounting Type Plate/Rail/Panel Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 50 Returnable Y Series LC1K Size 3P Standard CSA-UL,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 Stock Status NONSTOCK Sub Brand TeSys K Substitute Product Catalog Number LA1KN20 Terminal Type Screw/Clamp Type K-Line UNSPSC 39121529 UPC 11 78590188317 UPC 12 785901883173 Warranty Description Contractual Warranty:18 months Wattage 4 kW Width 4.8000 in Width [Metric] 6.2000 cm Resistive load;motor control 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1K0910F7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1K0910F7 |
| Coil Power Rating | 30 VA Inrush/4.5 VA Hold-In |
| Coil Voltage | 110 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 20 A 50 A°C POWER CIRCUIT-10 A 50 A°C SIGNALLING CIRCUIT |
| Contact Type | Non-Reversing |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 57 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 11.86 |
| Gross Volume per Pack Metric | 194.35 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3900 lb |
| Gross Weight per Pack Metric | 178.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.6000 in |
| Height [Metric] | 4.8000 cm |
| Item Group | 22326 |
| Length | 6.2000 in |
| Length [Metric] | 6.6000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622934&lang=en-us |
| Maximum Load Current | 9 A |
| Mounting | Panel |
| Mounting Type | Plate/Rail/Panel |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 50 |
| Returnable | Y |
| Series | LC1K |
| Size | 3P |
| Standard | CSA-UL,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys K |
| Substitute Product Catalog Number | LA1KN20 |
| Terminal Type | Screw/Clamp |
| Type | K-Line |
| UNSPSC | 39121529 |
| UPC 11 | 78590188317 |
| UPC 12 | 785901883173 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 4 kW |
| Width | 4.8000 in |
| Width [Metric] | 6.2000 cm |
| Resistive load;motor control |
| 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT |
