Schneider Electric

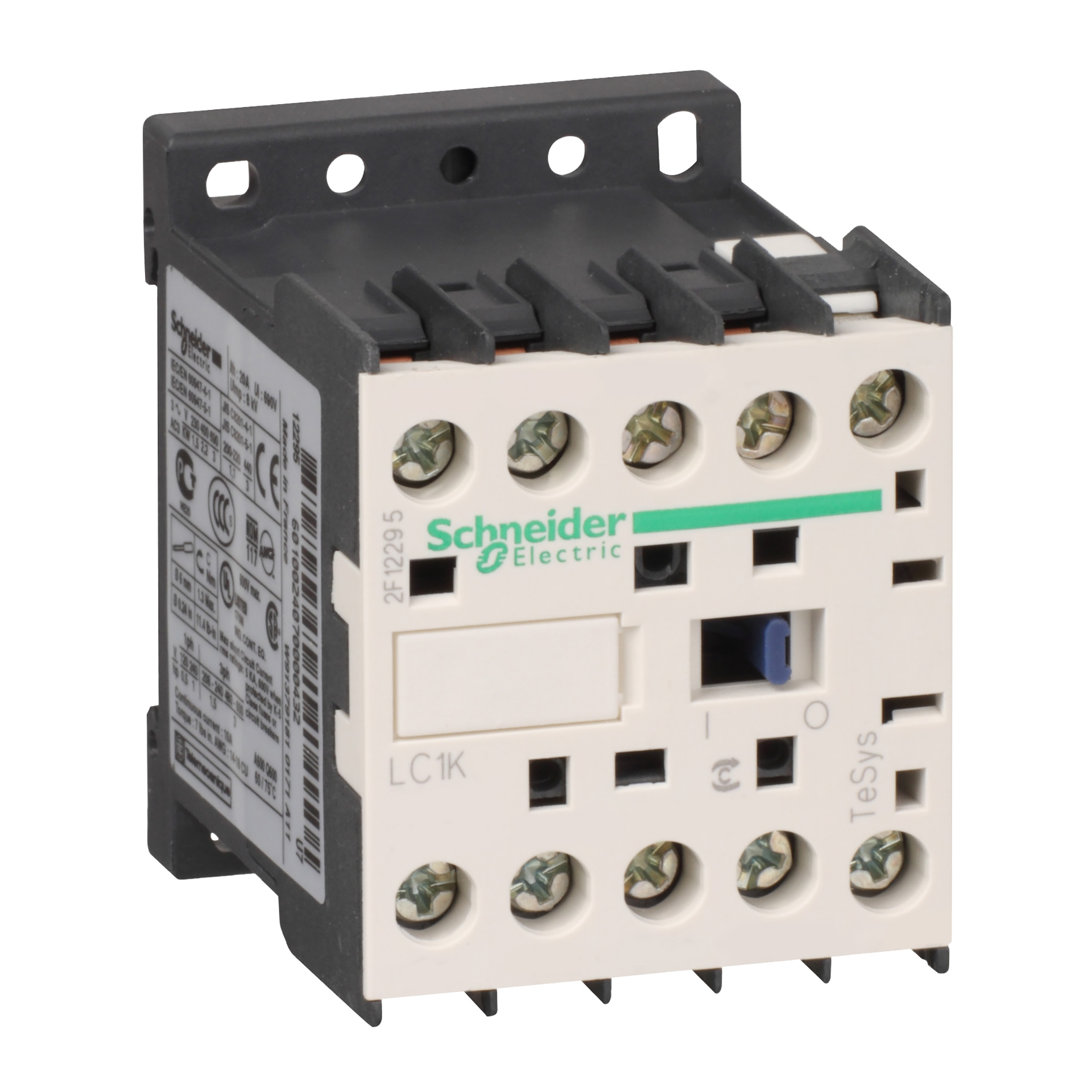

Schneider Electric TeSys™ LC1K0910B7 K-Line IEC Contactor LC1K0910B7, 24 VAC Coil, 9 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ LC1K0910B7 K-Line IEC Contactor LC1K0910B7, 24 VAC Coil, 9 A Max Load, 3NO, 3 Poles
SKU47279
MFGR #LC1K0910B7
Your Cost: $75.54/ea
Schneider Electric LC1K0910B7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,24 V AC 50/60 Hz,3 NO,LC1K,LC1K,motor control-resistive load,Panel,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked
Schneider Electric LC1K0910B7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,24 V AC 50/60 Hz,3 NO,LC1K,LC1K,motor control-resistive load,Panel,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked
Alternate Catalog Number LC1K0910B7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1K0910B7 Coil Power Rating 30 VA Inrush/4.5 VA Hold-In Coil Voltage 24 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 9 A at 600 VAC Contact Type Non-Reversing Country of Origin ID Currency USD Dimensions 58 mm H x 45 mm W x 57 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 12.31 Gross Volume per Pack Metric 201.72 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 180.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.6000 in Height [Metric] 4.5000 cm Item Group 22326 Length 6.2000 in Length [Metric] 6.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622910&lang=en-us Maximum Load Current 20 A Mounting Panel Mounting Type Panel Number of Auxiliary Contacts 1NO Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 50 Returnable Y Series K-Line LC1K Size 3P Standard CSA-UL,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 Stock Status NONSTOCK Sub Brand TeSys K Substitute Product Catalog Number LA1KN04 Terminal Type Screw/Clamp Type CONTACTOR UNSPSC 39121529 UPC 11 78590188298 UPC 12 785901882985 Warranty Description Contractual Warranty:18 months Wattage 4 kW Width 4.8000 in Width [Metric] 6.0000 cm Motor control;resistive load 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT 1/2 hp at 115 VAC, 1.5 hp at 230AC 1-phase, 2 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460/575 VAC (polyphase) power rating 20 A at 122 deg F power circuit/10 A at 122 deg F signaling circuit conventional-free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1K0910B7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1K0910B7 |
| Coil Power Rating | 30 VA Inrush/4.5 VA Hold-In |
| Coil Voltage | 24 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 9 A at 600 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 57 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 12.31 |
| Gross Volume per Pack Metric | 201.72 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 180.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.6000 in |
| Height [Metric] | 4.5000 cm |
| Item Group | 22326 |
| Length | 6.2000 in |
| Length [Metric] | 6.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622910&lang=en-us |
| Maximum Load Current | 20 A |
| Mounting | Panel |
| Mounting Type | Panel |
| Number of Auxiliary Contacts | 1NO |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 50 |
| Returnable | Y |
| Series | K-Line LC1K |
| Size | 3P |
| Standard | CSA-UL,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys K |
| Substitute Product Catalog Number | LA1KN04 |
| Terminal Type | Screw/Clamp |
| Type | CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 78590188298 |
| UPC 12 | 785901882985 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 4 kW |
| Width | 4.8000 in |
| Width [Metric] | 6.0000 cm |
| Motor control;resistive load |
| 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT |
| 1/2 hp at 115 VAC, 1.5 hp at 230AC 1-phase, 2 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460/575 VAC (polyphase) power rating |
| 20 A at 122 deg F power circuit/10 A at 122 deg F signaling circuit conventional-free air thermal current |
