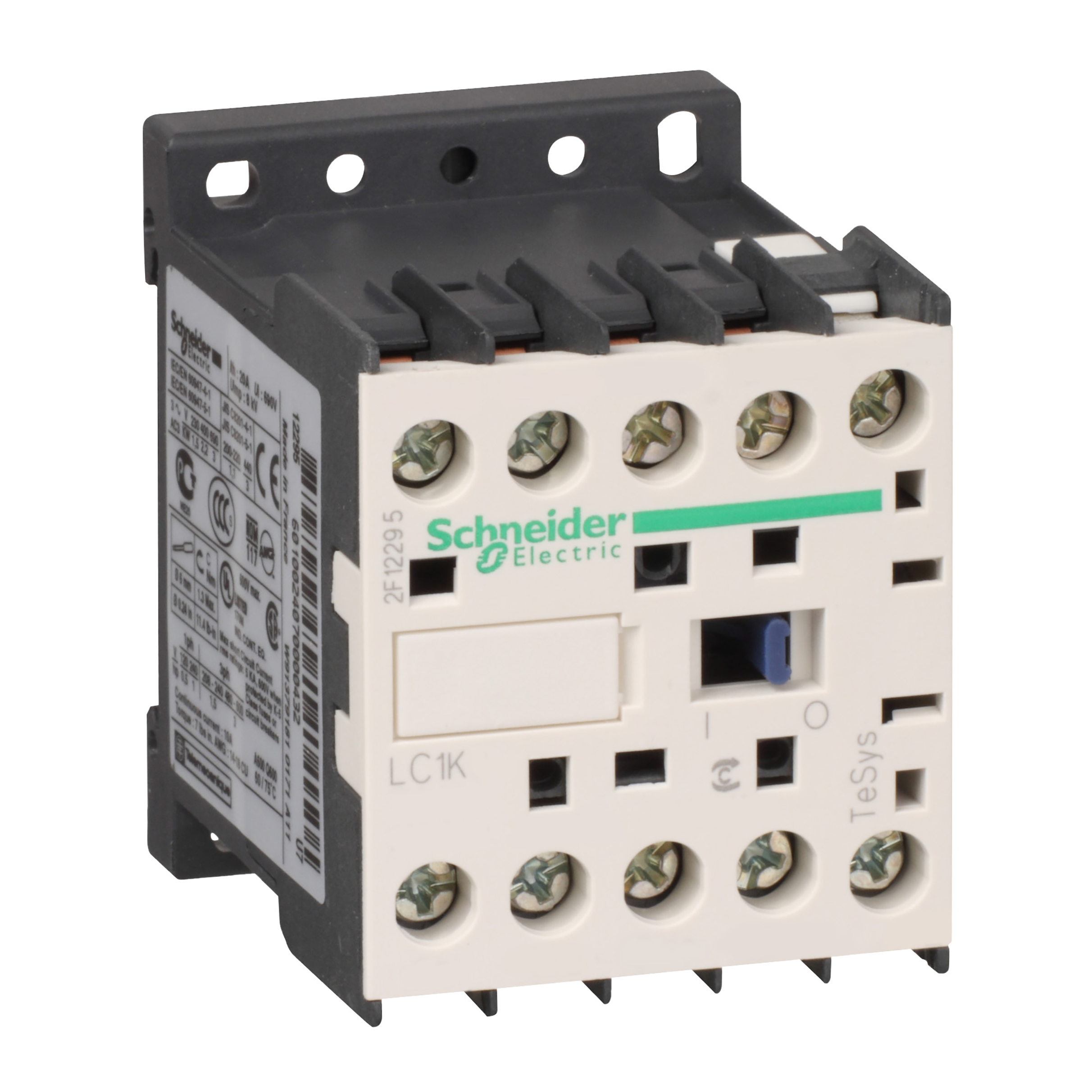

Schneider Electric TeSys™ LC1K0610F7 K-Line IEC Contactor LC1K0610F7, 110 VAC Coil, 6 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1K0610F7 K-Line IEC Contactor LC1K0610F7, 110 VAC Coil, 6 A Max Load, 3NO, 3 Poles
SKU35057
MFGR #LC1K0610F7
Your Cost: $58.96/ea
Schneider Electric LC1K0610F7 CONTACTOR 600VAC 6AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,110 V AC 50/60 Hz,3 NO,3P,LC1K,contactor,LC1K,motor control,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked,rail-plate
Schneider Electric LC1K0610F7 CONTACTOR 600VAC 6AMP IEC +OPTIONS,10 A at <= 50 deg.C for signalling circuit-20 A at <= 50 deg.C for power circuit,110 V AC 50/60 Hz,3 NO,3P,LC1K,contactor,LC1K,motor control,TeSys,TeSys K,UL Listed File E164862 NLDX2 - CSA Certified File LR43364 Class 3211 04 - IEC Rated 60947 - CE Marked,rail-plate
Alternate Catalog Number LC1K0610F7 Application MOTOR CONTROL ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1K0610F7 Coil Power Rating 30 VA Inrush/4.5 VA Hold-In Coil Voltage 110 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 20 A 50 A°C POWER CIRCUIT-10 A 50 A°C SIGNALLING CIRCUIT Contact Type Non-Reversing Country of Origin FR Currency USD Dimensions 58 mm H x 45 mm W x 57 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 11.40 Gross Volume per Pack Metric 186.81 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 179.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 4.8000 in Height [Metric] 4.8000 cm Item Group 22326 Length 6.5000 in Length [Metric] 6.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622280&lang=en-us Maximum Load Current 6 A Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 50 Returnable Y Series LC1K Size 45 MM,57 MM,58 MM Standard BS 5424-IEC 60947-NF C 63-110-VDE 0660,CSA-UL,IP2X VDE 0106,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 Stock Status NORMALLY STOCKED Sub Brand TESYS K Substitute Product Catalog Number LA1KN04 Terminal Type Screw/Clamp Type K-Line UNSPSC 39121529 UPC 11 78590188327 UPC 12 785901883272 Warranty Description Contractual Warranty:18 months Wattage 3 kW Width 6.2000 in Width [Metric] 6.2000 cm Motor control 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1K0610F7 |
| Application | MOTOR CONTROL |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1K0610F7 |
| Coil Power Rating | 30 VA Inrush/4.5 VA Hold-In |
| Coil Voltage | 110 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 20 A 50 A°C POWER CIRCUIT-10 A 50 A°C SIGNALLING CIRCUIT |
| Contact Type | Non-Reversing |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 57 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 11.40 |
| Gross Volume per Pack Metric | 186.81 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 179.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 4.8000 in |
| Height [Metric] | 4.8000 cm |
| Item Group | 22326 |
| Length | 6.5000 in |
| Length [Metric] | 6.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=622280&lang=en-us |
| Maximum Load Current | 6 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 50 |
| Returnable | Y |
| Series | LC1K |
| Size | 45 MM,57 MM,58 MM |
| Standard | BS 5424-IEC 60947-NF C 63-110-VDE 0660,CSA-UL,IP2X VDE 0106,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TESYS K |
| Substitute Product Catalog Number | LA1KN04 |
| Terminal Type | Screw/Clamp |
| Type | K-Line |
| UNSPSC | 39121529 |
| UPC 11 | 78590188327 |
| UPC 12 | 785901883272 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3 kW |
| Width | 6.2000 in |
| Width [Metric] | 6.2000 cm |
| Motor control |
| 20 A AT <= 50 °C FOR POWER CIRCUIT-10 A AT <= 50 °C FOR SIGNALLING CIRCUIT |
