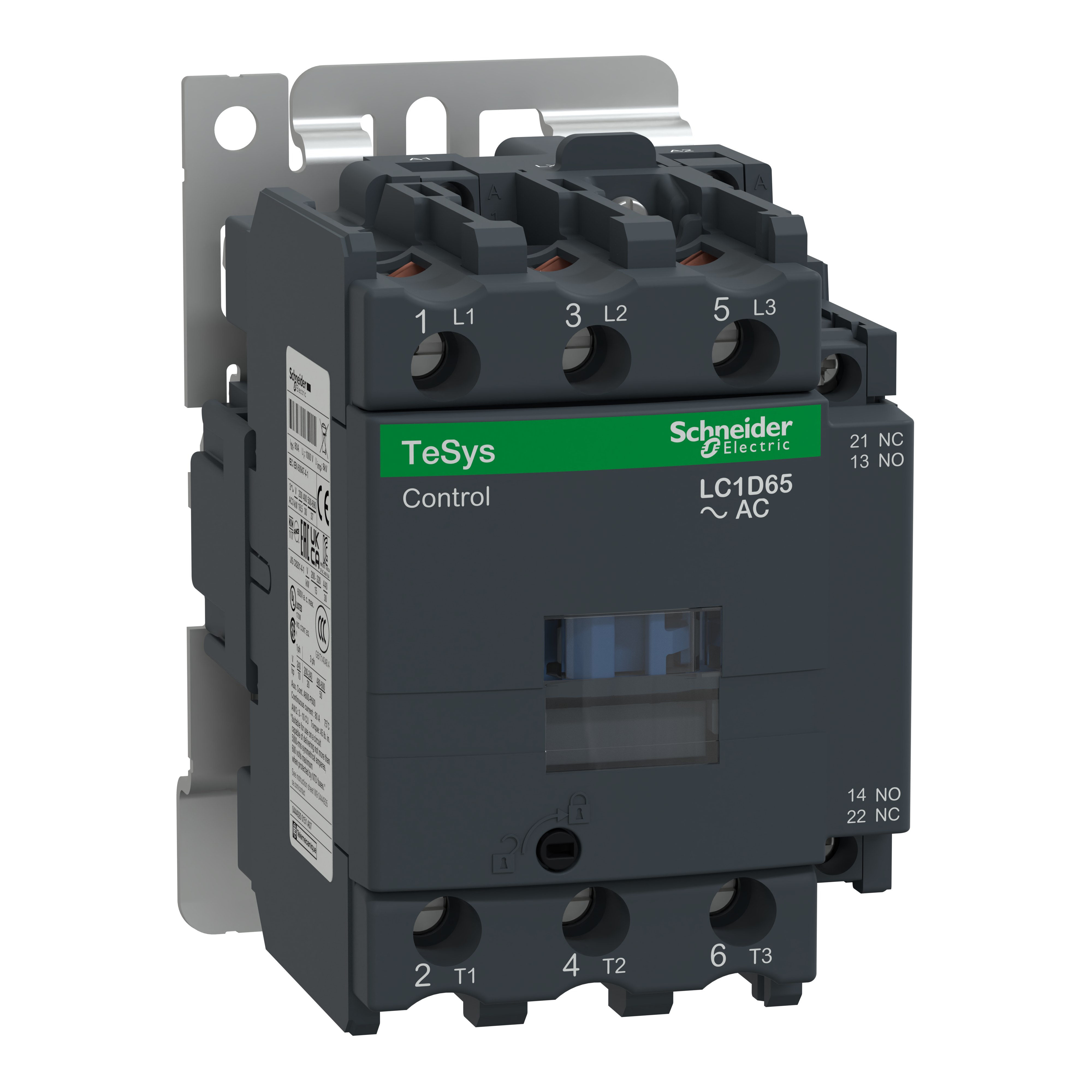

Schneider Electric TeSys™ LC1D65F7 D-Line IEC Contactor LC1D65F7, 110 VAC Coil, 65 A Max Load, 3NO, 3 Poles
Contactors
61619
MFG #: LC1D65F7
Schneider Electric
634.29000
/ ea
Schneider Electric LC1D65F7 CONTACTOR 600VAC 65AMP IEC +OPTIONS,110 V AC 50/60 Hz,3 NO,3P,80 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for control circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
- 360 Degree View URL - index.html?pid=11003&id=17182749360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D65M7_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_WEJC1ZNTS3GF5P0H.pdf(Service Manual URL)
- Compliance Cert URL - Schneider_Electric_LC1D65F7_Compliance_Certificate.pdf(Compliance Cert URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_F13B74WYIH05TUPZ.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/vlEODblcQoo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn(Video)
- Tech Drawing URL - 11003_YVBUC3D89N42IKAM.pdf(Tech Drawing URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1D65F7_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Applications
- Features
| Motor control;resistive load |
| Without built-in bidirectional peak limiting diode suppressor |
| 5 hp at 115 VAC - 10 hp at 230 VAC (single phase), 20 hp at 200/230 VAC - 50 hp at 460/575 VAC (polyphase) |
