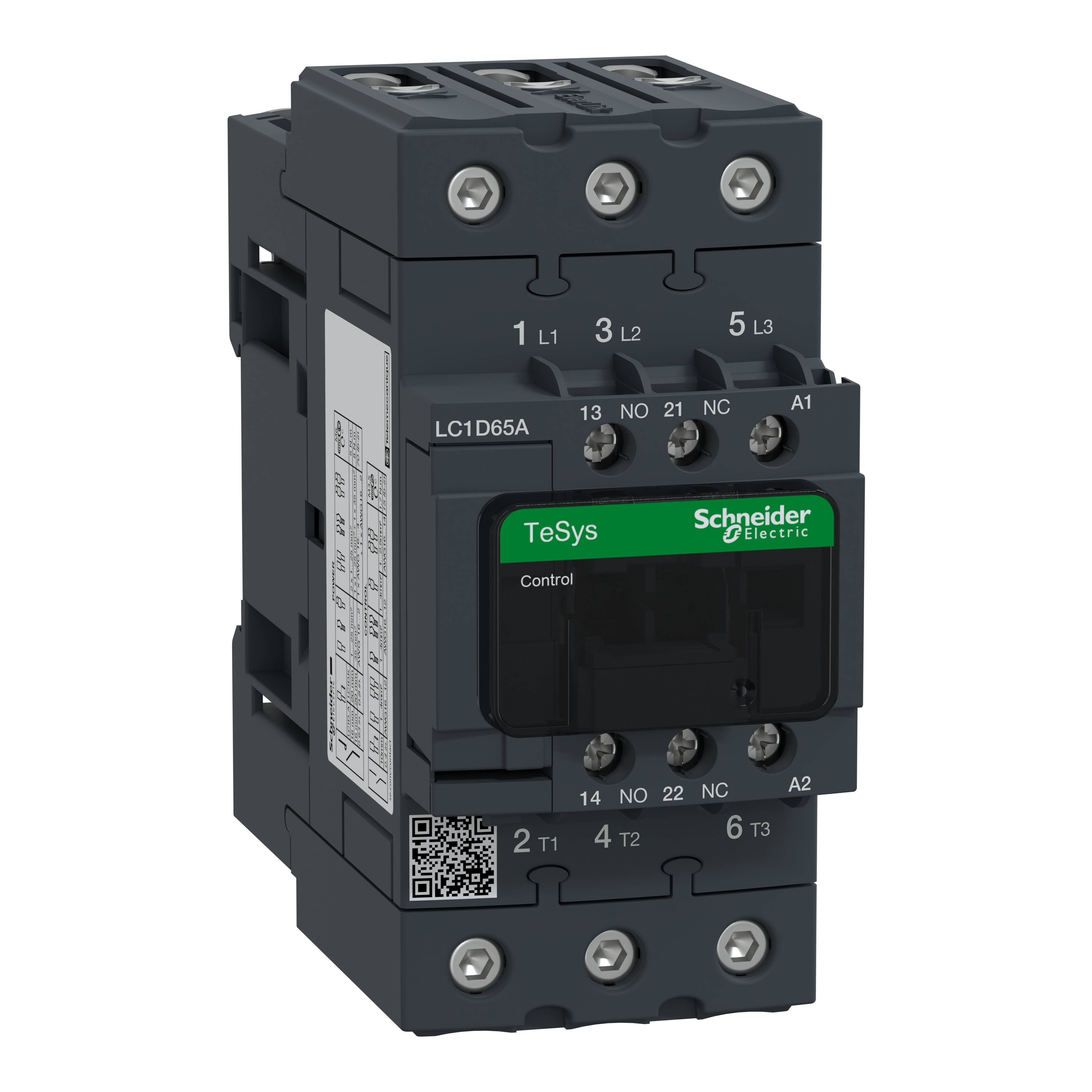

Schneider Electric TeSys™ LC1D65AF7 Standard IEC Contactor With Protective Cover, 110 VAC Coil, 65 A Max Load, 3NO
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D65AF7 Standard IEC Contactor With Protective Cover, 110 VAC Coil, 65 A Max Load, 3NO
SKU509377
MFGR #LC1D65AF7
Your Cost: $376.80/ea
Schneider Electric LC1D65AF7 TeSys D 3P Everlink AC Contactor AC3 65A IEC,110 V AC 50/60 Hz,3 NO,3P,80 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D65AF7 TeSys D 3P Everlink AC Contactor AC3 65A IEC,110 V AC 50/60 Hz,3 NO,3P,80 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D65AF7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D65AF7 Coil Power Rating 140/160 VA Inrush/13/15 VA Hold-In Coil Voltage 110 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 65 A at 690 VAC Contact Type Non-Reversing Country of Origin US Currency USD Dimensions 122 mm H x 55 mm W x 120 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 81.00 Gross Volume per Pack Metric 1327.35 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.4300 lb Gross Weight per Pack Metric 1.10 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 1.1000 in Height [Metric] 1.1000 cm Item Group 22357 Length 1.1000 in Length [Metric] 1.1000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472903&lang=en-us Maximum Load Current 80 A Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 6000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC1D Size 120 MM,122 MM,55 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-GOST-UL-CCC,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Terminal Type Screw/Clamp Type Standard UNSPSC 39121529 UPC 11 78590156551 UPC 12 785901565512 Warranty Description Contractual Warranty:18 months Wattage 30 kW Width 1.1000 in Width [Metric] 1.1000 cm Resistive load;motor control Without built-in suppressor module Without built-in bidirectional peak limiting diode suppressor coil technology 80 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D65AF7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D65AF7 |
| Coil Power Rating | 140/160 VA Inrush/13/15 VA Hold-In |
| Coil Voltage | 110 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 65 A at 690 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 122 mm H x 55 mm W x 120 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 81.00 |
| Gross Volume per Pack Metric | 1327.35 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.4300 lb |
| Gross Weight per Pack Metric | 1.10 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 1.1000 in |
| Height [Metric] | 1.1000 cm |
| Item Group | 22357 |
| Length | 1.1000 in |
| Length [Metric] | 1.1000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472903&lang=en-us |
| Maximum Load Current | 80 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 6000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 120 MM,122 MM,55 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-GOST-UL-CCC,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Terminal Type | Screw/Clamp |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 78590156551 |
| UPC 12 | 785901565512 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 30 kW |
| Width | 1.1000 in |
| Width [Metric] | 1.1000 cm |
| Resistive load;motor control |
| Without built-in suppressor module |
| Without built-in bidirectional peak limiting diode suppressor coil technology |
| 80 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
