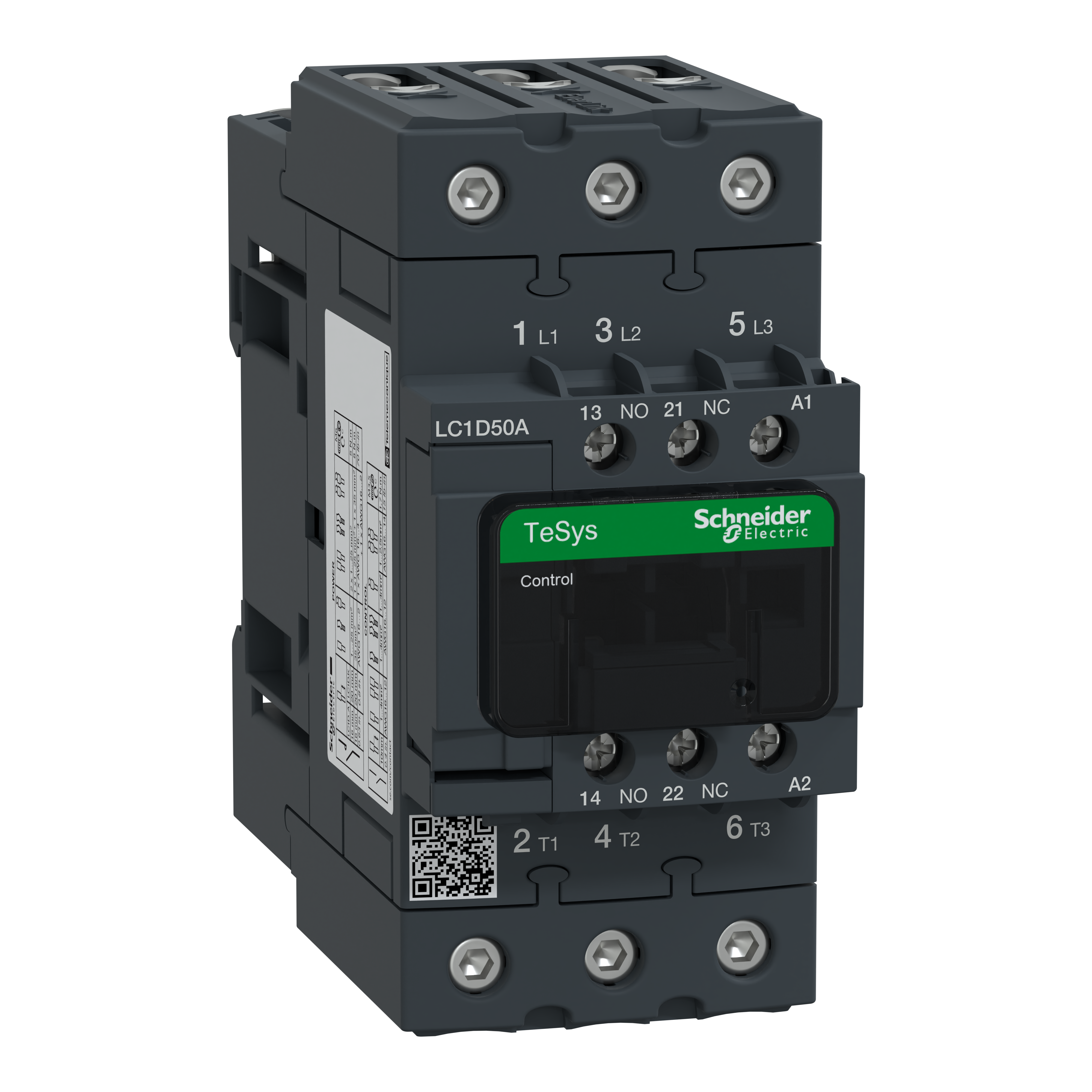

Schneider Electric TeSys™ LC1D50AF7 Standard IEC Contactor With Protective Cover, 110 VAC Coil, 50 A Max Load, 3NO
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D50AF7 Standard IEC Contactor With Protective Cover, 110 VAC Coil, 50 A Max Load, 3NO
SKU509371
MFGR #LC1D50AF7
Price Not Available
List: Schneider Electric LC1D50AF7 TeSys D 3P Everlink AC Contactor AC3 50A IEC,110 V AC 50/60 Hz,3 NO,3P,80 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D50AF7 TeSys D 3P Everlink AC Contactor AC3 50A IEC,110 V AC 50/60 Hz,3 NO,3P,80 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D50AF7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D50AF7 Coil Power Rating 140/160 VA Inrush/13/15 VA Hold-In Coil Voltage 110 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 50 A at 690 VAC Contact Type Non-Reversing Country of Origin ID Currency USD Dimensions 122 mm H x 55 mm W x 120 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 81.00 Gross Volume per Pack Metric 1327.35 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 9.2500 lb Gross Weight per Pack Metric 931.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.2000 CM Height [Metric] 6.2000 cm Item Group 22357 Length 15.3000 CM Length [Metric] 15.3000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472528&lang=en-us Maximum Load Current 80 A Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 6000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC1D Size 120 MM,122 MM,55 MM Standard 850 A°C IEC 60695-2-1,CCC-GOST-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-DNV-BV-GL-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Terminal Type Screw/Clamp Type Standard UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 30 kW Width 14.0000 CM Width [Metric] 13.5000 cm Motor control;resistive load Without built-in suppressor module 80 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D50AF7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D50AF7 |
| Coil Power Rating | 140/160 VA Inrush/13/15 VA Hold-In |
| Coil Voltage | 110 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 50 A at 690 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 122 mm H x 55 mm W x 120 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 81.00 |
| Gross Volume per Pack Metric | 1327.35 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 9.2500 lb |
| Gross Weight per Pack Metric | 931.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2000 CM |
| Height [Metric] | 6.2000 cm |
| Item Group | 22357 |
| Length | 15.3000 CM |
| Length [Metric] | 15.3000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472528&lang=en-us |
| Maximum Load Current | 80 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 6000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 120 MM,122 MM,55 MM |
| Standard | 850 A°C IEC 60695-2-1,CCC-GOST-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-DNV-BV-GL-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Terminal Type | Screw/Clamp |
| Type | Standard |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 30 kW |
| Width | 14.0000 CM |
| Width [Metric] | 13.5000 cm |
| Motor control;resistive load |
| Without built-in suppressor module |
| 80 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
