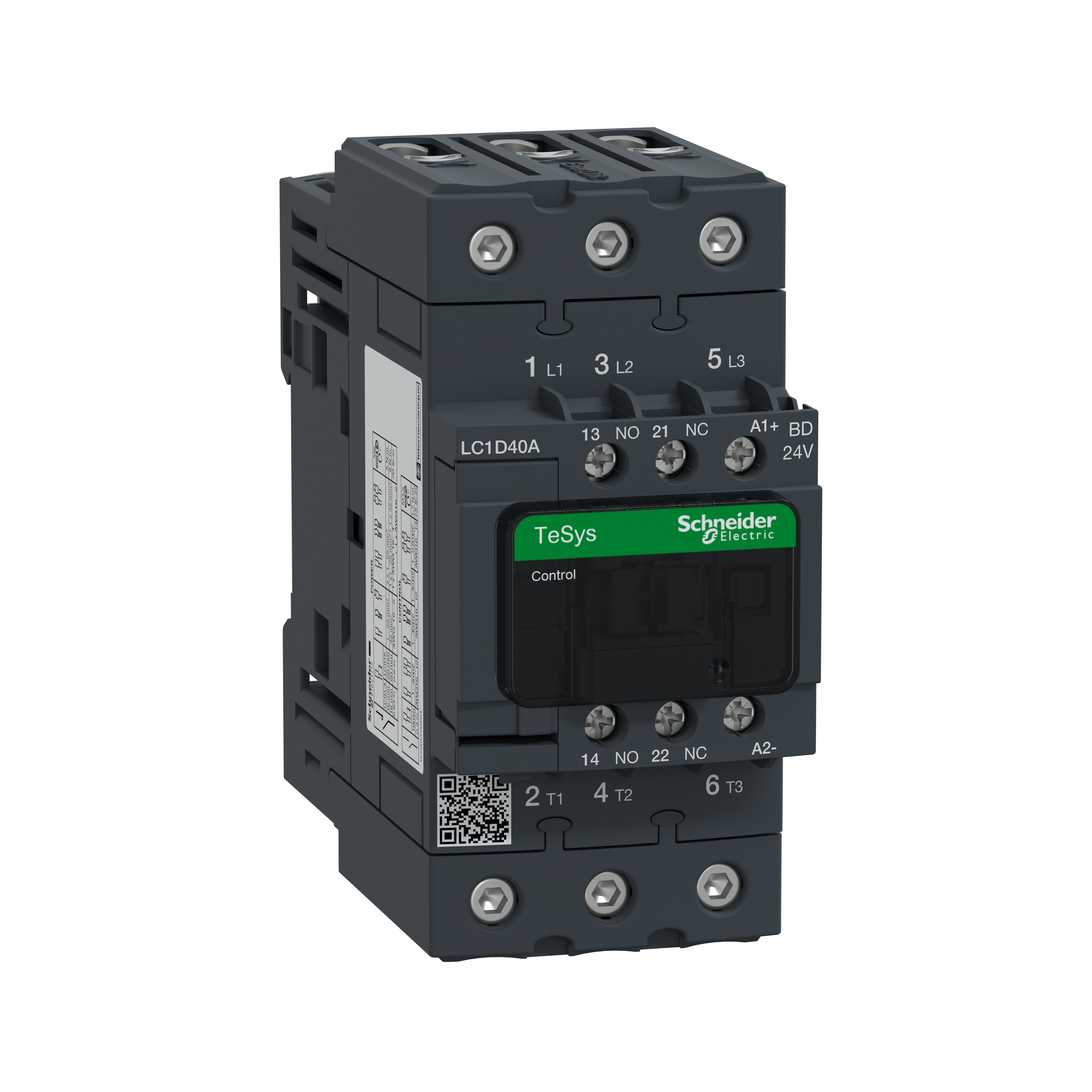

Schneider Electric TeSys™ LC1D40ABD Standard IEC Contactor With Protective Cover, 24 VDC Coil, 40 A Max Load, 3NO
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D40ABD Standard IEC Contactor With Protective Cover, 24 VDC Coil, 40 A Max Load, 3NO
SKU509369
MFGR #LC1D40ABD
Your Cost: $315.44/ea
Schneider Electric LC1D40ABD TeSys D 3P Everlink DC Contactor AC3 40A IEC,24 V DC,3 NO,3P,60 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D40ABD TeSys D 3P Everlink DC Contactor AC3 40A IEC,24 V DC,3 NO,3P,60 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D40ABD Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D40ABD Coil Power Rating 7.4-7.4 W 20 A°C Contact Configuration 1 NO + 1 NC,3 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-60 A 60 A°C POWER CIRCUIT Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 79.50 Gross Volume per Pack Metric 1302.77 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.1500 lb Gross Weight per Pack Metric 989.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.2000 in Height [Metric] 6.2000 cm Item Group 22358 Length 15.2000 in Length [Metric] 15.2000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472205&lang=en-us Mounting RAIL-PLATE Operating Temperature -40-70 A°C AT UC,-5-60 A°C Returnable Y Size 120 MM,122 MM,55 MM Standard 850 A°C IEC 60695-2-1,CCC-CSA-GOST-UL,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Standards CSA C22-2 No 14 Certified, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 Listed, IEC 60529/VDE 0106, BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications, RoHS Complaint Stock Status NORMALLY STOCKED Sub Brand TeSys D Substitute Product Catalog Number GV3G264 Type CONTACTOR,DIRECT ON-LINE CONTACTOR UNSPSC 39121529 UPC 11 78590192982 UPC 12 785901929826 Warranty Description Contractual Warranty:18 months Wattage 2.4 W AC-3-5.4 W AC-1 . W;. W Width 13.7000 in Width [Metric] 13.7000 cm Resistive load;motor control Built-in bidirectional peak limiting diode suppressor Built-in bidirectional peak limiting diode suppressor coil technology
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D40ABD |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D40ABD |
| Coil Power Rating | 7.4-7.4 W 20 A°C |
| Contact Configuration | 1 NO + 1 NC,3 NO,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-60 A 60 A°C POWER CIRCUIT |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 79.50 |
| Gross Volume per Pack Metric | 1302.77 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.1500 lb |
| Gross Weight per Pack Metric | 989.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2000 in |
| Height [Metric] | 6.2000 cm |
| Item Group | 22358 |
| Length | 15.2000 in |
| Length [Metric] | 15.2000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472205&lang=en-us |
| Mounting | RAIL-PLATE |
| Operating Temperature | -40-70 A°C AT UC,-5-60 A°C |
| Returnable | Y |
| Size | 120 MM,122 MM,55 MM |
| Standard | 850 A°C IEC 60695-2-1,CCC-CSA-GOST-UL,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Standards | CSA C22-2 No 14 Certified, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 Listed, IEC 60529/VDE 0106, BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications, RoHS Complaint |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | GV3G264 |
| Type | CONTACTOR,DIRECT ON-LINE CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 78590192982 |
| UPC 12 | 785901929826 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2.4 W AC-3-5.4 W AC-1 . W;. W |
| Width | 13.7000 in |
| Width [Metric] | 13.7000 cm |
| Resistive load;motor control |
| Built-in bidirectional peak limiting diode suppressor |
| Built-in bidirectional peak limiting diode suppressor coil technology |
