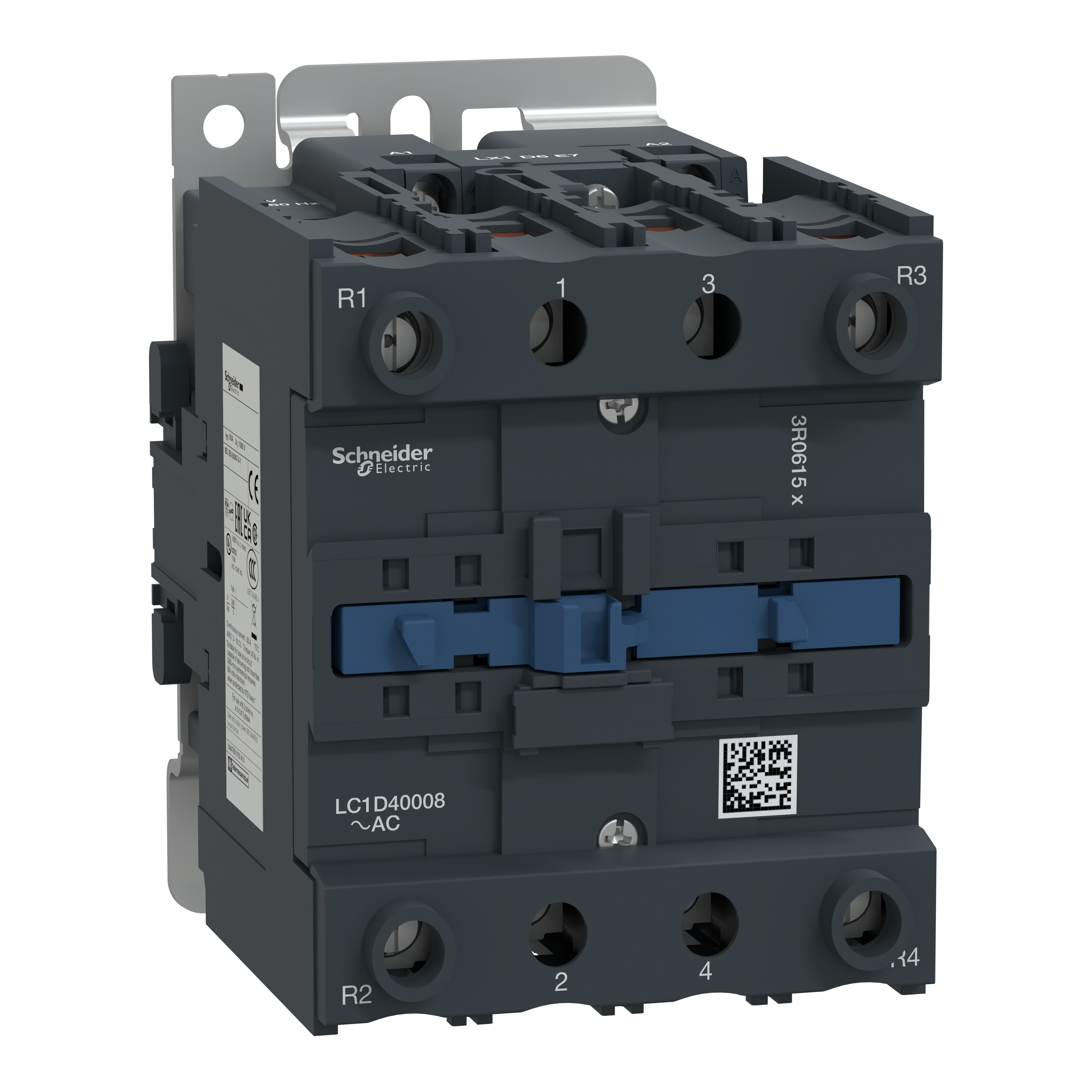

Schneider Electric TeSys™ LC1D40008G6 D-Line IEC Contactor LC1D40008G6, 120 VAC Coil, 40 A Max Load, 2NO/2NC, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D40008G6 D-Line IEC Contactor LC1D40008G6, 120 VAC Coil, 40 A Max Load, 2NO/2NC, 4 Poles
SKU408673
MFGR #LC1D40008G6
Call For Price
List: Schneider Electric LC1D40008G6 CONTACTOR 575VAC 40AMP IEC +OPTIONS,120 V AC 60 Hz,2 NO + 2 NC,4P,60 A at <= 60 deg.C for power circuit,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,rail-plate
Schneider Electric LC1D40008G6 CONTACTOR 575VAC 40AMP IEC +OPTIONS,120 V AC 60 Hz,2 NO + 2 NC,4P,60 A at <= 60 deg.C for power circuit,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,rail-plate
Alternate Catalog Number LC1D40008G6 Application Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D40008G6 Coil Power Rating 140 VA Inrush/13 VA Hold-In Coil Voltage 120 VAC Connection Type Screw Clamp Contact Configuration 2NO-2NC Contact Rating 60 A at 575 VAC Contact Type Non-Reversing Country of Origin US Currency USD Dimensions 127 mm H x 85 mm W x 125 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 97.34 Gross Volume per Pack Metric 1595.11 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0148 lb Gross Weight per Pack Metric 1.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 13.0000 in Height [Metric] 13.0000 cm Item Group 22357 Length 13.5000 in Length [Metric] 13.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616910&lang=en-us Maximum Load Current 60 A Mounting PLATE-RAIL Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 6000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC1D Size 125 MM,127 MM,85 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-CCC-BV-GL-DNV-UL-GOST-RINA-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Terminal Type Screw/Clamp Type contactor UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 22 kW Width 9.5000 in Width [Metric] 9.5000 cm Resistive load WITHOUT BUILT-IN SUPPRESSOR MODULE 60 A at 140 deg F power circuit conventional-free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D40008G6 |
| Application | Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D40008G6 |
| Coil Power Rating | 140 VA Inrush/13 VA Hold-In |
| Coil Voltage | 120 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 2NO-2NC |
| Contact Rating | 60 A at 575 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 127 mm H x 85 mm W x 125 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 97.34 |
| Gross Volume per Pack Metric | 1595.11 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0148 lb |
| Gross Weight per Pack Metric | 1.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 13.0000 in |
| Height [Metric] | 13.0000 cm |
| Item Group | 22357 |
| Length | 13.5000 in |
| Length [Metric] | 13.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616910&lang=en-us |
| Maximum Load Current | 60 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 6000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 125 MM,127 MM,85 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-CCC-BV-GL-DNV-UL-GOST-RINA-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Terminal Type | Screw/Clamp |
| Type | contactor |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 22 kW |
| Width | 9.5000 in |
| Width [Metric] | 9.5000 cm |
| Resistive load |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| 60 A at 140 deg F power circuit conventional-free air thermal current |
