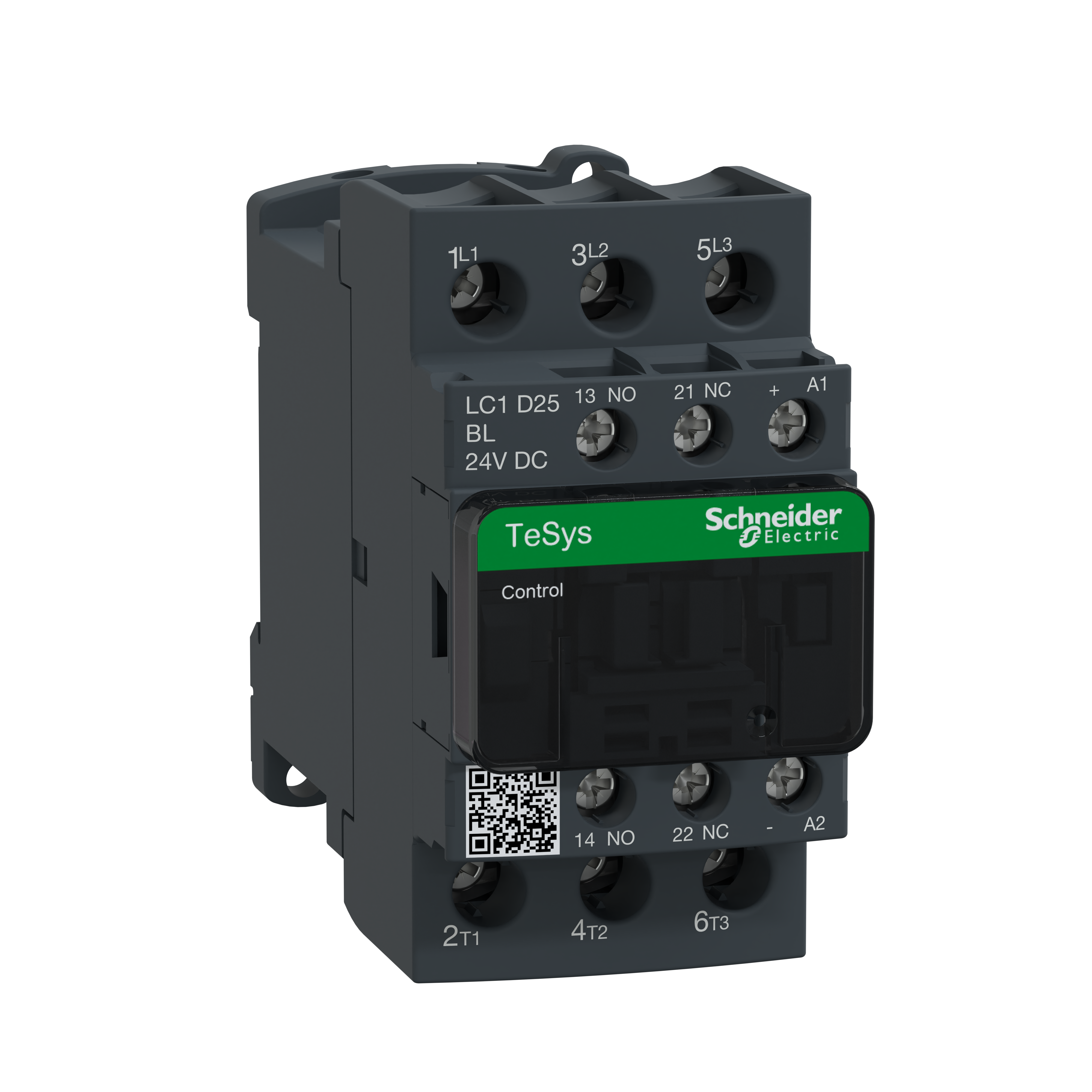

Schneider Electric TeSys™ LC1D25BL Low Consumption IEC Contactor With Protective Cover, 24 VDC Coil, 25 A Max Load, 3NO
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D25BL Low Consumption IEC Contactor With Protective Cover, 24 VDC Coil, 25 A Max Load, 3NO
SKU132557
MFGR #LC1D25BL
Call For Price
List: Schneider Electric LC1D25BL CONTACTOR 600VAC 25AMP IEC +OPTIONS,24 V DC,3 NO,3P,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D25BL CONTACTOR 600VAC 25AMP IEC +OPTIONS,24 V DC,3 NO,3P,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D25BL Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D25BL Coil Power Rating 2.4 W Inrush/5.4 W Hold-In Coil Voltage 24 VDC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 25 A at 600 VAC Contact Type Non-Reversing Country of Origin US Currency USD Dimensions 85 mm H x 45 mm W x 101 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 37.44 Gross Volume per Pack Metric 613.53 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.8900 lb Gross Weight per Pack Metric 596.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410045 Height 5.5000 in Height [Metric] 15.0000 cm Item Group 22354 Length 11.5000 in Length [Metric] 40.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471631&lang=en-us Maximum Load Current 40 A Mounting PLATE-RAIL Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC1D Size 101 MM,45 MM,85 MM Standard 850 A°C IEC 60695-2-1,BV-CSA-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CCC-GOST-GL-DNV-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NORMALLY STOCKED Sub Brand TESYS D Substitute Product Catalog Number LADN22 Terminal Type Screw/Clamp Type Low Consumption UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 11 kW Width 9.4000 in Width [Metric] 30.0000 cm Motor control;resistive load Built-in bidirectional peak limiting diode suppressor Built-in bi-directional peak limiting diode suppressor coil technology 40 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D25BL |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D25BL |
| Coil Power Rating | 2.4 W Inrush/5.4 W Hold-In |
| Coil Voltage | 24 VDC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 25 A at 600 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 101 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 37.44 |
| Gross Volume per Pack Metric | 613.53 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.8900 lb |
| Gross Weight per Pack Metric | 596.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 5.5000 in |
| Height [Metric] | 15.0000 cm |
| Item Group | 22354 |
| Length | 11.5000 in |
| Length [Metric] | 40.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471631&lang=en-us |
| Maximum Load Current | 40 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 101 MM,45 MM,85 MM |
| Standard | 850 A°C IEC 60695-2-1,BV-CSA-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CCC-GOST-GL-DNV-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LADN22 |
| Terminal Type | Screw/Clamp |
| Type | Low Consumption |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 11 kW |
| Width | 9.4000 in |
| Width [Metric] | 30.0000 cm |
| Motor control;resistive load |
| Built-in bidirectional peak limiting diode suppressor |
| Built-in bi-directional peak limiting diode suppressor coil technology |
| 40 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
