Schneider Electric

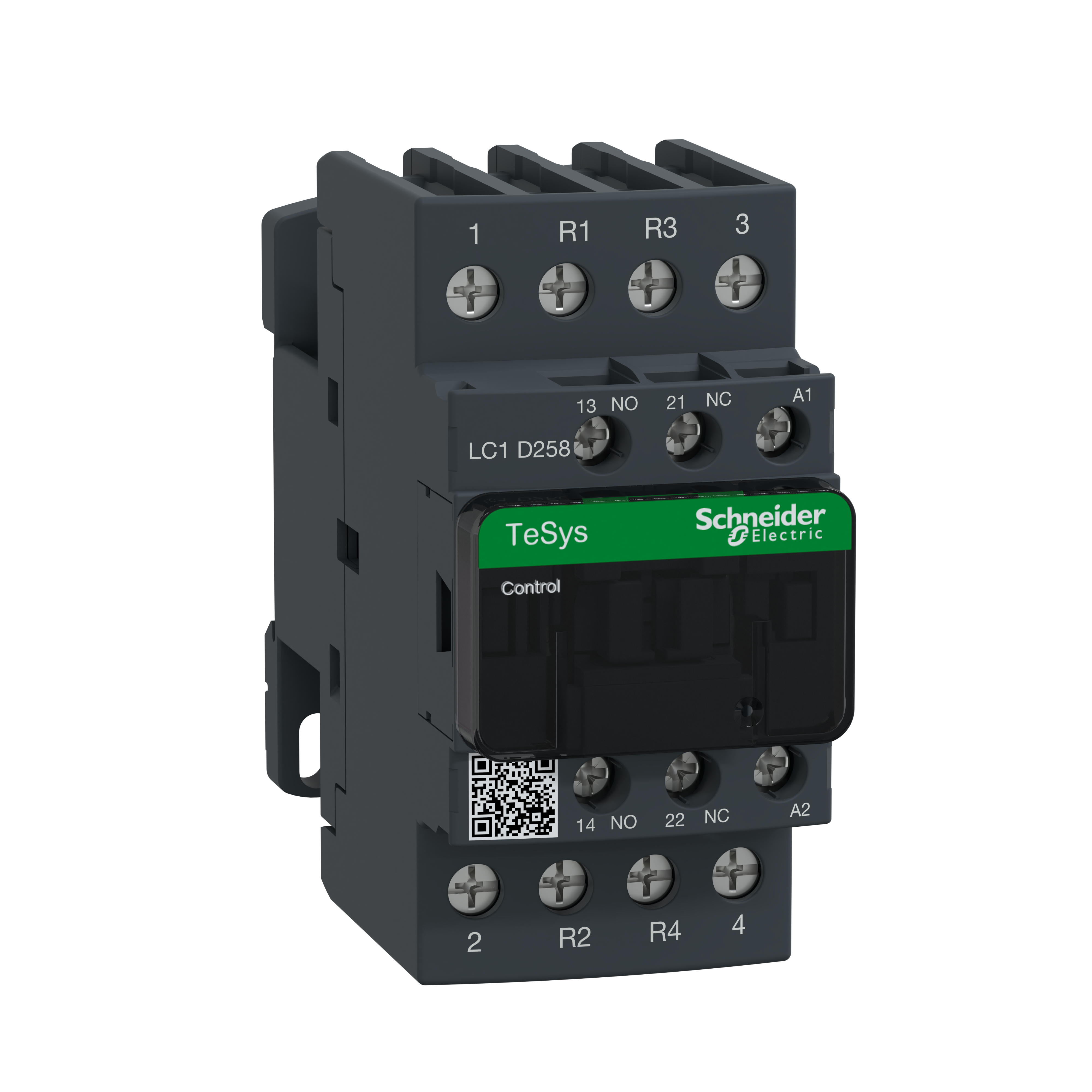

Schneider Electric TeSys™ LC1D258G7 Standard IEC Contactor With Protective Cover, 120 VAC Coil, 40 A Max Load, 2NO/2NC
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ LC1D258G7 Standard IEC Contactor With Protective Cover, 120 VAC Coil, 40 A Max Load, 2NO/2NC
SKU98658
MFGR #LC1D258G7
Your Cost: $247.37/ea
Schneider Electric LC1D258G7 CONTACTOR 600VAC 25AMP IEC OPTIONS,120 V AC 50/60 Hz,2 NO + 2 NC,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D258G7 CONTACTOR 600VAC 25AMP IEC OPTIONS,120 V AC 50/60 Hz,2 NO + 2 NC,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D258G7 Application Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D258G7 Coil Power Rating 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) Contact Configuration 1 NO + 1 NC,2 NO + 2 NC,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-40 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD EU RoHS Indicator Y Gross Volume Per Pack 42.44 Gross Volume per Pack Metric 695.46 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0395 lb Gross Weight per Pack Metric 470.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 9.6520 in Height [Metric] 5.5000 cm Item Group 22354 Length 11.9380 in Length [Metric] 12.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615620&lang=en-us Mounting RAIL-PLATE Operating Temperature -40-70 A°C AT UC,-5-60 A°C Returnable Y Size 105 MM,45 MM,99 MM Standard 850 A°C IEC 60695-2-1,BV-DNV-GL-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-UL-GOST-CSA-CCC,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Standards CSA C22-2 No 14 Certified, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 Listed, IEC 60529/VDE 0106, BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications, RoHS Complaint Stock Status NORMALLY STOCKED Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Type CONTACTOR UNSPSC 39121529 UPC 11 78590150314 UPC 12 785901503149 Warranty Description Contractual Warranty:18 months Wattage 3.2 W AC-1 Width 5.5880 in Width [Metric] 9.5000 cm Resistive load WITHOUT BUILT-IN SUPPRESSOR MODULE Without built-in bidirectional peak limiting diode suppressor coil technology
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D258G7 |
| Application | Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D258G7 |
| Coil Power Rating | 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) |
| Contact Configuration | 1 NO + 1 NC,2 NO + 2 NC,MECHANICALLY LINKED 1 NO + 1 NC IEC 60947-5-1-MIRROR CONTACT 1 NC IEC 60947-4-1 |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-40 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 42.44 |
| Gross Volume per Pack Metric | 695.46 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0395 lb |
| Gross Weight per Pack Metric | 470.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.6520 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22354 |
| Length | 11.9380 in |
| Length [Metric] | 12.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615620&lang=en-us |
| Mounting | RAIL-PLATE |
| Operating Temperature | -40-70 A°C AT UC,-5-60 A°C |
| Returnable | Y |
| Size | 105 MM,45 MM,99 MM |
| Standard | 850 A°C IEC 60695-2-1,BV-DNV-GL-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-UL-GOST-CSA-CCC,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Standards | CSA C22-2 No 14 Certified, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 Listed, IEC 60529/VDE 0106, BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications, RoHS Complaint |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Type | CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 78590150314 |
| UPC 12 | 785901503149 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3.2 W AC-1 |
| Width | 5.5880 in |
| Width [Metric] | 9.5000 cm |
| Resistive load |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Without built-in bidirectional peak limiting diode suppressor coil technology |
