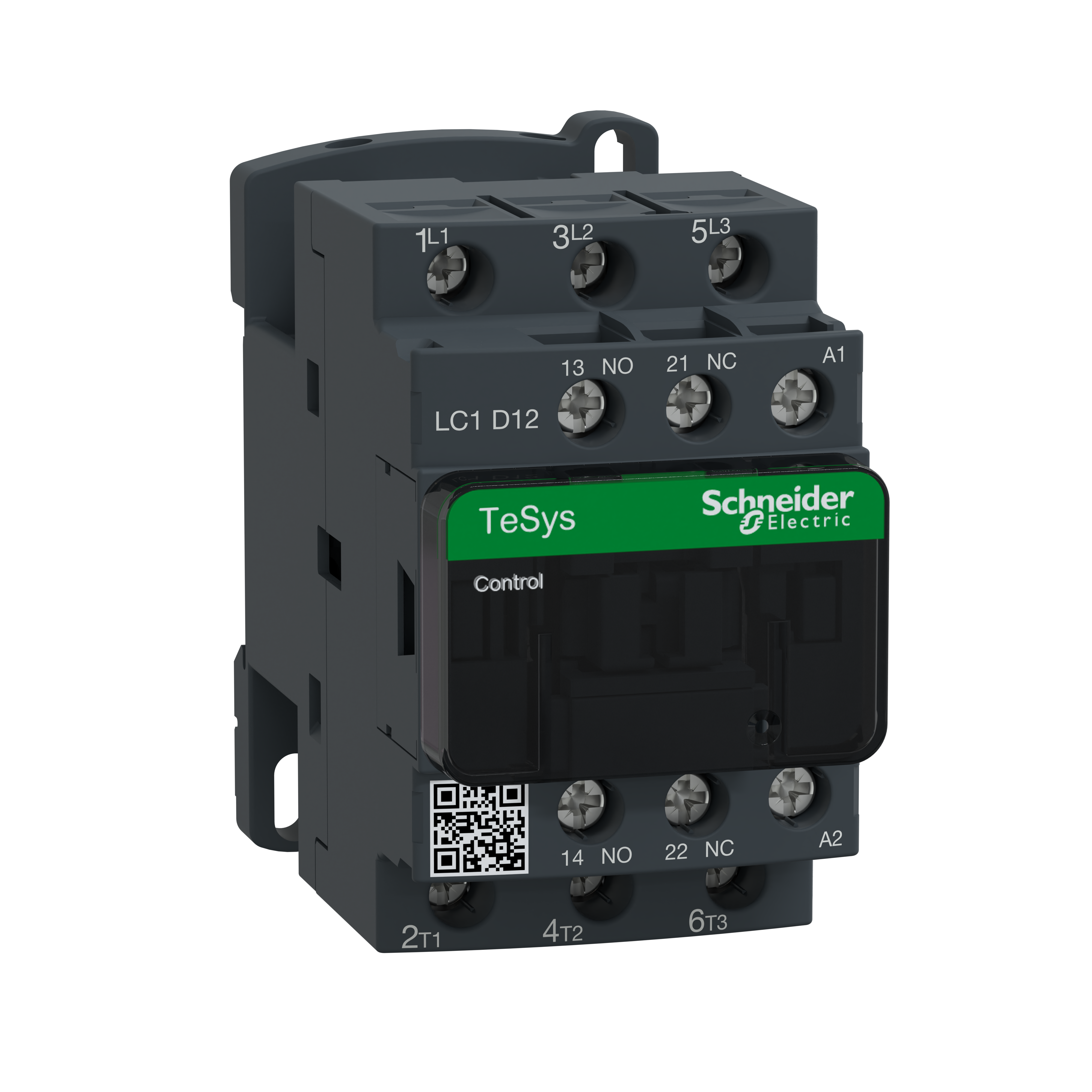

Schneider Electric TeSys™ LC1D12LE7 Standard IEC Contactor With Protective Cover, 208 VAC Coil, 12 A Max Load, 3NO
Custom_Product_Images_Illustration
Schneider Electric TeSys™ LC1D12LE7 Standard IEC Contactor With Protective Cover, 208 VAC Coil, 12 A Max Load, 3NO
SKU97144
MFGR #LC1D12LE7
Your Cost: $143.59/ea
Schneider Electric LC1D12LE7 CONTACTOR 600VAC 12AMP IEC +OPTIONS,208 V AC 50/60 Hz,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D12LE7 CONTACTOR 600VAC 12AMP IEC +OPTIONS,208 V AC 50/60 Hz,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D12LE7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D12LE7 Coil Power Rating 70 VA Inrush/7/7.5 VA Hold-In Coil Voltage 208 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 12 A at 600 VAC Contact Type Non-Reversing Country of Origin MX Currency USD Dimensions 77 mm H x 45 mm W x 86 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 38.26 Gross Volume per Pack Metric 626.97 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.7900 lb Gross Weight per Pack Metric 357.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.8000 in Height [Metric] 11.2000 cm Item Group 22354 Length 11.9000 in Length [Metric] 9.2000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613752&lang=en-us Maximum Load Current 25 A Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 15000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC1D Size 45 MM,77 MM,86 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,UL-GOST-RINA-DNV-CSA-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CCC,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number GV2G445 Terminal Type Screw/Clamp Type Standard UNSPSC 39121529 UPC 11 78590121320 UPC 12 785901213208 Warranty Description Contractual Warranty:18 months Wattage 5.5 kW Width 9.7000 in Width [Metric] 4.9000 cm Resistive load;motor control Without built-in suppressor module Without built-in bi-directional peak limiting diode suppressor coil technology 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D12LE7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D12LE7 |
| Coil Power Rating | 70 VA Inrush/7/7.5 VA Hold-In |
| Coil Voltage | 208 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 12 A at 600 VAC |
| Contact Type | Non-Reversing |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 77 mm H x 45 mm W x 86 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 38.26 |
| Gross Volume per Pack Metric | 626.97 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.7900 lb |
| Gross Weight per Pack Metric | 357.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.8000 in |
| Height [Metric] | 11.2000 cm |
| Item Group | 22354 |
| Length | 11.9000 in |
| Length [Metric] | 9.2000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613752&lang=en-us |
| Maximum Load Current | 25 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 15000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 45 MM,77 MM,86 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,UL-GOST-RINA-DNV-CSA-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CCC,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | GV2G445 |
| Terminal Type | Screw/Clamp |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 78590121320 |
| UPC 12 | 785901213208 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.5 kW |
| Width | 9.7000 in |
| Width [Metric] | 4.9000 cm |
| Resistive load;motor control |
| Without built-in suppressor module |
| Without built-in bi-directional peak limiting diode suppressor coil technology |
| 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current |
