Schneider Electric

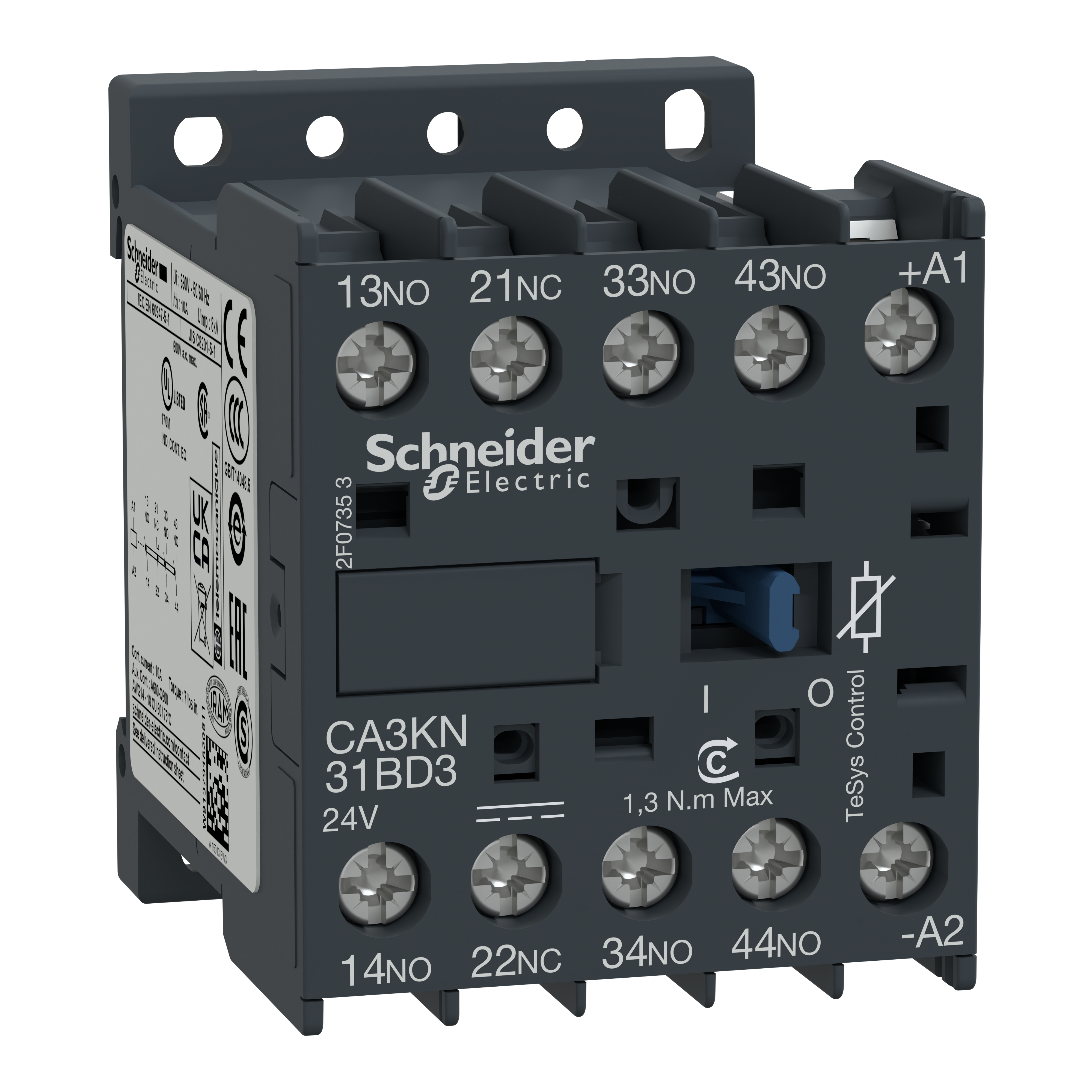

Schneider Electric TeSys™ K Series Control Relay, 10 A, 3NO-1NC Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ K Series Control Relay, 10 A, 3NO-1NC Contact Form, 24 VDC Coil
SKU176879
MFGR #CA3KN31BD3
Your Cost: $80.11/ea
Schneider Electric CA3KN31BD3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS,-25...50 deg.C,10 A at <= 50 deg.C,24VDC,3 NO + 1 NC,IP2x,Screw Clamp,TeSys,UL Listed File Number 164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked,control circuit,control relay,rail-plate
Schneider Electric CA3KN31BD3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS,-25...50 deg.C,10 A at <= 50 deg.C,24VDC,3 NO + 1 NC,IP2x,Screw Clamp,TeSys,UL Listed File Number 164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked,control circuit,control relay,rail-plate
Alternate Catalog Number CA3KN31BD3 Amperage Rating 10 A Application Control circuit ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number CA3KN31BD3 Coil 24 V DC;Built-in bidirectional peak limiting diode suppressor Coil Voltage 24 VDC Contact Configuration 3 NO + 1 NC Contact Form 3NO-1NC Contact Rating 10 A at 600 VAC Country of Origin FR Currency USD Dimensions 2.28 in H x 1.77 in W x 2.24 in D Enclosure IP2X Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 400 Hz Gross Volume Per Pack 11.86 Gross Volume per Pack Metric 194.35 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4900 lb Gross Weight per Pack Metric 221.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410050 Height 6.5000 in Height [Metric] 6.5000 cm Item Group 22371 Length 4.8000 in Length [Metric] 4.8000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=596176&lang=en-us Mounting Rail;plate Mounting Type Surface Operating Temperature -25-50 A°C Returnable N Series K Series Size 2.24 in Standard IP2X,UL-CSA,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 Stock Status NONSTOCK Sub Brand TESYS Substitute Product Catalog Number LA1KN13 Temperature Rating -25 to 50 °C Terminal Type Screw/Clamp Type CONTROL RELAY UNSPSC 39122331 UPC 11 78590108306 UPC 12 785901083061 Warranty Description Contractual Warranty:18 months Width 6.0000 in Width [Metric] 6.0000 cm Control circuit 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 750 VAC conforming to VDE 0110 group C rated insulation voltage 10 ms coil de-energization and NO opening, 15 ms coil de-energization and NC closing, 25 to 35 ms coil energization and NC opening, 30 to 40 ms coil energization and NO closing operating time 10000 cycles/hr operating rate 3 W heat dissipation 17 VAC minimum switching voltage 5 mA minimum switching current -58 to 176 deg F storage temperature 690 VAC system voltage 690 VAC system voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CA3KN31BD3 |
| Amperage Rating | 10 A |
| Application | Control circuit |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | CA3KN31BD3 |
| Coil | 24 V DC;Built-in bidirectional peak limiting diode suppressor |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3 NO + 1 NC |
| Contact Form | 3NO-1NC |
| Contact Rating | 10 A at 600 VAC |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 2.28 in H x 1.77 in W x 2.24 in D |
| Enclosure | IP2X |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 400 Hz |
| Gross Volume Per Pack | 11.86 |
| Gross Volume per Pack Metric | 194.35 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4900 lb |
| Gross Weight per Pack Metric | 221.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410050 |
| Height | 6.5000 in |
| Height [Metric] | 6.5000 cm |
| Item Group | 22371 |
| Length | 4.8000 in |
| Length [Metric] | 4.8000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=596176&lang=en-us |
| Mounting | Rail;plate |
| Mounting Type | Surface |
| Operating Temperature | -25-50 A°C |
| Returnable | N |
| Series | K Series |
| Size | 2.24 in |
| Standard | IP2X,UL-CSA,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS |
| Substitute Product Catalog Number | LA1KN13 |
| Temperature Rating | -25 to 50 °C |
| Terminal Type | Screw/Clamp |
| Type | CONTROL RELAY |
| UNSPSC | 39122331 |
| UPC 11 | 78590108306 |
| UPC 12 | 785901083061 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.0000 in |
| Width [Metric] | 6.0000 cm |
| Control circuit |
| 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 750 VAC conforming to VDE 0110 group C rated insulation voltage |
| 10 ms coil de-energization and NO opening, 15 ms coil de-energization and NC closing, 25 to 35 ms coil energization and NC opening, 30 to 40 ms coil energization and NO closing operating time |
| 10000 cycles/hr operating rate |
| 3 W heat dissipation |
| 17 VAC minimum switching voltage |
| 5 mA minimum switching current |
| -58 to 176 deg F storage temperature |
| 690 VAC system voltage |
| 690 VAC system voltage |
