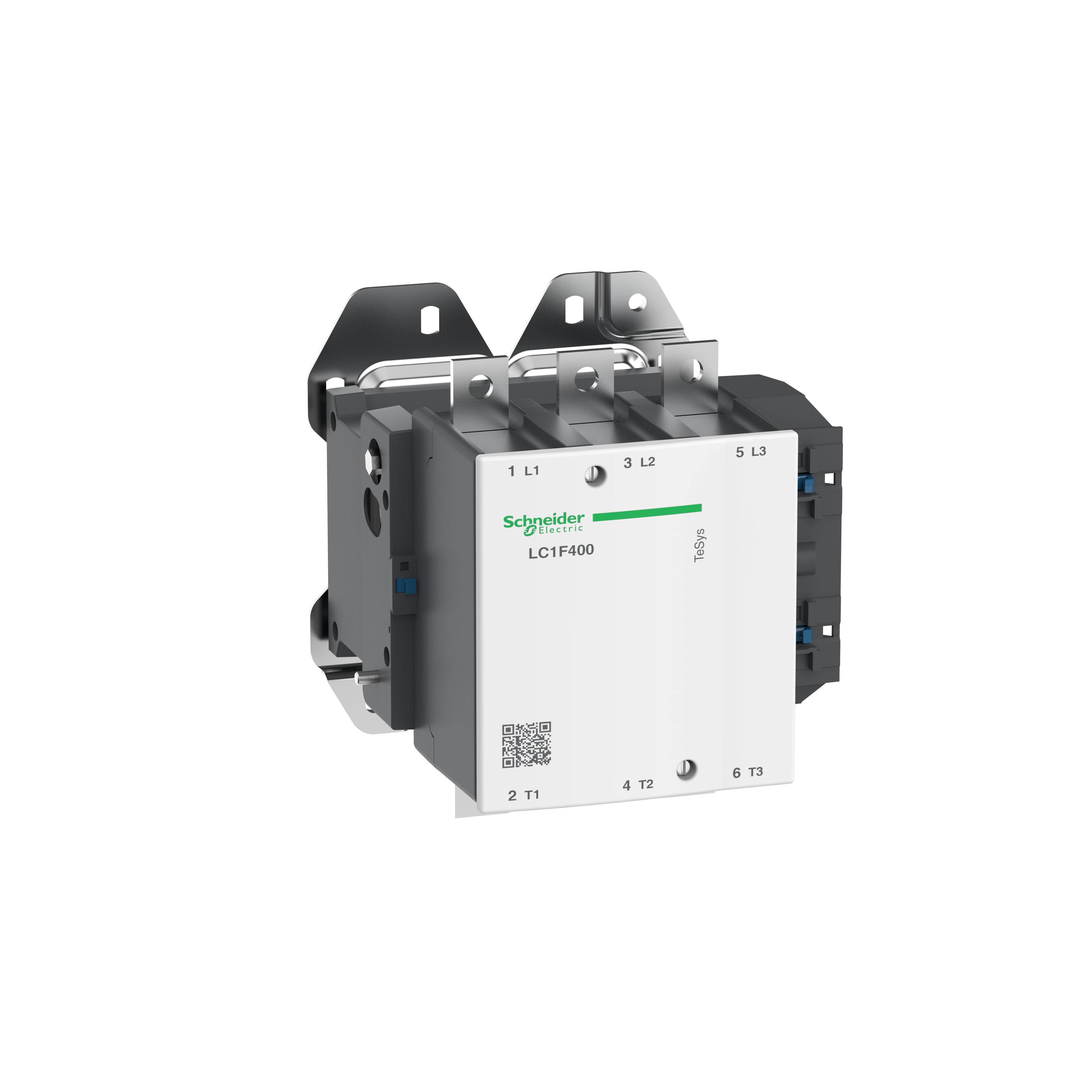

Schneider Electric TeSys™ F LC1F IEC Contactor LC1F400, 400 A Max Load, 3NO, 3 Poles
Contactors
96532
MFG #: LC1F400
Schneider Electric
2049.33000
/ ea
Schneider Electric LC1F400 CONTACTOR 600VAC 400AMP IEC +OPTIONS,-5C to 55C,16.66-200Hz,3,3-Pole,400A inductive, 500A resistive,Bolt on or Lugs (sold separately),Contactor only (no coil),IEC Contactor and starter applications. Both Inductive and resistive current values,Non-Reversing Contactor,Panel Mount,TeSys,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,Up to 600VAC (UL), 400A inductive, 500A Resistive
- Brochure URL - 11003_KSGYFRZ9O1J6MP3N.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_LC1F500_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WPRQF1HY3JVAKSU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_4B8RSO5LX2YCKNQJ.pdf(Service Manual URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1F400_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_XTYNUCAIQPS0ODR7.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_L5ORW7I98GB1YNJE.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Applications
- Features
| Resistive load;motor control |
| CONTACTOR ONLY (NO COIL) |
| 8 kV rated impulse withstand voltage |
| III overvoltage category |
| 500 A at <=104 deg F (40 deg C) conventional free air thermal current |
| 3200 A conforming to IEC 60947-4-1 rated breaking capacity |
| 400 A aM at <=440 V/500 A gG at <=440 V associated fuse rating |
| 0.26 mOhm at 50 Hz to Ith 500 A average impedance |
| 1000 V conforming to IEC 60947-4-1/1500 V conforming to VDE 0110 group C rated insulation voltage |
| 88.5 lbf-in tightening torque power circuit |
| 100 to 170 ms closing/40 to 65 ms opening operating time |
| 2400 cycles/hr at <=131 deg F (55 deg C) operating rate |
| 1075 VA at 68 deg F (20 deg C) 40 to 400 Hz inrush power |
| 10 VA at 68 deg F (20 deg C) 40 to 400 Hz hold-in power consumption |
| 14 W heat dissipation |
| TH protective treatment |
| -40 to 158 deg F permissible ambient air temperature around the device |
| 9842.52 ft without derating in temperature operating altitude |
| Vibrations contactor closed 6 gn, 5 to 300 Hz/shocks contactor open 9 gn for 11 ms/vibrations contactor open 2 gn, 5 to 300 Hz/shocks contactor closed 15 gn for 11 ms mechanical robustness |
| 75 kW at 400 VAC 50/60 Hz AC-4, 200 kW at 380 to 400 VAC 50/60 Hz AC-3, 220 kW at 415 VAC 50/60 Hz AC-3, 250 kW at 440 VAC 50/60 Hz AC-3 motor power |
| 257 kW at 500 VAC 50/60 Hz AC-3 280 kW at 660 to 690 VAC 50/60 Hz AC-3, 185 kW at 1000 VAC 50/60 Hz AC-3, 110 kW at 220 to 230 VAC 50/60 Hz AC-3 motor power |
| 65 W (AC-1), 42 W (AC-3) power dissipation per pole |
