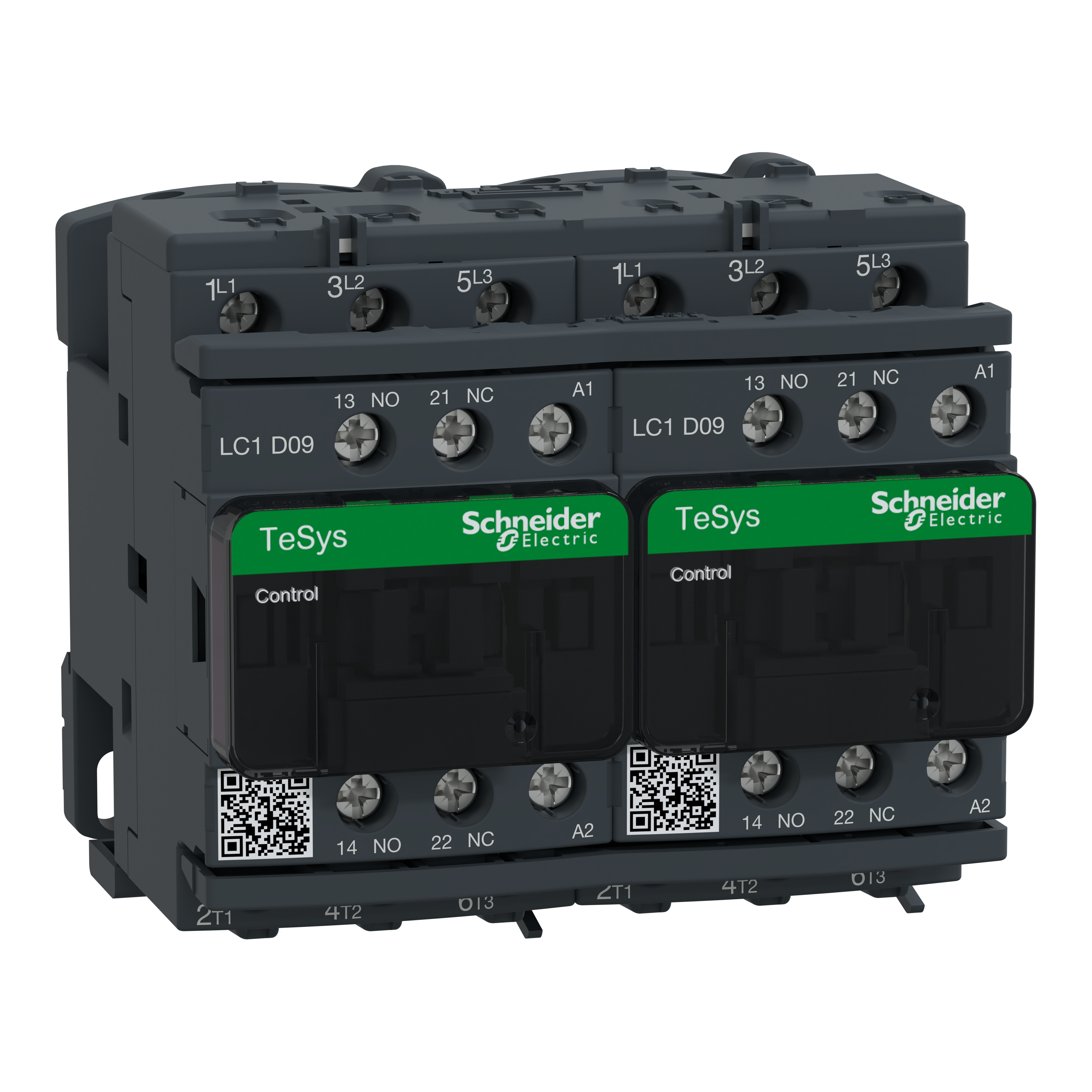

Schneider Electric TeSys™ D LC2D Reversing IEC Contactor With Protective Cover, 110 VAC Coil, 0.375 Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ D LC2D Reversing IEC Contactor With Protective Cover, 110 VAC Coil, 0.375 Max Load, 3NO, 3 Poles
SKU52002
MFGR #LC2D09F7
Your Cost: $289.37/ea
Schneider Electric LC2D09F7 REVERSING CONTACTOR 575VAC 9A IEC,110 V AC 50/60 Hz,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,mechanical,3 NO,3P,LC2D,motor control-resistive load,LC2D,reversing contactor,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC2D09F7 REVERSING CONTACTOR 575VAC 9A IEC,110 V AC 50/60 Hz,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,mechanical,3 NO,3P,LC2D,motor control-resistive load,LC2D,reversing contactor,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC2D09F7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC2D09F7 Coil Power Rating 7-1/2 hp Coil Voltage 110 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 9 A at 575 VAC Contact Type Reversing Country of Origin ID Currency USD Dimensions 3.03 in H x 3.54 in W x 3.39 in D Enclosure Type IP20 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 86.94 Gross Volume per Pack Metric 1424.69 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.8200 lb Gross Weight per Pack Metric 810.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 11.3000 in Height [Metric] 11.3000 cm Item Group 22354 Length 13.5000 in Length [Metric] 13.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1474657&lang=en-us Maximum Load Current 25 A Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 15000000 Operating Temperature -4 to 140 Returnable Y Series D-Line LC2D Size 77 MM,86 MM,90 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-RINA-BV-CSA-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL-CCC,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NORMALLY STOCKED Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Terminal Type Screw/Clamp Type LC1D D-Line UNSPSC 39121529 UPC 11 78590120737 UPC 12 785901207375 Warranty Description Contractual Warranty:18 months Wattage 1.56/0.2 W Width 9.5000 in Width [Metric] 9.5000 cm Resistive load;motor control 0.5 HP 115 V AC 60 HZ 1 PHASE-1 HP 230/240 V AC 60 HZ 1 PHASE-2 HP 200/208 V AC 60 HZ 3 PHASE-2 HP 230/240 V AC 60 HZ 3 PHASE-5 HP 460/480 V AC 60 HZ 3 PHASE-7.5 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE Pre-assembled with reversing power busbar 6 kV conforming to IEC 60947 rated impulse withstand voltage III overvoltage category 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity 20 A gG at 690 V coordination type 2-power circuit, 25 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating 2.5 mOhm at 50 Hz - Ith 25 A power circuit average impedance Mechanical interlock 4 to 19 ms opening/12 to 22 ms closing operating time 3600 cycles/hr at <=140 deg F (60 deg C) operating rate Without built-in suppressor module coil technology 70 VA at 68 deg F 50/60 Hz inrush power 7.5 VA at 68 deg F (20 deg C) 60 Hz/7 VA at 68 deg F (20 deg C) 50 Hz hold-in power consumption 2 to 3 W at 60 Hz heat dissipation 25 to 400 Hz signaling circuit frequency 5 mA signaling circuit minimum switching current 17 V signaling circuit minimum switching voltage, TH protective treatment 1.5 ms on de-energisation (between NC and NO contacts)/1.5 ms on energisation (between NC and NO contacts) non-overlap time, >10 MOhm signaling circuit insulation resistance -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC2D09F7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC2D09F7 |
| Coil Power Rating | 7-1/2 hp |
| Coil Voltage | 110 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 9 A at 575 VAC |
| Contact Type | Reversing |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 3.03 in H x 3.54 in W x 3.39 in D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 86.94 |
| Gross Volume per Pack Metric | 1424.69 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.8200 lb |
| Gross Weight per Pack Metric | 810.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.3000 in |
| Height [Metric] | 11.3000 cm |
| Item Group | 22354 |
| Length | 13.5000 in |
| Length [Metric] | 13.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1474657&lang=en-us |
| Maximum Load Current | 25 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 15000000 |
| Operating Temperature | -4 to 140 |
| Returnable | Y |
| Series | D-Line LC2D |
| Size | 77 MM,86 MM,90 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-RINA-BV-CSA-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL-CCC,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Terminal Type | Screw/Clamp |
| Type | LC1D D-Line |
| UNSPSC | 39121529 |
| UPC 11 | 78590120737 |
| UPC 12 | 785901207375 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56/0.2 W |
| Width | 9.5000 in |
| Width [Metric] | 9.5000 cm |
| Resistive load;motor control |
| 0.5 HP 115 V AC 60 HZ 1 PHASE-1 HP 230/240 V AC 60 HZ 1 PHASE-2 HP 200/208 V AC 60 HZ 3 PHASE-2 HP 230/240 V AC 60 HZ 3 PHASE-5 HP 460/480 V AC 60 HZ 3 PHASE-7.5 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Pre-assembled with reversing power busbar |
| 6 kV conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity |
| 20 A gG at 690 V coordination type 2-power circuit, 25 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 2.5 mOhm at 50 Hz - Ith 25 A power circuit average impedance |
| Mechanical interlock |
| 4 to 19 ms opening/12 to 22 ms closing operating time |
| 3600 cycles/hr at <=140 deg F (60 deg C) operating rate |
| Without built-in suppressor module coil technology |
| 70 VA at 68 deg F 50/60 Hz inrush power |
| 7.5 VA at 68 deg F (20 deg C) 60 Hz/7 VA at 68 deg F (20 deg C) 50 Hz hold-in power consumption |
| 2 to 3 W at 60 Hz heat dissipation |
| 25 to 400 Hz signaling circuit frequency |
| 5 mA signaling circuit minimum switching current |
| 17 V signaling circuit minimum switching voltage, TH protective treatment |
| 1.5 ms on de-energisation (between NC and NO contacts)/1.5 ms on energisation (between NC and NO contacts) non-overlap time, >10 MOhm signaling circuit insulation resistance |
| -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature |
