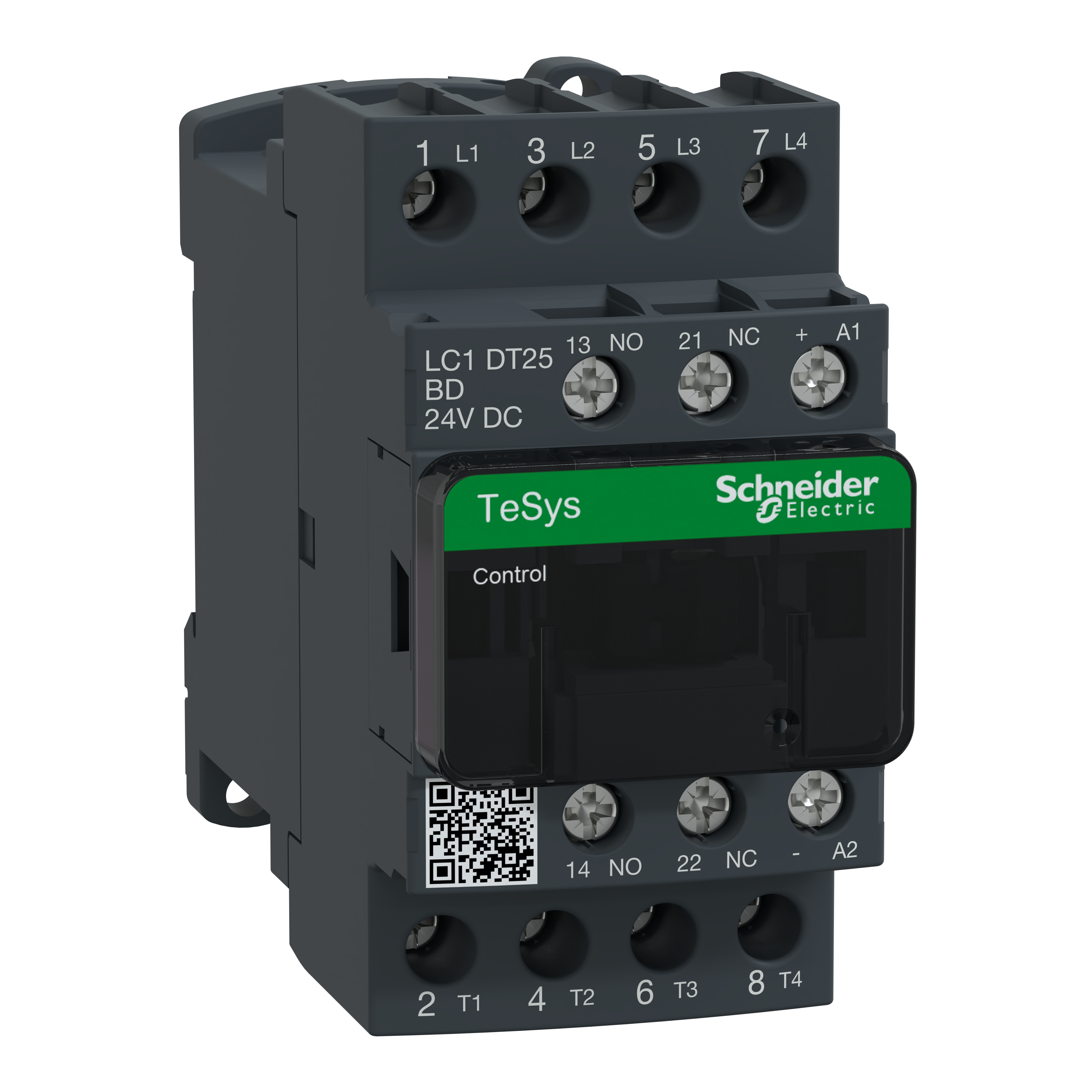

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 24 VDC Coil, 25 A Max Load, 4NO, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 24 VDC Coil, 25 A Max Load, 4NO, 4 Poles
SKU107370
MFGR #LC1DT25BD
Your Cost: $166.93/ea
Schneider Electric LC1DT25BD CONTACTOR 600VAC 25AMP IEC + OPTIONS,24 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1DT25BD CONTACTOR 600VAC 25AMP IEC + OPTIONS,24 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1DT25BD Application Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1DT25BD Coil Power Rating 5.4 W Inrush/Hold-In Coil Voltage 24 VDC Connection Type Screw Clamp Contact Configuration 4NO Contact Rating 25 A at 600 VAC Country of Origin SG Currency USD Dimensions 3.35 in H x 1.77 in W x 3.9 in D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 32.56 Gross Volume per Pack Metric 533.56 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.2100 lb Gross Weight per Pack Metric 548.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410045 Height 5.5000 in Height [Metric] 5.5000 cm Item Group 22355 Length 12.0000 in Length [Metric] 12.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620148&lang=en-us Maximum Load Current 25 A Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 30000000 Operating Temperature -23 to 140 Returnable Y Series D-Line LC1D Size 45 MM,85 MM,99 MM Standard 850 A°C IEC 60695-2-1,CCC-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-DNV-RINA-UL-GOST,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Substitute Product Catalog Number LAD6K10B Terminal Type Screw/Clamp Type CONTACTOR UNSPSC 39121529 UPC 11 78590161064 UPC 12 785901610649 Warranty Description Contractual Warranty:18 months Wattage 1.56 W Width 9.5000 in Width [Metric] 9.5000 cm Resistive load BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR DC standard circuit Conforming to IEC 60947 rated impulse withstand voltage III overvoltage category 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity 25 A gG at 690 V coordination type 2-power circuit, 40 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating 2.5 MOhm at 50 Hz, Ith 20 A power circuit average impedance 53.55 to 72.45 ms closing and 16 to 24 ms opening operating time 3600 cycles/hr at 140 deg F operating rate Built-in bi-directional peak limiting diode suppressor coil technology 28 ms time constant 5.4 W at 68 deg F 50/60 Hz inrush power 5.4 W at 68 deg F 50/60 Hz hold-in power consumption 25 to 400 Hz signaling circuit frequency 5 mA minimum switching current 17 VAC signaling circuit minimum switching voltage 1.5 ms on de-energization (between NC and NO contacts)/1.5 ms on energization (between NC and NO contacts) non-overlap time >10 MOhm signaling circuit insulation resistance TH protective treatment
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1DT25BD |
| Application | Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1DT25BD |
| Coil Power Rating | 5.4 W Inrush/Hold-In |
| Coil Voltage | 24 VDC |
| Connection Type | Screw Clamp |
| Contact Configuration | 4NO |
| Contact Rating | 25 A at 600 VAC |
| Country of Origin | SG |
| Currency | USD |
| Dimensions | 3.35 in H x 1.77 in W x 3.9 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 32.56 |
| Gross Volume per Pack Metric | 533.56 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.2100 lb |
| Gross Weight per Pack Metric | 548.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 5.5000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22355 |
| Length | 12.0000 in |
| Length [Metric] | 12.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620148&lang=en-us |
| Maximum Load Current | 25 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 30000000 |
| Operating Temperature | -23 to 140 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 45 MM,85 MM,99 MM |
| Standard | 850 A°C IEC 60695-2-1,CCC-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-DNV-RINA-UL-GOST,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LAD6K10B |
| Terminal Type | Screw/Clamp |
| Type | CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 78590161064 |
| UPC 12 | 785901610649 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56 W |
| Width | 9.5000 in |
| Width [Metric] | 9.5000 cm |
| Resistive load |
| BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| DC standard circuit |
| Conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity |
| 25 A gG at 690 V coordination type 2-power circuit, 40 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 2.5 MOhm at 50 Hz, Ith 20 A power circuit average impedance |
| 53.55 to 72.45 ms closing and 16 to 24 ms opening operating time |
| 3600 cycles/hr at 140 deg F operating rate |
| Built-in bi-directional peak limiting diode suppressor coil technology |
| 28 ms time constant |
| 5.4 W at 68 deg F 50/60 Hz inrush power |
| 5.4 W at 68 deg F 50/60 Hz hold-in power consumption |
| 25 to 400 Hz signaling circuit frequency |
| 5 mA minimum switching current |
| 17 VAC signaling circuit minimum switching voltage |
| 1.5 ms on de-energization (between NC and NO contacts)/1.5 ms on energization (between NC and NO contacts) non-overlap time |
| >10 MOhm signaling circuit insulation resistance |
| TH protective treatment |
