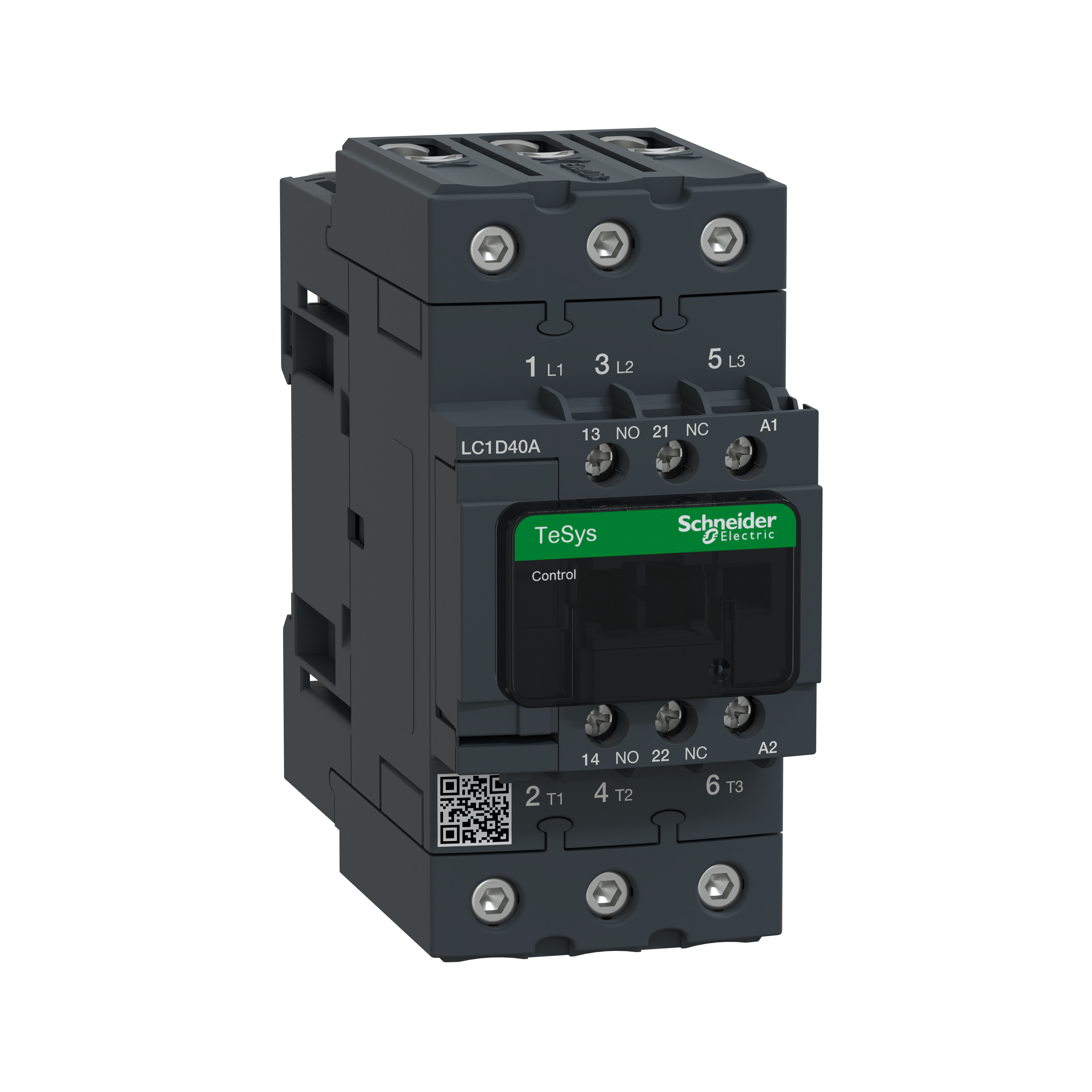

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 220 VAC Coil, 40 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 220 VAC Coil, 40 A Max Load, 3NO, 3 Poles
SKU636604
MFGR #LC1D40AM7
Your Cost: $263.04/ea
Schneider Electric LC1D40AM7 TeSys D 3P Everlink AC Contactor AC3 40A IEC,220 V AC 50/60 Hz,3 NO,3P,60 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D40AM7 TeSys D 3P Everlink AC Contactor AC3 40A IEC,220 V AC 50/60 Hz,3 NO,3P,60 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D40AM7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D40AM7 Coil Power Rating 30 hp Coil Voltage 220 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 40 A at 440 VAC Country of Origin ID Currency USD Dimensions 4.8 in H x 2.17 in W x 4.72 in D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 77.76 Gross Volume per Pack Metric 1274.25 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.0200 lb Gross Weight per Pack Metric 915.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 6.2000 in Height [Metric] 6.2000 cm Item Group 22357 Length 15.2000 in Length [Metric] 15.2000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472235&lang=en-us Maximum Load Current 60 A Mounting PLATE-RAIL Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 6000000 Operating Temperature -23 to 140 Returnable Y Series D-Line LC1D Size 120 MM,122 MM,55 MM Standard 850 A°C IEC 60695-2-1,CCC-GOST-UL-CSA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LAD8N11 Terminal Type Screw/Clamp Type LC1D D-Line UNSPSC 39121529 UPC 11 78590173490 UPC 12 785901734901 Warranty Description Contractual Warranty:18 months Wattage 5.4/2.4 kW Width 13.5000 in Width [Metric] 13.5000 cm Resistive load;motor control Without built-in suppressor module 60 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current 800 A at 440 VAC power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity 80 A gG at 690 VAC coordination type 2-power circuit/80 A gG at 690 VAC coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating 140 VA at 68 deg F 60 Hz, 160 VA at 68 deg F 50 Hz inrush power 13 VA at 68 deg F 60 Hz, 15 VA at 68 deg F 50 Hz hold-in power consumption
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D40AM7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D40AM7 |
| Coil Power Rating | 30 hp |
| Coil Voltage | 220 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 40 A at 440 VAC |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 4.8 in H x 2.17 in W x 4.72 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 77.76 |
| Gross Volume per Pack Metric | 1274.25 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.0200 lb |
| Gross Weight per Pack Metric | 915.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2000 in |
| Height [Metric] | 6.2000 cm |
| Item Group | 22357 |
| Length | 15.2000 in |
| Length [Metric] | 15.2000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472235&lang=en-us |
| Maximum Load Current | 60 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 6000000 |
| Operating Temperature | -23 to 140 |
| Returnable | Y |
| Series | D-Line LC1D |
| Size | 120 MM,122 MM,55 MM |
| Standard | 850 A°C IEC 60695-2-1,CCC-GOST-UL-CSA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD8N11 |
| Terminal Type | Screw/Clamp |
| Type | LC1D D-Line |
| UNSPSC | 39121529 |
| UPC 11 | 78590173490 |
| UPC 12 | 785901734901 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.4/2.4 kW |
| Width | 13.5000 in |
| Width [Metric] | 13.5000 cm |
| Resistive load;motor control |
| Without built-in suppressor module |
| 60 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 800 A at 440 VAC power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 80 A gG at 690 VAC coordination type 2-power circuit/80 A gG at 690 VAC coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 140 VA at 68 deg F 60 Hz, 160 VA at 68 deg F 50 Hz inrush power |
| 13 VA at 68 deg F 60 Hz, 15 VA at 68 deg F 50 Hz hold-in power consumption |
