Schneider Electric

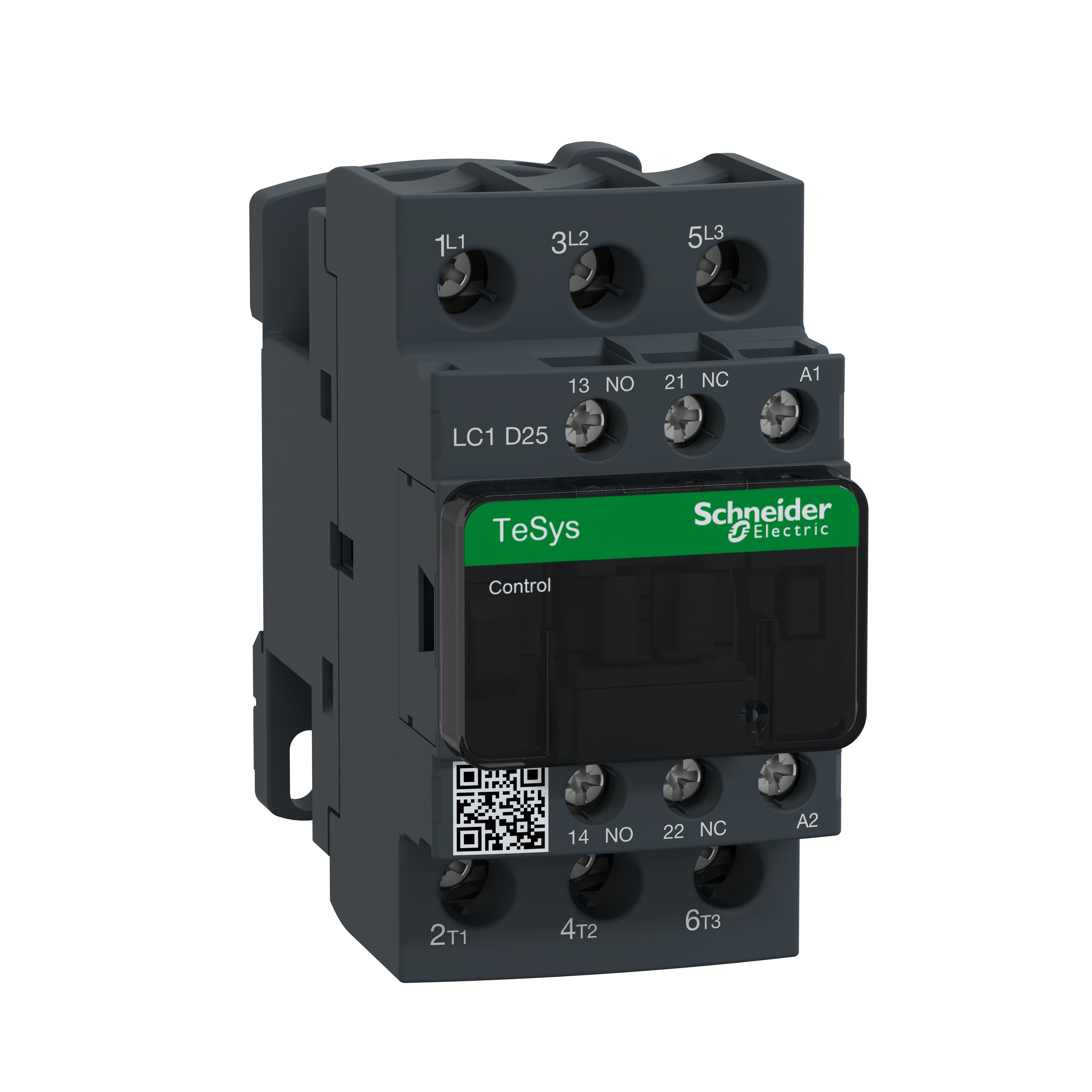

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 208 VAC Coil, 25 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 208 VAC Coil, 25 A Max Load, 3NO, 3 Poles
SKU291636
MFGR #LC1D25LE7
Your Cost: $190.90/ea
Schneider Electric LC1D25LE7 CONTACTOR 600VAC 25AMP IEC +OPTIONS,208 V AC 50/60 Hz,3 NO,3P,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D25LE7 CONTACTOR 600VAC 25AMP IEC +OPTIONS,208 V AC 50/60 Hz,3 NO,3P,40 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D25LE7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D25LE7 Coil Power Rating 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) Coil Voltage 208 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 25 A, 440 VAC Country of Origin FR Currency USD Dimensions 3.35 in H x 1.77 in W x 3.62 in D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 35.74 Gross Volume per Pack Metric 585.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.9100 lb Gross Weight per Pack Metric 415.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.0000 in Height [Metric] 5.0000 cm Item Group 22354 Length 11.1400 in Length [Metric] 11.1400 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615722&lang=en-us Maximum Load Current 25 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 15000000 Operating Temperature -4 to 140 Returnable Y Series LC1D Size 45 MM,85 MM,92 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-RINA-UL-GOST-DNV-BV-GL-CCC-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Substitute Product Catalog Number LAD4RCG Terminal Type Screw/Clamp Type CONTACTOR UNSPSC 39121529 UPC 11 78590121321 UPC 12 785901213215 Warranty Description Contractual Warranty:18 months Wattage 3.2, 1.25 W Width 9.2000 in Width [Metric] 9.2000 cm Resistive load;motor control Without built-in suppressor module
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D25LE7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D25LE7 |
| Coil Power Rating | 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) |
| Coil Voltage | 208 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 25 A, 440 VAC |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.35 in H x 1.77 in W x 3.62 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 35.74 |
| Gross Volume per Pack Metric | 585.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.9100 lb |
| Gross Weight per Pack Metric | 415.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.0000 in |
| Height [Metric] | 5.0000 cm |
| Item Group | 22354 |
| Length | 11.1400 in |
| Length [Metric] | 11.1400 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615722&lang=en-us |
| Maximum Load Current | 25 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 15000000 |
| Operating Temperature | -4 to 140 |
| Returnable | Y |
| Series | LC1D |
| Size | 45 MM,85 MM,92 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-RINA-UL-GOST-DNV-BV-GL-CCC-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LAD4RCG |
| Terminal Type | Screw/Clamp |
| Type | CONTACTOR |
| UNSPSC | 39121529 |
| UPC 11 | 78590121321 |
| UPC 12 | 785901213215 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3.2, 1.25 W |
| Width | 9.2000 in |
| Width [Metric] | 9.2000 cm |
| Resistive load;motor control |
| Without built-in suppressor module |
