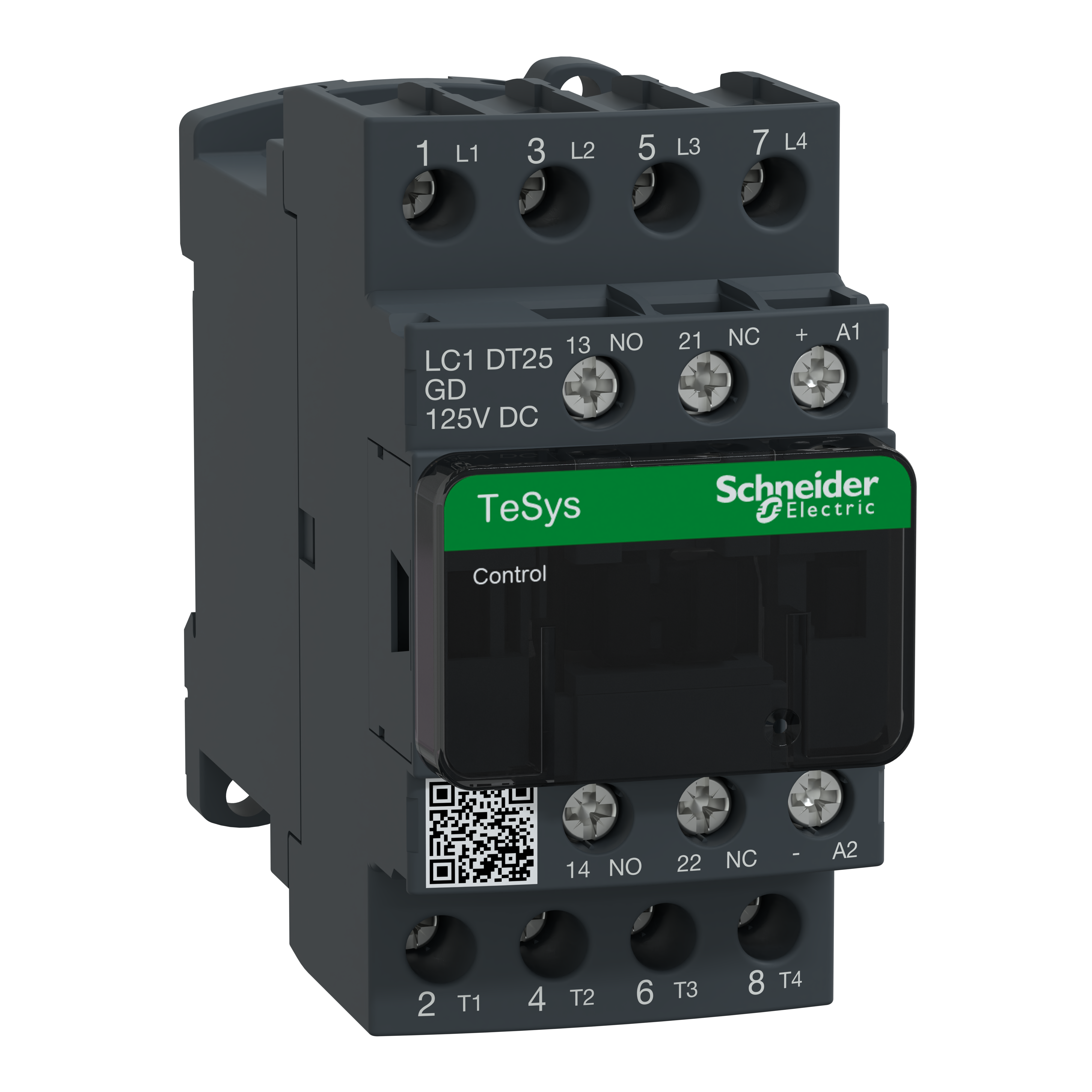

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 125 VDC Coil, 25 A Max Load, 4NO, 4 Poles
Custom_Product_Images_Illustration
Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 125 VDC Coil, 25 A Max Load, 4NO, 4 Poles
SKU908166
MFGR #LC1DT25GD
Your Cost: $214.37/ea
Schneider Electric LC1DT25GD CONTACTOR 600VAC 25AMP IEC + OPTIONS,125 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1DT25GD CONTACTOR 600VAC 25AMP IEC + OPTIONS,125 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1DT25GD Application Resistive load ARRA Compliant N Buy American Compliant N Catalog Number LC1DT25GD Coil Power Rating 5.4 W Inrush/Hold-In Connection Type Screw Clamp Contact Rating 25 A at 600 VAC Country of Origin ID Currency USD Dimensions 3.35 in H x 1.77 in W x 3.9 in D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 36.52 Gross Volume per Pack Metric 598.45 Gross Weight Per Pack 1.1800 lb Gross Weight per Pack Metric 533.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.5000 in Height [Metric] 5.5000 cm Item Group 22355 Length 12.0000 in Length [Metric] 12.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620176&lang=en-us Mounting RAIL-PLATE Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 30000000 Operating Temperature -23 to 140 Returnable N Series D-Line LC1D Size 45 MM,85 MM,99 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-RINA-BV-GL-CCC-DNV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA,IP20 FRONT FACE IEC 60529,V1 UL 94 Sub Brand TESYS D Terminal Type Screw/Clamp UNSPSC 39121529 UPC 11 78590168423 UPC 12 785901684237 Warranty Description Contractual Warranty:18 months Wattage 1.56 W Width 9.5000 in Width [Metric] 9.5000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 125 VDC Contact Configuration 4NO Maximum Load Current 25 A Type CONTACTOR Resistive load BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity 25 A gG at 690 V coordination type 2-power circuit, 40 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating Built-in bi-directional peak limiting diode suppressor coil technology
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1DT25GD |
| Application | Resistive load |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1DT25GD |
| Coil Power Rating | 5.4 W Inrush/Hold-In |
| Connection Type | Screw Clamp |
| Contact Rating | 25 A at 600 VAC |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 3.35 in H x 1.77 in W x 3.9 in D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 36.52 |
| Gross Volume per Pack Metric | 598.45 |
| Gross Weight Per Pack | 1.1800 lb |
| Gross Weight per Pack Metric | 533.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.5000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22355 |
| Length | 12.0000 in |
| Length [Metric] | 12.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620176&lang=en-us |
| Mounting | RAIL-PLATE |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 30000000 |
| Operating Temperature | -23 to 140 |
| Returnable | N |
| Series | D-Line LC1D |
| Size | 45 MM,85 MM,99 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-RINA-BV-GL-CCC-DNV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Sub Brand | TESYS D |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590168423 |
| UPC 12 | 785901684237 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56 W |
| Width | 9.5000 in |
| Width [Metric] | 9.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 125 VDC |
| Contact Configuration | 4NO |
| Maximum Load Current | 25 A |
| Type | CONTACTOR |
| Resistive load |
| BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| 25 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 250 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 25 A gG at 690 V coordination type 2-power circuit, 40 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| Built-in bi-directional peak limiting diode suppressor coil technology |
