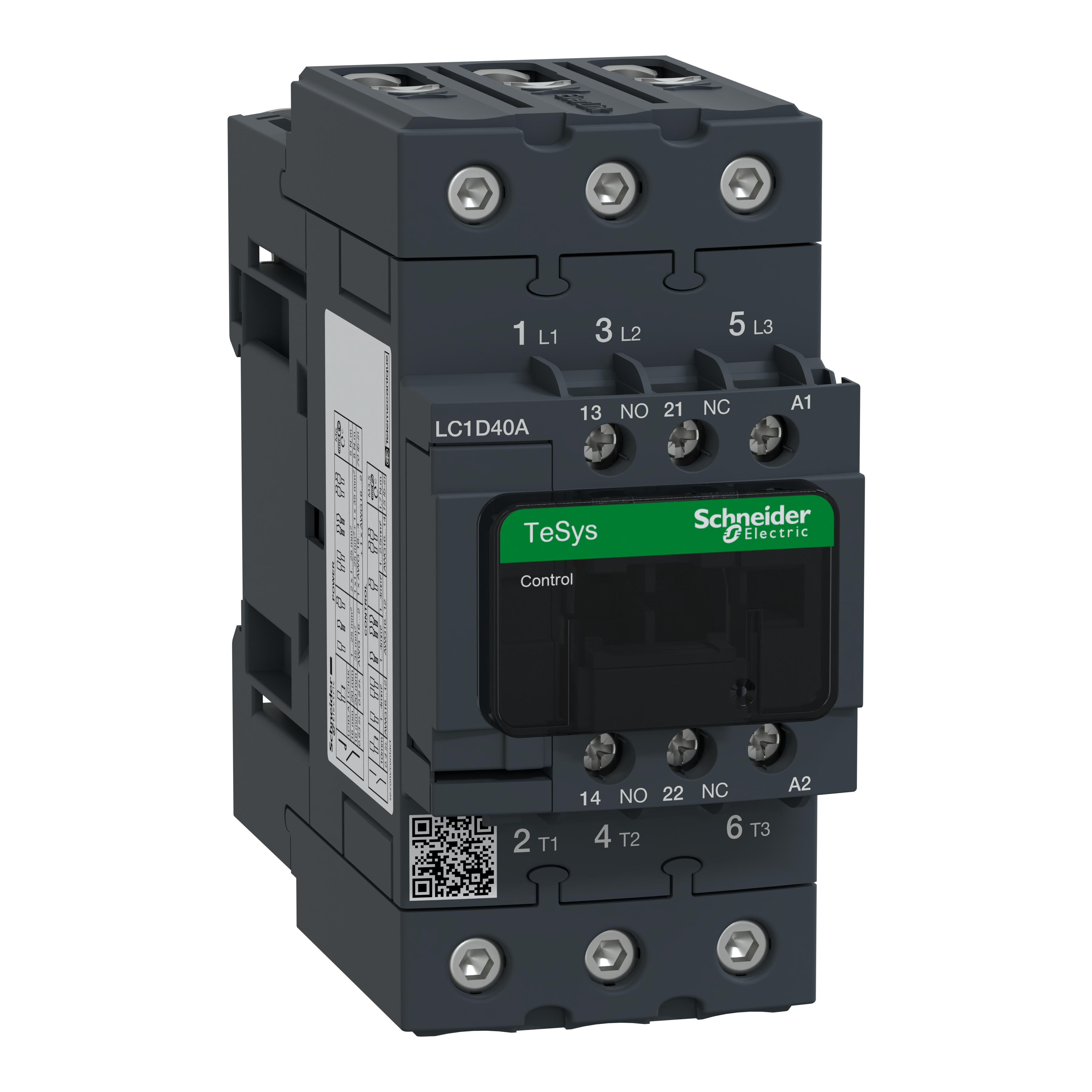

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 110 VAC Coil, 40 A Max Load, 3NO, 3 Poles
Contactors
509363
MFG #: LC1D40AF7
Schneider Electric
311.62000
/ ea
Schneider Electric LC1D40AF7 TeSys D 3P Everlink AC Contactor AC3 40A IEC,110 V AC 50/60 Hz,3 NO,3P,60 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=10660302360Den&ext=webp(360 Degree View URL)
- Install Instructions 1 URL - 11003_0JINVA2MQ3LBUPK4.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D40AF7_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_WEJC1ZNTS3GF5P0H.pdf(Service Manual URL)
- Tech Drawing URL - 11003_PMW1VLN3EYH27U56.zip(Tech Drawing URL)
- Spec Sheet URL - 11003_4Q3LZGI0DVTNS1JR.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_7NHWXATPUL9DBS8Z.zip(Tech Drawing URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1D40AF7_Datasheet.pdf(Spec Sheet 1 URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Service Manual URL - 11003_UMBHNKLGJPQ3C6FA.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/ZspiS_-OK5U(Video)
- Applications
- Features
| Resistive load;motor control |
| Without built-in suppressor module |
| 60 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 800 A at 440 VAC power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 80 A gG at 690 VAC coordination type 2-power circuit/80 A gG at 690 VAC coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 140 VA at 68 deg F 60 Hz, 160 VA at 68 deg F 50 Hz inrush power |
| 13 VA at 68 deg F 60 Hz, 15 VA at 68 deg F 50 Hz hold-in power consumption |
