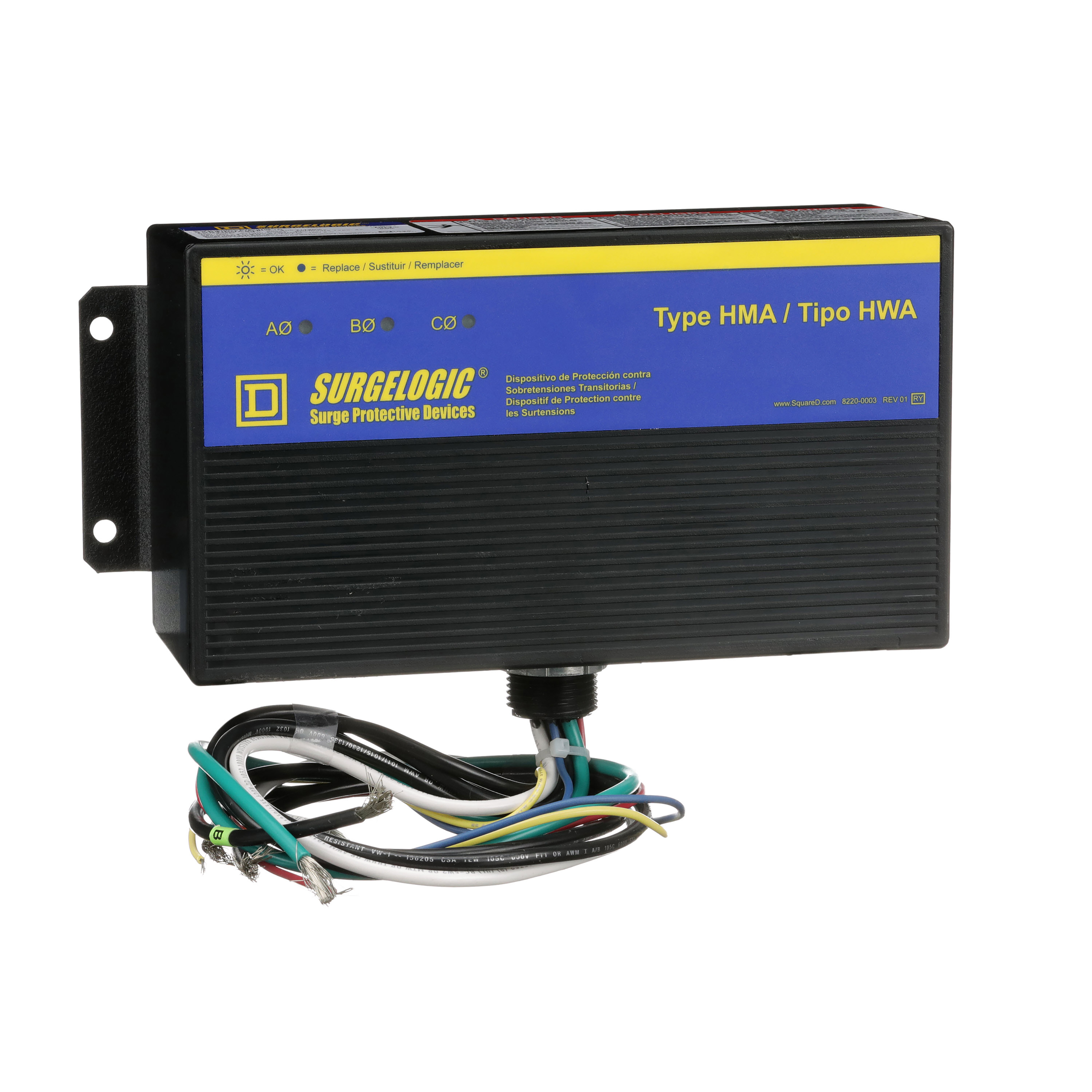

Schneider Electric TVS2HWA80X HWA TVSS, 208Y/120V,
SKU805525
MFGR #TVS2HWA80X
Your Cost: $956.60/ea
List: Schneider Electric TVS2HWA80X HWA TVSS, 208Y/120V, 3 ph, 4 wire, 80kA,200kA,208Y/120VAC,3-Phase,Audible alarm,Listed to UL 1449 Second Edition and UL 1283 - Meets requirements of ANSI/IEEE C62.41 and C62.45 and UL Category Section 37.3,NEMA 4X,Nipple,Suitable for use in service entrance locations,Surge Suppressor,Surgelogic
Schneider Electric TVS2HWA80X HWA TVSS, 208Y/120V, 3 ph, 4 wire, 80kA,200kA,208Y/120VAC,3-Phase,Audible alarm,Listed to UL 1449 Second Edition and UL 1283 - Meets requirements of ANSI/IEEE C62.41 and C62.45 and UL Category Section 37.3,NEMA 4X,Nipple,Suitable for use in service entrance locations,Surge Suppressor,Surgelogic
Alternate Catalog Number TVS2HWA80X Application SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS ARRA Compliant N Buy American Compliant N Catalog Number TVS2HWA80X Clamping Voltage 150 VAC Country of Origin US Currency USD Dimensions 9.4 in H x 4.8 in W x 3.1 in D Enclosure NEMA 4X Enclosure Type NEMA 4X Environmental Conditions 149 deg F Operating Temperature EU RoHS Indicator Y Gross Volume Per Pack 431.42 Gross Volume per Pack Metric 7069.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 5.25 in Height [Metric] 13.4620 cm Indicator Type LED Item Group 08466 Length 10.90 in Length [Metric] 27.9400 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101062&lang=en-us Modes of Protection L-G/L-L/L-N/N-G Mounting NIPPLE Mounting Type Nipple Nominal Discharge Current 20 kA Number Of Poles 2 Number of Wires 4 Peak Surge Current 80 kA Returnable Y Short Circuit Rating 200KA kA Size 3.1 IN,4.8 IN,9.4 IN in Standard LISTED TO UL 1449 SECOND EDITION AND UL 1283 - MEETS REQUIREMENTS OF ANSI/IEEE C62.41 AND C62.45 AND UL CATEGORY SECTION 37.3 Sub Brand SURGELOGIC Substitute Product Catalog Number TVS2HWA10X Type Type HWA UNSPSC 39121112 UPC 11 78590129366 UPC 12 785901293668 Voltage Rating 120/208 VAC Warranty Description Contractual Warranty:10 Years Width 7.33 in Width [Metric] 18.7960 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 208Y/120 VAC Frequency Rating 50/60 Hz Phase 3 Short Circuit Current Rating 200 kA SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS AUDIBLE ALARM HWA Surge Protective Devices HWA Series Surgelogic™ HWA surge protective devices are compact, nipple- Mounted parallelconnected surge suppressors that come in a variety of voltage configurations, including Delta. A surge suppression path is provided for each mode, and the product is rated NEMA Type 4X. Internal diagnostics continuously monitor the device status. US and Canadian UL® Listed as a Type 2 SPD to UL 1449 and UL 1283 standards. Complies with requirements of NEC® Article 285 and CSA C22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. LEDs indicate operational status Short circuit current rating 200 kA Suitable for indoor and outdoor applications (NEMA Type 4X rated) Convenient side-nipple mounting Compact design provides easy mounting inside or outside the equipment cabinets -54 dB EMI/RFI filtering Sine wave tracking Audible alarm indicates loss of suppression (does not contain alarm enable/disable switch) Dry contacts Optional flush- Mount kit TVSHWAFMK
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | TVS2HWA80X |
| Application | SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | TVS2HWA80X |
| Clamping Voltage | 150 VAC |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9.4 in H x 4.8 in W x 3.1 in D |
| Enclosure | NEMA 4X |
| Enclosure Type | NEMA 4X |
| Environmental Conditions | 149 deg F Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 431.42 |
| Gross Volume per Pack Metric | 7069.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.0000 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 5.25 in |
| Height [Metric] | 13.4620 cm |
| Indicator Type | LED |
| Item Group | 08466 |
| Length | 10.90 in |
| Length [Metric] | 27.9400 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101062&lang=en-us |
| Modes of Protection | L-G/L-L/L-N/N-G |
| Mounting | NIPPLE |
| Mounting Type | Nipple |
| Nominal Discharge Current | 20 kA |
| Number Of Poles | 2 |
| Number of Wires | 4 |
| Peak Surge Current | 80 kA |
| Returnable | Y |
| Short Circuit Rating | 200KA kA |
| Size | 3.1 IN,4.8 IN,9.4 IN in |
| Standard | LISTED TO UL 1449 SECOND EDITION AND UL 1283 - MEETS REQUIREMENTS OF ANSI/IEEE C62.41 AND C62.45 AND UL CATEGORY SECTION 37.3 |
| Sub Brand | SURGELOGIC |
| Substitute Product Catalog Number | TVS2HWA10X |
| Type | Type HWA |
| UNSPSC | 39121112 |
| UPC 11 | 78590129366 |
| UPC 12 | 785901293668 |
| Voltage Rating | 120/208 VAC |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 7.33 in |
| Width [Metric] | 18.7960 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 208Y/120 VAC |
| Frequency Rating | 50/60 Hz |
| Phase | 3 |
| Short Circuit Current Rating | 200 kA |
| SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS |
| AUDIBLE ALARM |
| HWA Surge Protective Devices HWA Series Surgelogic™ HWA surge protective devices are compact, nipple- Mounted parallelconnected surge suppressors that come in a variety of voltage configurations, including Delta. A surge suppression path is provided for each mode, and the product is rated NEMA Type 4X. Internal diagnostics continuously monitor the device status. US and Canadian UL® Listed as a Type 2 SPD to UL 1449 and UL 1283 standards. Complies with requirements of NEC® Article 285 and CSA C22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. |
| LEDs indicate operational status |
| Short circuit current rating 200 kA |
| Suitable for indoor and outdoor applications (NEMA Type 4X rated) |
| Convenient side-nipple mounting |
| Compact design provides easy mounting inside or outside the equipment cabinets |
| -54 dB EMI/RFI filtering |
| Sine wave tracking |
| Audible alarm indicates loss of suppression (does not contain alarm enable/disable switch) |
| Dry contacts |
| Optional flush- Mount kit TVSHWAFMK |
