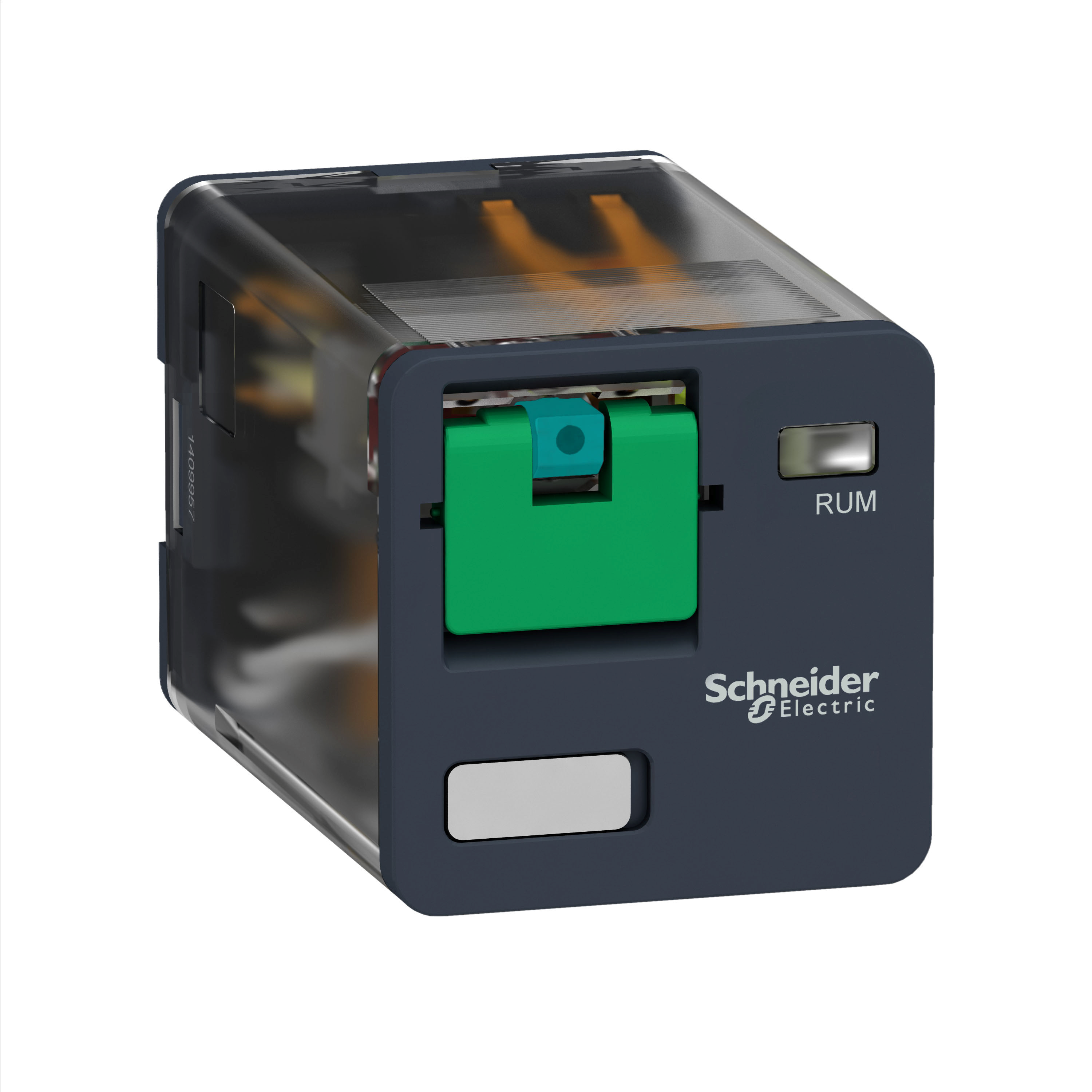

Schneider Electric Square D™ Zelio™ RUMC31MD RUM Series General Purpose Universal Interface Plug-In Relay With Lockable Test Button, 10 A, 3CO/3PDT Contact, 220 VDC V Coil
Custom_Product_Images_Illustration
Schneider Electric Square D™ Zelio™ RUMC31MD RUM Series General Purpose Universal Interface Plug-In Relay With Lockable Test Button, 10 A, 3CO/3PDT Contact, 220 VDC V Coil
SKUPDW~11222931
MFGR #RUMC31MD
$/ea
Schneider Electric Square D™ Zelio™ Interface Plug-In Relay, General Purpose Universal, Series: RUM Series, 10 A, 1.4 W Power, 220 VDC Coil, 3CO/3PDT Contact Form, 10 A at 250 VAC, 10 A at 28 VDC Contact, 3 Poles, DIN Rail Mounting, Cylindrical Pin Terminal, IP40 Enclosure, -40 to 55 deg C, 1.37 W x 1.39 in H Dimensions
Schneider Electric Square D™ Zelio™ Interface Plug-In Relay, General Purpose Universal, Series: RUM Series, 10 A, 1.4 W Power, 220 VDC Coil, 3CO/3PDT Contact Form, 10 A at 250 VAC, 10 A at 28 VDC Contact, 3 Poles, DIN Rail Mounting, Cylindrical Pin Terminal, IP40 Enclosure, -40 to 55 deg C, 1.37 W x 1.39 in H Dimensions
Alternate Catalog Number RUMC31MD ARRA Compliant N Buy American Compliant N Catalog Number RUMC31MD Coil 1.4 W Contact Configuration 3 C/O Contact Material AgNi Country of Origin CN Currency USD EU RoHS Indicator Y Gross Volume Per Pack 5.10 Gross Volume per Pack Metric 83.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.9200 lb Gross Weight per Pack Metric 95.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490080 Height 7.0000 in Height [Metric] 3.7000 cm Item Group 21127 Length 3.5000 in Length [Metric] 7.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=356882710&lang=en-us Operating Temperature -40-55 A°C Pickup Voltage 220 V DC Returnable N Standard 10 GN 11 MS) IN OPERATION EN/IEC 60068-2-27-10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-4 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CSA C22.2 NO 14-UL 508-EN/IEC 61810-1,CSA-REACH-UL-EAC-ROHS,IP40 Sub Brand RUM Substitute Product Catalog Number RUZC3M Type PLUG-IN RELAY UNSPSC 39122325 UPC 11 78590151963 UPC 12 785901519638 Width 3.5000 in Width [Metric] 3.8000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 A 250 V AC-10 A 28 V DC,10 A 277 V AC UL-10 A 30 V DC UL-10 A 277 V AC SAME POLARITY)CSA-10 A 30 V DC CSA-5 A 250 V AC NC)IEC-5 A 28 V DC NC)IEC-10 A 250 V AC NO)IEC-10 A 28 V DC NO)IEC LOCKABLE TEST BUTTON Zelio™ RUM plug-in relays and sockets provide a complete system solution for the most demanding applications up to 10 A Mechanical indication of relay status Optional protection modules to protect against electrical spikes Bus jumpers for connecting multiple terminals reduce installation time Without green LED
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RUMC31MD |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | RUMC31MD |
| Coil | 1.4 W |
| Contact Configuration | 3 C/O |
| Contact Material | AgNi |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 5.10 |
| Gross Volume per Pack Metric | 83.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.9200 lb |
| Gross Weight per Pack Metric | 95.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 7.0000 in |
| Height [Metric] | 3.7000 cm |
| Item Group | 21127 |
| Length | 3.5000 in |
| Length [Metric] | 7.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=356882710&lang=en-us |
| Operating Temperature | -40-55 A°C |
| Pickup Voltage | 220 V DC |
| Returnable | N |
| Standard | 10 GN 11 MS) IN OPERATION EN/IEC 60068-2-27-10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-4 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CSA C22.2 NO 14-UL 508-EN/IEC 61810-1,CSA-REACH-UL-EAC-ROHS,IP40 |
| Sub Brand | RUM |
| Substitute Product Catalog Number | RUZC3M |
| Type | PLUG-IN RELAY |
| UNSPSC | 39122325 |
| UPC 11 | 78590151963 |
| UPC 12 | 785901519638 |
| Width | 3.5000 in |
| Width [Metric] | 3.8000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 A 250 V AC-10 A 28 V DC,10 A 277 V AC UL-10 A 30 V DC UL-10 A 277 V AC SAME POLARITY)CSA-10 A 30 V DC CSA-5 A 250 V AC NC)IEC-5 A 28 V DC NC)IEC-10 A 250 V AC NO)IEC-10 A 28 V DC NO)IEC |
| LOCKABLE TEST BUTTON |
| Zelio™ RUM plug-in relays and sockets provide a complete system solution for the most demanding applications up to 10 A |
| Mechanical indication of relay status |
| Optional protection modules to protect against electrical spikes |
| Bus jumpers for connecting multiple terminals reduce installation time |
| Without green LED |
