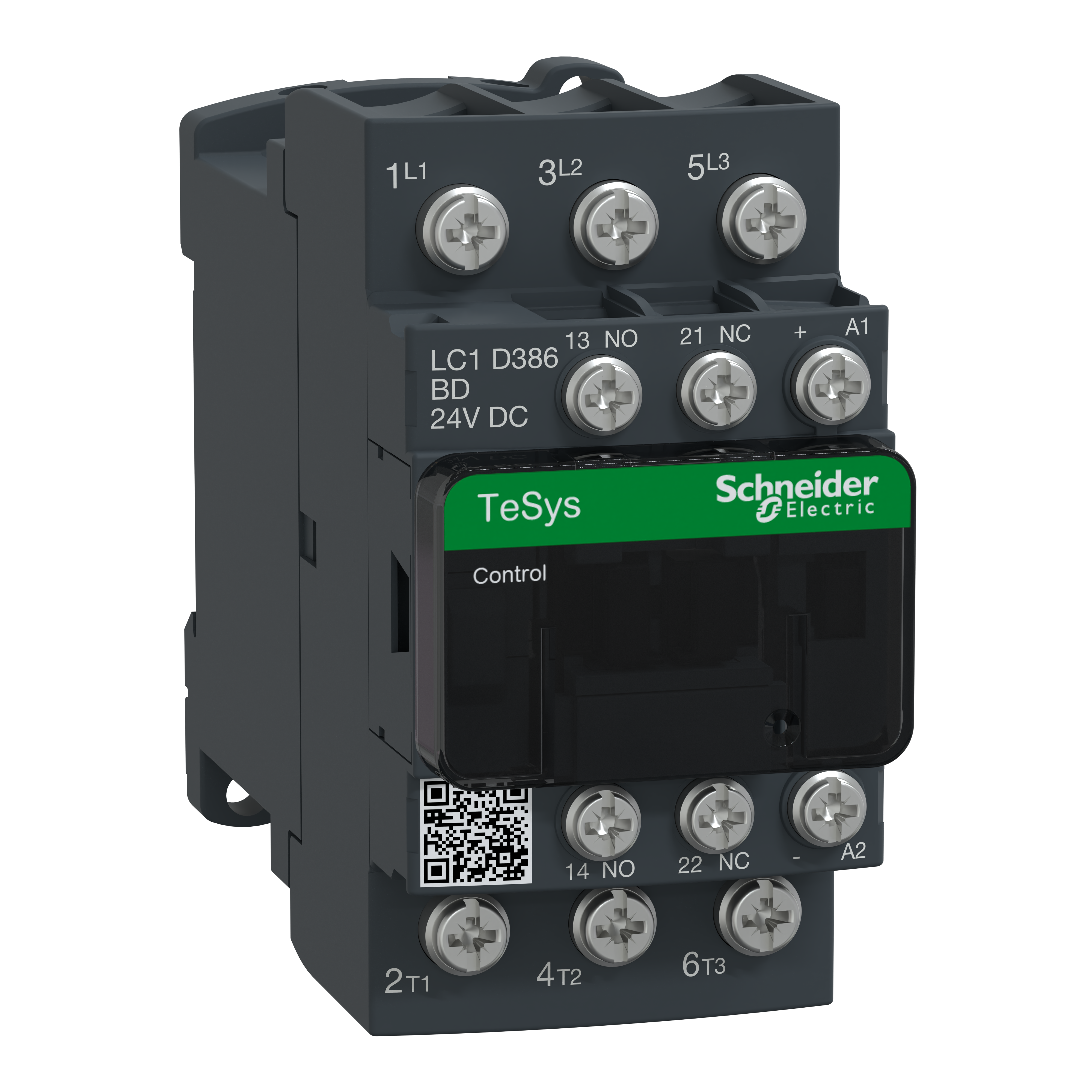

Schneider Electric Square D™ TeSys™ D LC1D386BD Contactor With Safety Cover, 24 VDC V Coil, 50 A, 3NO Contact, 3 Poles
NEMA & IEC Contactors
1361425
MFG #: LC1D386BD
Square D™
415.68000
/ ea
Schneider Electric Square D™ TeSys™ D Contactor, Series: LC1D, 24 VDC Coil, 50 A Maximum Load Current, 5.4 W Coil, 3 Pole, 25 to 400 Hz Frequency, 3 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/50 A Contact, Screw Connection, Lugs-Ring Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -5 to 60 deg C Operating, Surface Mounting, 45 mm W x 101 mm D x 85 mm H Dimensions
- 360 Degree View URL - index.html?pid=11003&id=14567461360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D256BD_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_PSZLYO09KDQ18N6R.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI1102030_V3.pdf(Service Manual URL)
- Spec Sheet URL - 11003_RTM7H0GUSF5NYDE2.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Drawing URL - SB105137(Tech Drawing URL)
- Video - https://www.youtube.com/embed/vlEODblcQoo(Video)
- Applications
- Features
| For motor control and resistive load |
| Built-in bidirectional peak limiting diode suppressor |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| Control circuit flexibility |
| Control circuit flexibility |
