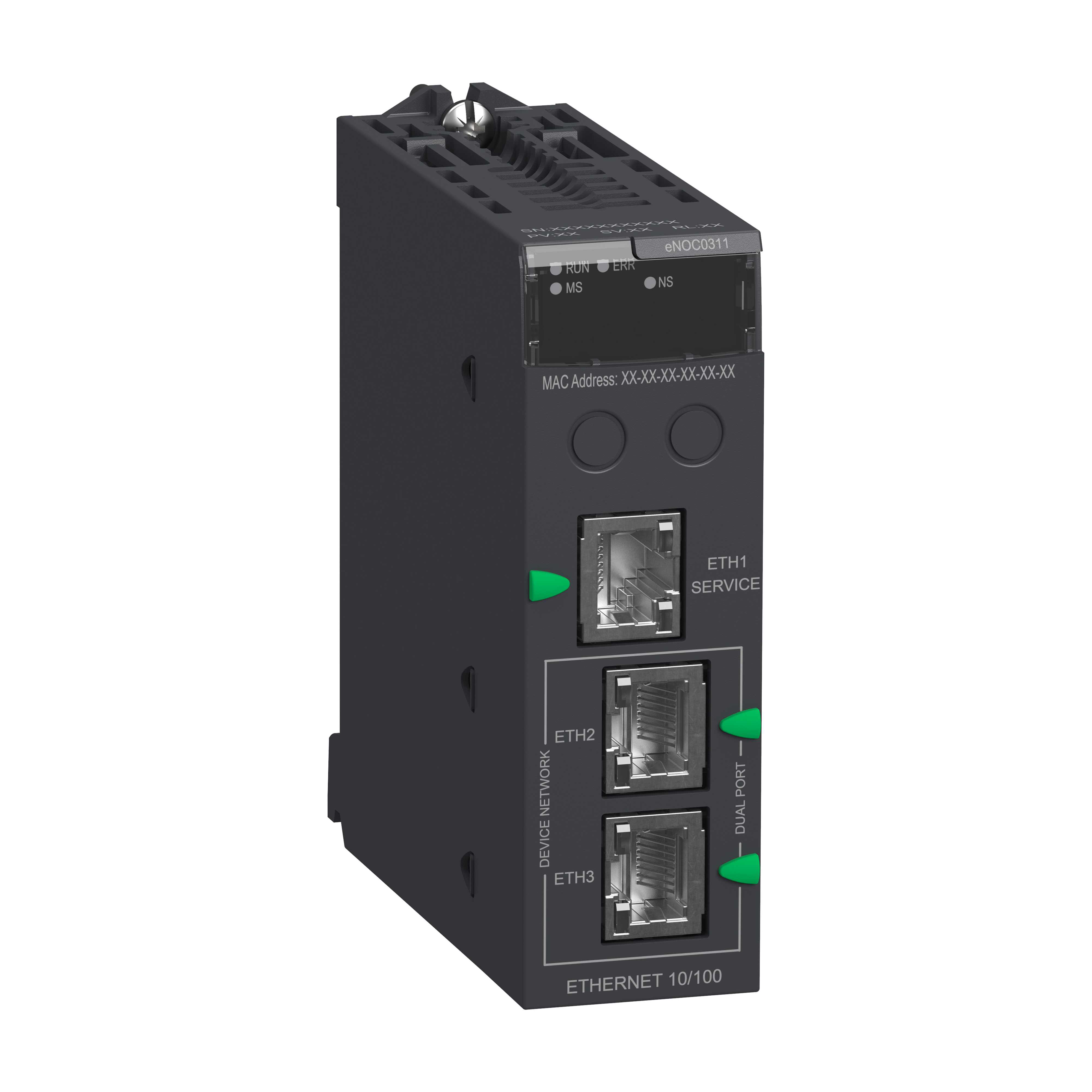

Schneider Electric Square D™ Modicon™ BMENOC0311 M580 3-Port Standard Ethernet Advanced Communication Module, 3.3 VDC, 555 mA, 10/100 Mbps Communication
Custom_Product_Images_Illustration
Schneider Electric Square D™ Modicon™ BMENOC0311 M580 3-Port Standard Ethernet Advanced Communication Module, 3.3 VDC, 555 mA, 10/100 Mbps Communication
SKUPDW~11690810
MFGR #BMENOC0311
Your Cost: $1,772.51/ea
List: Schneider Electric Square D™ Modicon™ Ethernet Advanced Communication Module, 3-Port Standard, Series: M580, 3.3 VDC, 555 mA, 10/100 Mbps Communication Rate, RJ45 Terminal, 0 to 60 deg C
Schneider Electric Square D™ Modicon™ Ethernet Advanced Communication Module, 3-Port Standard, Series: M580, 3.3 VDC, 555 mA, 10/100 Mbps Communication Rate, RJ45 Terminal, 0 to 60 deg C
Alternate Catalog Number BMENOC0311 ARRA Compliant N Buy American Compliant N Catalog Number BMENOC0311 Communication Bandwidth management;FDR server;SNMP network administrator;Modbus TCP I/O Scanner and Messaging;Ethernet/IP I/O Scanner and Messaging;RSTP support;port mirroring;embedded multiport switch Country of Origin US Currency USD Display for ETH MS (Ethernet port configuration status) 1 LED (green/red);for Eth NS (Ethernet network status) 1 LED (green/red);for processor or system fault (ERR) 1 LED (red);for processor running (RUN) 1 LED (green) EU RoHS Indicator Y Gross Volume Per Pack 49.68 Gross Volume per Pack Metric 814.11 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5610 lb Gross Weight per Pack Metric 255.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8517620090 Height 2.14 in Height [Metric] 5.5000 cm Item Group 18160 Length 4.52 in Length [Metric] 11.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421216727&lang=en-us Returnable Y Standard CE Sub Brand BMEXBP... - Ethernet + X-bus rack Substitute Product Catalog Number BMEXBP1200 Type Communication module UNSPSC 32151705 UPC 11 785901968757 UPC 12 785901968757 Width 4.29 in Width [Metric] 11.0000 cm Brand Schneider Electric Manufacturer Schneider Electric Water and Waste Water Plants - WWTP (Treatment Plant), Pumping, Desalination, Consumer Packaged Goods (CPG), Food and Beverage (Dairy, Confectionary, Pet Food, Sugar, Grain), Life Sciences (Pharmatical), Household and Personal Care, Mining Metal Minerals, Mining Water Treatment, Cement, Conveyors, Hydro Power - Small/Medium/Large Plants, O and G - Midstream, Pipelines, Transportation - Metro, Tunnels, Airports, OEM Process - Material Handling, Turbo Machinery, Process and Machine Safety functions like Emergency Shut Down, Fire and Gas, Burner or Boiler Management, Control Access for Safety Machines. Native ethernet capabilities High performance Enhanced cyber-security More flexibility in design and greater agility for your operations Smooth modernization solutions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | BMENOC0311 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BMENOC0311 |
| Communication | Bandwidth management;FDR server;SNMP network administrator;Modbus TCP I/O Scanner and Messaging;Ethernet/IP I/O Scanner and Messaging;RSTP support;port mirroring;embedded multiport switch |
| Country of Origin | US |
| Currency | USD |
| Display | for ETH MS (Ethernet port configuration status) 1 LED (green/red);for Eth NS (Ethernet network status) 1 LED (green/red);for processor or system fault (ERR) 1 LED (red);for processor running (RUN) 1 LED (green) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 49.68 |
| Gross Volume per Pack Metric | 814.11 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5610 lb |
| Gross Weight per Pack Metric | 255.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8517620090 |
| Height | 2.14 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 18160 |
| Length | 4.52 in |
| Length [Metric] | 11.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421216727&lang=en-us |
| Returnable | Y |
| Standard | CE |
| Sub Brand | BMEXBP... - Ethernet + X-bus rack |
| Substitute Product Catalog Number | BMEXBP1200 |
| Type | Communication module |
| UNSPSC | 32151705 |
| UPC 11 | 785901968757 |
| UPC 12 | 785901968757 |
| Width | 4.29 in |
| Width [Metric] | 11.0000 cm |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Water and Waste Water Plants - WWTP (Treatment Plant), Pumping, Desalination, Consumer Packaged Goods (CPG), Food and Beverage (Dairy, Confectionary, Pet Food, Sugar, Grain), Life Sciences (Pharmatical), Household and Personal Care, Mining Metal Minerals, Mining Water Treatment, Cement, Conveyors, Hydro Power - Small/Medium/Large Plants, O and G - Midstream, Pipelines, Transportation - Metro, Tunnels, Airports, OEM Process - Material Handling, Turbo Machinery, Process and Machine Safety functions like Emergency Shut Down, Fire and Gas, Burner or Boiler Management, Control Access for Safety Machines. |
| Native ethernet capabilities |
| High performance |
| Enhanced cyber-security |
| More flexibility in design and greater agility for your operations |
| Smooth modernization solutions |
