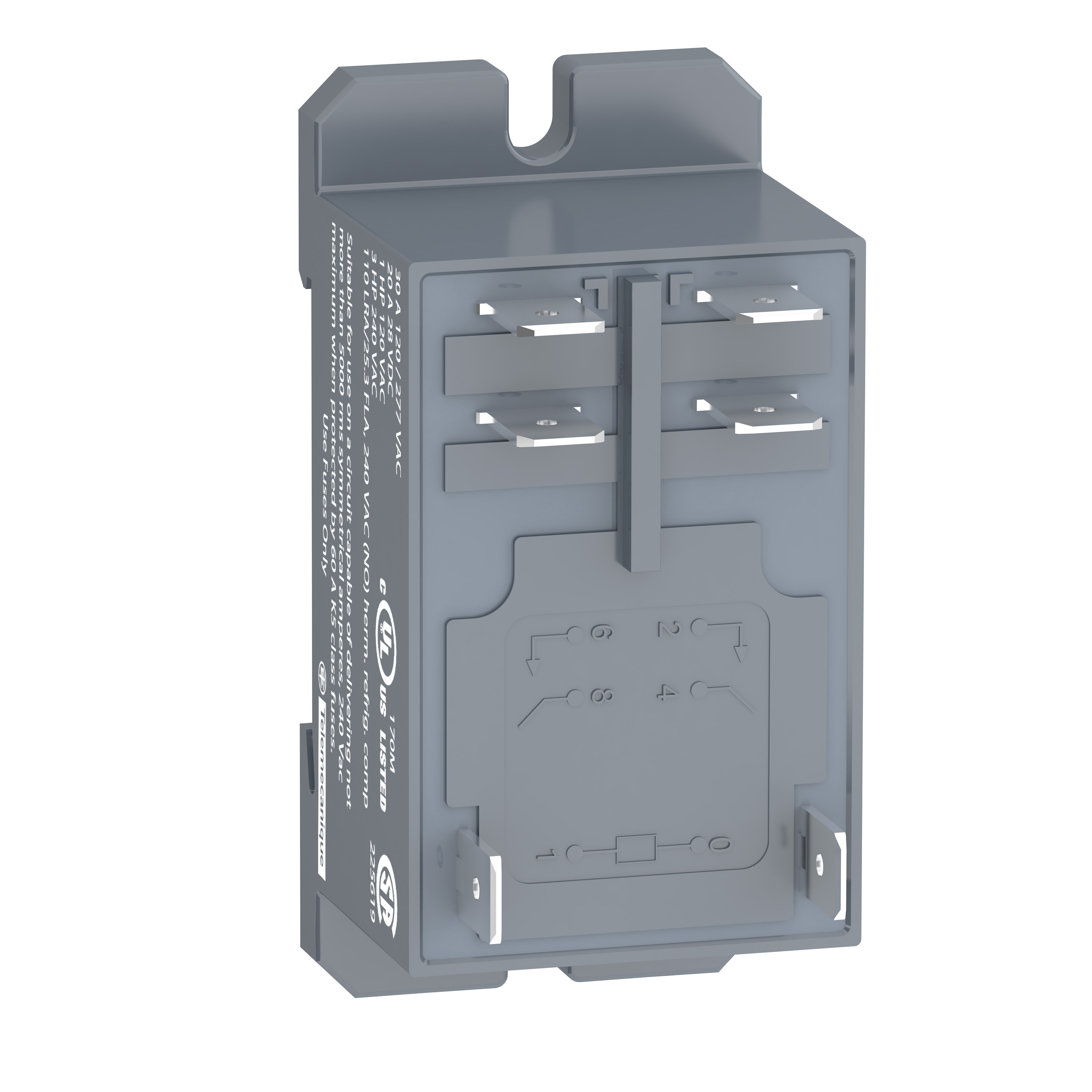

Schneider Electric RPF2AF7 Power Relay, 30 A, 6 Pins, 2NO DPST Contact Form, 120 VAC Coil
Custom_Product_Images_Illustration
Schneider Electric RPF2AF7 Power Relay, 30 A, 6 Pins, 2NO DPST Contact Form, 120 VAC Coil
SKU446351
MFGR #RPF2AF7
Your Cost: $13.80/ea
Schneider Electric RPF2AF7 POWER RELAY 250V 25A RPF +OPTIONS,-40...55 deg.C,120 VAC,1600 Ohms,18000 operating cycles/hour,2 NO DPST,30A,>= 0.15 Uc,DIN rail or Flange,Flat/Spade (Faston Type),IP 40 conforming to IEC/EN 60529,Power Relay,UL Recognized Component - CSA Certified - CE Marked - RoHS Compliant
Schneider Electric RPF2AF7 POWER RELAY 250V 25A RPF +OPTIONS,-40...55 deg.C,120 VAC,1600 Ohms,18000 operating cycles/hour,2 NO DPST,30A,>= 0.15 Uc,DIN rail or Flange,Flat/Spade (Faston Type),IP 40 conforming to IEC/EN 60529,Power Relay,UL Recognized Component - CSA Certified - CE Marked - RoHS Compliant
Alternate Catalog Number RPF2AF7 Amperage Rating 30 A ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number RPF2AF7 Coil 4 VA 60 HZ Coil Voltage 120 VAC Connection FLAT/SPADE (FASTON TYPE) Contact Configuration 2 NO Contact Form 2NO DPST Contact Rating 30 A at 277 VAC, 20 A at 28 VDC Country of Origin CN Currency USD Dimensions 1.65 in H x 1.34 in W x 2.68 in D Drop Down Voltage >= 0.15 UC Enclosure IP 40 CONFORMING TO IEC/EN 60529 Enclosure Type IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 6.43 Gross Volume per Pack Metric 105.37 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1150 lb Gross Weight per Pack Metric 92.50 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490075 Height 3.4000 in Height [Metric] 3.4000 cm Item Group 21127 Length 6.9000 in Length [Metric] 6.9000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=648566&lang=en-us Mounting DIN RAIL-PANEL Mounting Type DIN Rail/Flange Number of Pins 6 Number Of Poles 2 Operating Temperature -40-55 A°C Pickup Voltage 120 V AC Power Rating 3 hp Resistance 1600 OHMS Returnable Y Series RPF Standard 10 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-10 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CSA C22.2 NO 14-UL 508-EN/IEC 61810-1,IP40 EN/IEC 60529,UL-CSA-GOST-CE Stock Status NORMALLY STOCKED Sub Brand RPF Temperature Rating -40 to 55 °C Terminal Type Flat/Spade Type Plug-in relay UNSPSC 39122324 UPC 11 78590157278 UPC 12 785901572787 Warranty Description Contractual Warranty:18 months Width 4.6000 in Width [Metric] 4.6000 cm
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | RPF2AF7 |
| Amperage Rating | 30 A |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | RPF2AF7 |
| Coil | 4 VA 60 HZ |
| Coil Voltage | 120 VAC |
| Connection | FLAT/SPADE (FASTON TYPE) |
| Contact Configuration | 2 NO |
| Contact Form | 2NO DPST |
| Contact Rating | 30 A at 277 VAC, 20 A at 28 VDC |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.65 in H x 1.34 in W x 2.68 in D |
| Drop Down Voltage | >= 0.15 UC |
| Enclosure | IP 40 CONFORMING TO IEC/EN 60529 |
| Enclosure Type | IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 6.43 |
| Gross Volume per Pack Metric | 105.37 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1150 lb |
| Gross Weight per Pack Metric | 92.50 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490075 |
| Height | 3.4000 in |
| Height [Metric] | 3.4000 cm |
| Item Group | 21127 |
| Length | 6.9000 in |
| Length [Metric] | 6.9000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=648566&lang=en-us |
| Mounting | DIN RAIL-PANEL |
| Mounting Type | DIN Rail/Flange |
| Number of Pins | 6 |
| Number Of Poles | 2 |
| Operating Temperature | -40-55 A°C |
| Pickup Voltage | 120 V AC |
| Power Rating | 3 hp |
| Resistance | 1600 OHMS |
| Returnable | Y |
| Series | RPF |
| Standard | 10 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-10 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CSA C22.2 NO 14-UL 508-EN/IEC 61810-1,IP40 EN/IEC 60529,UL-CSA-GOST-CE |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | RPF |
| Temperature Rating | -40 to 55 °C |
| Terminal Type | Flat/Spade |
| Type | Plug-in relay |
| UNSPSC | 39122324 |
| UPC 11 | 78590157278 |
| UPC 12 | 785901572787 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.6000 in |
| Width [Metric] | 4.6000 cm |
