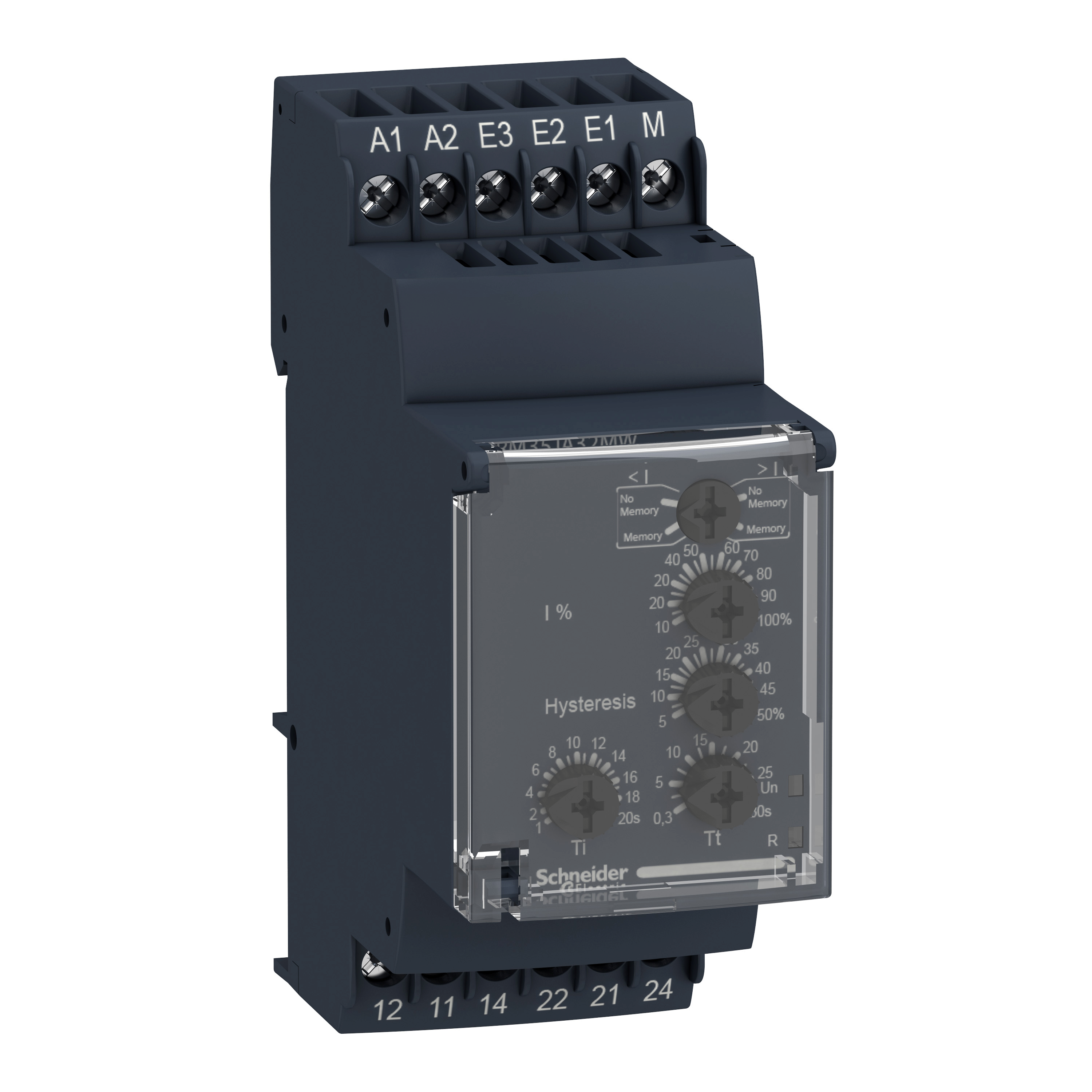

Schneider Electric RM35-J Current Control Relay, 5 A, 2CO Contact Form, 250 VAC/VDC Coil
Terminal Blocks
551484
MFG #: RM35JA32MW
Schneider Electric
177.00000
/ ea
Schneider Electric RM35JA32MW CURRENT RELAY 250V 5AMP RM35,-20...50 deg.C,2 C/O,24 to 240 VAC/VDC,5 A (1 A at 24 VDC, 5 A at 24 VAC, 3 A at 250 VAC),50/60 Hz 10,AC-12 - DC-14 - DC-13 - AC-14 - AC-13 - DC-12 - AC-15,Current control,Din Rail,EEC - EN - EMC - UL - CSA - CE - RoHS - GL - C-Tick - IEC - GOST - NF,IP30 (casing) conforming to IEC 60529-IP20 (terminals) conforming to IEC 60529,Overcurrent or undercurrent,adjustable 1...20 s, 0 + 10 on energisation Ti-adjustable 0.3...30 s, 0 + 10 on crossing the threshold Tt,current control relay,modular measurement and control relays
- 360 Degree View URL - index.html?pid=11003&id=10866029360Den&ext=webp(360 Degree View URL)
- Brochure URL - 17bb139b4370aa8ad3b5cf465e6a7fb767e8275c.pdf(Brochure URL)
- Catalog URL - SquareD_8501CO16V08_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0001778_2D-right.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_QECMSDHN62LOJ83W.pdf(Install Instructions 1 URL)
- Install Instructions URL - SquareD_RM35JA32MW_Installation_Instruction.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_L8ERZGQO2T1VIKYD.pdf(Service Manual URL)
- Spec Sheet URL - 11003_6FWITMLS7U2A30XV.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/-ughWpDnphM(Video)
- Applications
- Features
| CURRENT CONTROL |
| OVERCURRENT OR UNDERCURRENT DETECTION,POWER ON LED GREEN)-RELAY ON LED YELLOW) |
| Self-extinguishing plastic housing |
| 360 operations/hr under full load operating rate |
| Insulation between supply and measurement |
| 10 mA at 5 VDC minimum switching current |
| 95% at 55 deg C conforming to IEC 60068-2-30 relative humidity |
| -4 to 122 deg F storage temperature |
| Selection between over current or undercurrent |
| Automatic DC or AC recognition |
| Selectable memory function |
| IP20 (terminals) conforming to IEC 60529-IP30 (casing) conforming to IEC 60529 |
