Square D™

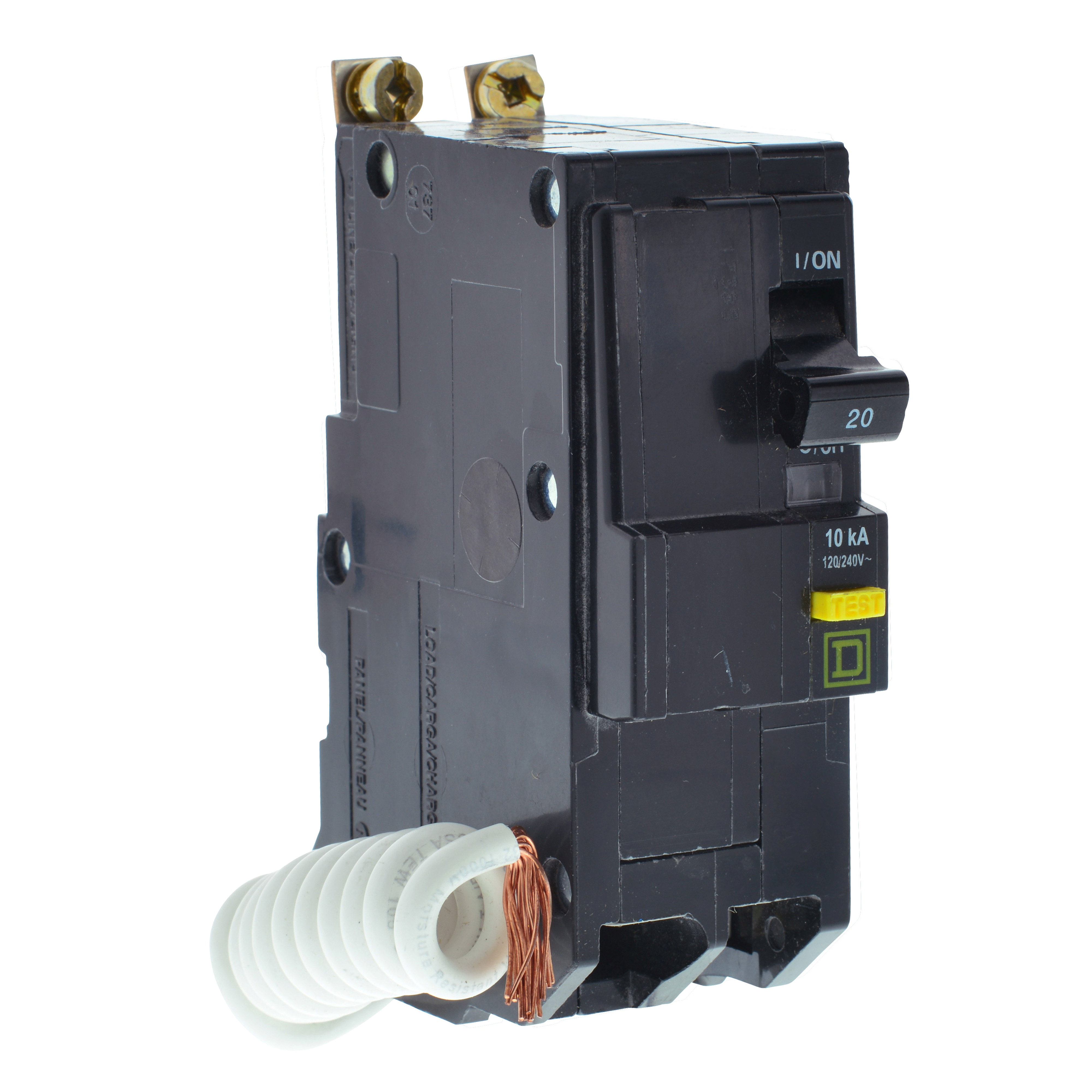

Schneider Electric QOB220GFI5237 Type QOB Class A GFI Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric QOB220GFI5237 Type QOB Class A GFI Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles
SKU539849
MFGR #QOB220GFI5237
Your Cost: $533.00/ea
Schneider Electric QOB220GFI5237 MINIATURE CIRCUIT BREAKER 120/240V 20A
Schneider Electric QOB220GFI5237 MINIATURE CIRCUIT BREAKER 120/240V 20A
Alternate Catalog Number QOB220GFI5237 Amperage Rating 20 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB220GFI5237 Connection AWG 14...AWG 8 COPPER-AWG 12...AWG 8 ALUMINIUM,RING TONGUE Country of Origin MX Dimensions 4.12 in H x 1.5 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Gross Weight Per Pack 0.9500 lb Harmonization Tariff Schedule Code 8536200020 Height 4.12 in Interrupt Rating 10 KA,10 KA 120/240 V AC 50/60 HZ- 10 KA 120 V AC 50/60 HZ VAC Item Group 00015 Length 2.91 in Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400801&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Returnable N Standard UL LISTED-CSA Standards UL File No. E84967, CSA 22.2 No. 5, ARRA, Buy American Compliant, California Provision: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Temperature Rating 104 °F Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590116538 UPC 12 785901165385 Voltage Rating 120/240 V AC-120 V AC Warranty Description Contractual Warranty:18 months Width 1.5 in Wire Size 12 to 8 AWG Al/14 to 8 AWG Cu NOT RATED GROUND FAULT PROTECTING CLASS A 6 MA Market leading circuit protection designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation, fewer connections Frees gutter space, no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB220GFI5237 |
| Amperage Rating | 20 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB220GFI5237 |
| Connection | AWG 14...AWG 8 COPPER-AWG 12...AWG 8 ALUMINIUM,RING TONGUE |
| Country of Origin | MX |
| Dimensions | 4.12 in H x 1.5 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.9500 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.12 in |
| Interrupt Rating | 10 KA,10 KA 120/240 V AC 50/60 HZ- 10 KA 120 V AC 50/60 HZ VAC |
| Item Group | 00015 |
| Length | 2.91 in |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400801&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Returnable | N |
| Standard | UL LISTED-CSA |
| Standards | UL File No. E84967, CSA 22.2 No. 5, ARRA, Buy American Compliant, California Provision: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590116538 |
| UPC 12 | 785901165385 |
| Voltage Rating | 120/240 V AC-120 V AC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.5 in |
| Wire Size | 12 to 8 AWG Al/14 to 8 AWG Cu |
| NOT RATED |
| GROUND FAULT PROTECTING CLASS A 6 MA |
| Market leading circuit protection designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation, fewer connections |
| Frees gutter space, no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
