Square D™

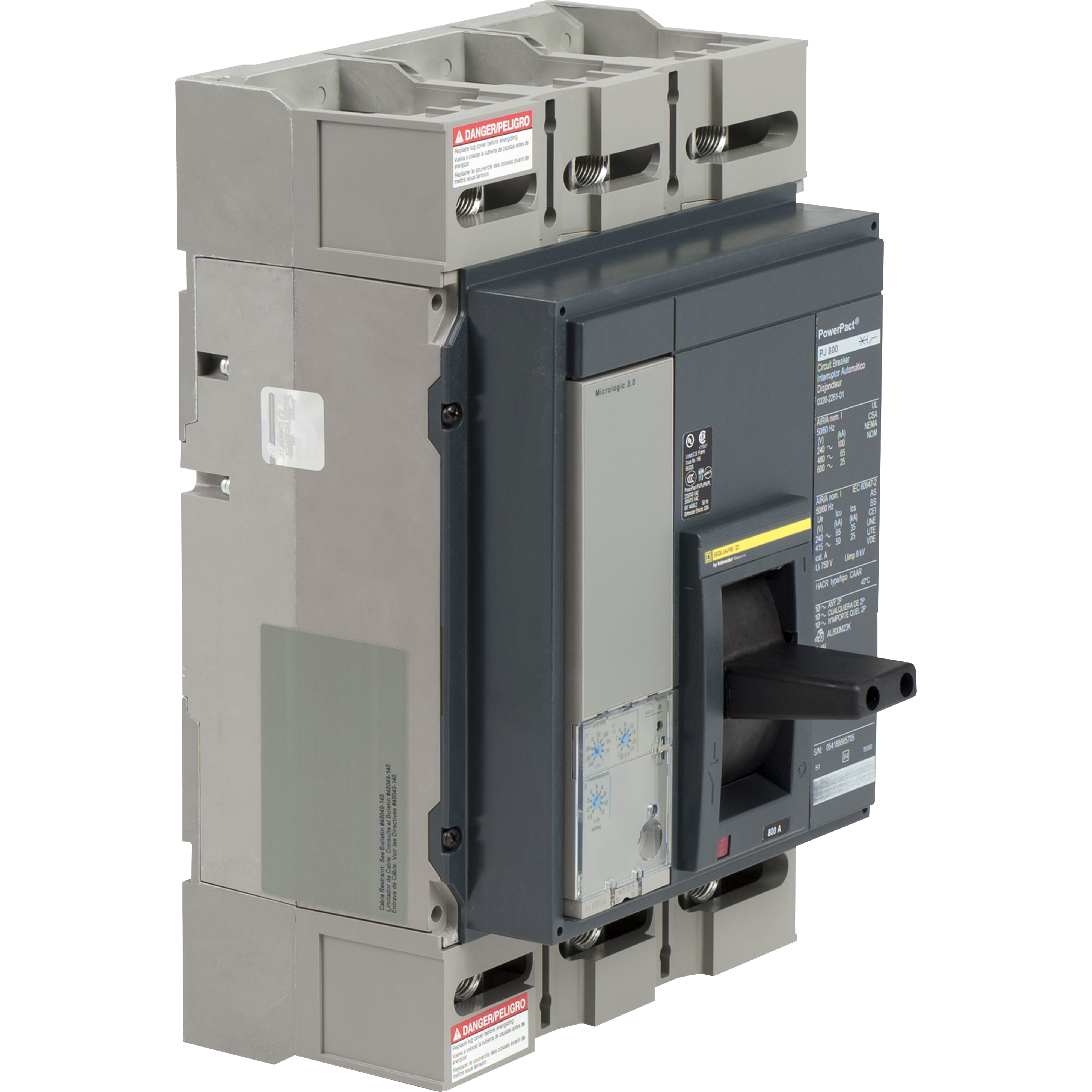

Schneider Electric PowerPact™ PJL36080U31A Molded Case Circuit Breaker, 600 VAC, 800 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric PowerPact™ PJL36080U31A Molded Case Circuit Breaker, 600 VAC, 800 A, 3 Poles
SKU752537
MFGR #PJL36080U31A
Your Cost: $13,501.41/ea
List: Schneider Electric PJL36080U31A MOLDED CASE CIRCUIT BREAKER 600V 800A,600 V AC,600 V AC,65 kA 480 V AC-25 kA 600 V AC-100 kA 240 V AC,800 A,800 A,J,circuit breaker,electronic standard Micrologic 3.0 LI,unit mount
Schneider Electric PJL36080U31A MOLDED CASE CIRCUIT BREAKER 600V 800A,600 V AC,600 V AC,65 kA 480 V AC-25 kA 600 V AC-100 kA 240 V AC,800 A,800 A,J,circuit breaker,electronic standard Micrologic 3.0 LI,unit mount
Alternate Catalog Number PJL36080U31A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PJL36080U31A Connection AWG 3/0...500 KCMIL ALUMINIUM/COPPER)3,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 12.86 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Weight Per Pack 32.0100 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 in Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 in Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432817&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 pH Returnable Y Standard CSA-IEC-UL LISTED Sub Brand A Temperature Rating -13 to 158 °F Trip Range 800 A,800 A Type Type PJL UNSPSC 39121601 UPC 11 78590198262 UPC 12 785901982623 Warranty Description Contractual Warranty:18 months Width 29.5280 in Width [Metric] 29.5280 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Interrupt Rating 65/25/100 kA Trip Type Electronic Standard Micrologic™ 3.0 LI Voltage Rating 600 VAC Distribution UNIT MOUNT Provide overload and short circuit protection Are true RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustability Provide high interrupting ratings and withstand ratings Provide integral equipment ground fault protection or alarm Provide communications Provide power monitoring Provide protective relaying functions Provide zone selective interlocking (ZSI), which can reduce damage in the event of a fault 100 kA 240 VAC, 65 kA 480 VAC, 25 kA 600 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | PJL36080U31A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJL36080U31A |
| Connection | AWG 3/0...500 KCMIL ALUMINIUM/COPPER)3,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 12.86 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 32.0100 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 in |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 in |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432817&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Sub Brand | A |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 800 A,800 A |
| Type | Type PJL |
| UNSPSC | 39121601 |
| UPC 11 | 78590198262 |
| UPC 12 | 785901982623 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.5280 in |
| Width [Metric] | 29.5280 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Interrupt Rating | 65/25/100 kA |
| Trip Type | Electronic Standard Micrologic™ 3.0 LI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
| Provide overload and short circuit protection |
| Are true RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustability |
| Provide high interrupting ratings and withstand ratings |
| Provide integral equipment ground fault protection or alarm |
| Provide communications |
| Provide power monitoring |
| Provide protective relaying functions |
| Provide zone selective interlocking (ZSI), which can reduce damage in the event of a fault |
| 100 kA 240 VAC, 65 kA 480 VAC, 25 kA 600 VAC |
