Square D™

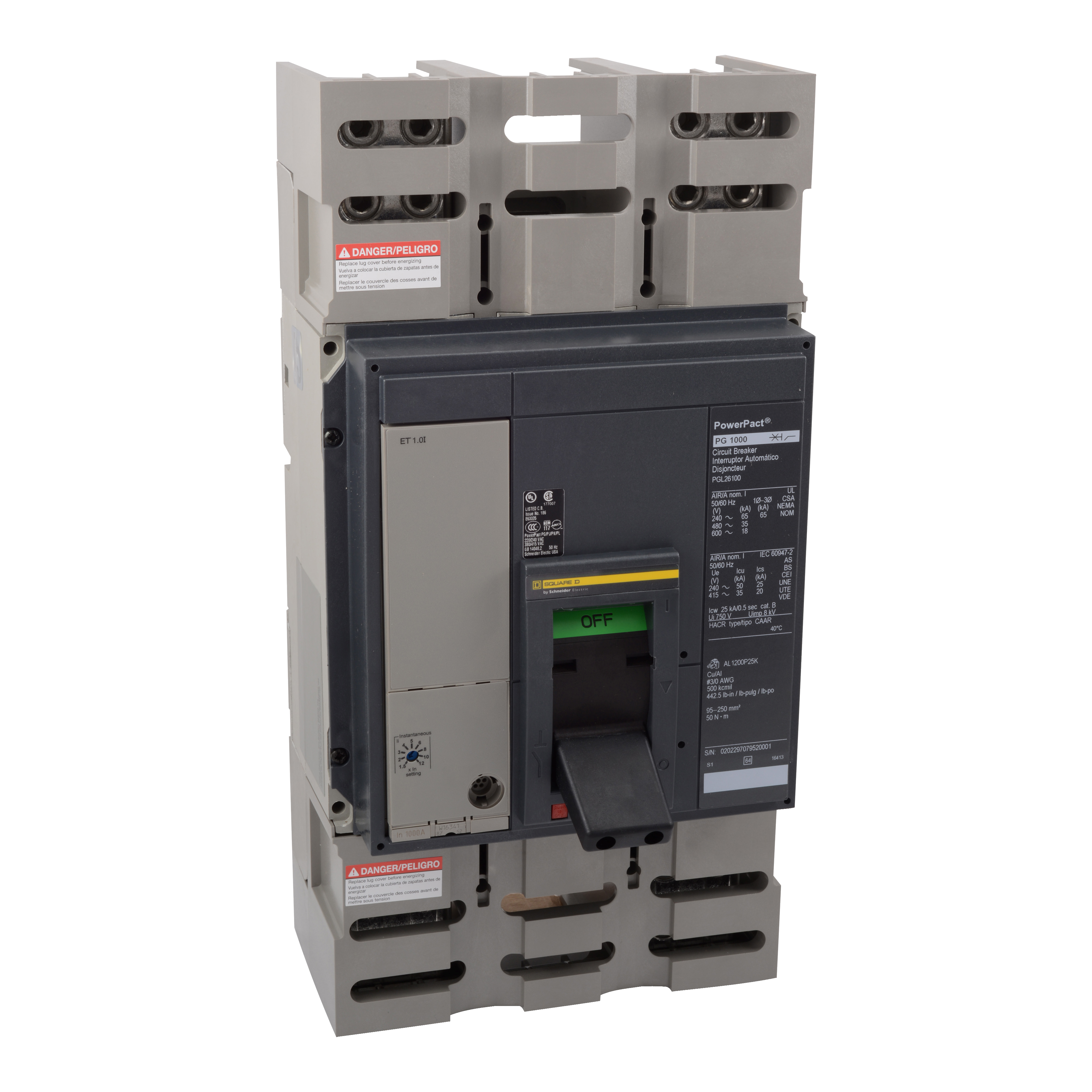

Schneider Electric PowerPact™ PGL36100CU33A Molded Case Circuit Breaker, 600 VAC, 1000 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric PowerPact™ PGL36100CU33A Molded Case Circuit Breaker, 600 VAC, 1000 A, 3 Poles
SKU906341
MFGR #PGL36100CU33A
Price Not Available
List: Schneider Electric PGL36100CU33A MOLDED CASE CIRCUIT BREAKER 600V 1000A,1000 A,1000 A,18 kA 600 V AC-65 kA 240 V AC-35 kA 480 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 5.0 LSI,unit mount
Schneider Electric PGL36100CU33A MOLDED CASE CIRCUIT BREAKER 600V 1000A,1000 A,1000 A,18 kA 600 V AC-65 kA 240 V AC-35 kA 480 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 5.0 LSI,unit mount
Actuator Toggle Alternate Catalog Number PGL36100CU33A Application Distribution;HACR rated ARRA Compliant N Buy American Compliant N Catalog Number PGL36100CU33A Connection Lugs load;lugs line; 4 x AWG 3/0...500 kcmil aluminium/copper Connection Type Line/Load Lug Country of Origin US Currency USD Depth 8.05 in Dimensions 16.26 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 CM Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 CM Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431863&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 pH Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No. 5Federal Specification W-C-375B/GENIEC 60947-2eccn: EAR99 Sub Brand PowerPact P Temperature Rating -13 to 158 °F Type Type PGL UNSPSC 39121616 UPC 11 78590175692 UPC 12 785901756927 Warranty Description Contractual Warranty:18 months Width 30.0000 CM Width [Metric] 29.5275 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1000 A Interrupt Rating 65/35/18 kA Trip Type Electronic Standard Micrologic™ 5.0 LSI Voltage Rating 600 VAC Distribution;HACR rated UNIT MOUNT Provide overload and short circuit protection Are true RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustability Provide high interrupting ratings and withstand ratings Provide integral equipment ground fault protection or alarm Provide communications Provide power monitoring Provide protective relaying functions Provide zone selective interlocking (ZSI), which can reduce damage in the event of a fault 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | PGL36100CU33A |
| Application | Distribution;HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGL36100CU33A |
| Connection | Lugs load;lugs line; 4 x AWG 3/0...500 kcmil aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 8.05 in |
| Dimensions | 16.26 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 CM |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 CM |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431863&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No. 5Federal Specification W-C-375B/GENIEC 60947-2eccn: EAR99 |
| Sub Brand | PowerPact P |
| Temperature Rating | -13 to 158 °F |
| Type | Type PGL |
| UNSPSC | 39121616 |
| UPC 11 | 78590175692 |
| UPC 12 | 785901756927 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.0000 CM |
| Width [Metric] | 29.5275 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1000 A |
| Interrupt Rating | 65/35/18 kA |
| Trip Type | Electronic Standard Micrologic™ 5.0 LSI |
| Voltage Rating | 600 VAC |
| Distribution;HACR rated |
| UNIT MOUNT |
| Provide overload and short circuit protection |
| Are true RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustability |
| Provide high interrupting ratings and withstand ratings |
| Provide integral equipment ground fault protection or alarm |
| Provide communications |
| Provide power monitoring |
| Provide protective relaying functions |
| Provide zone selective interlocking (ZSI), which can reduce damage in the event of a fault |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
