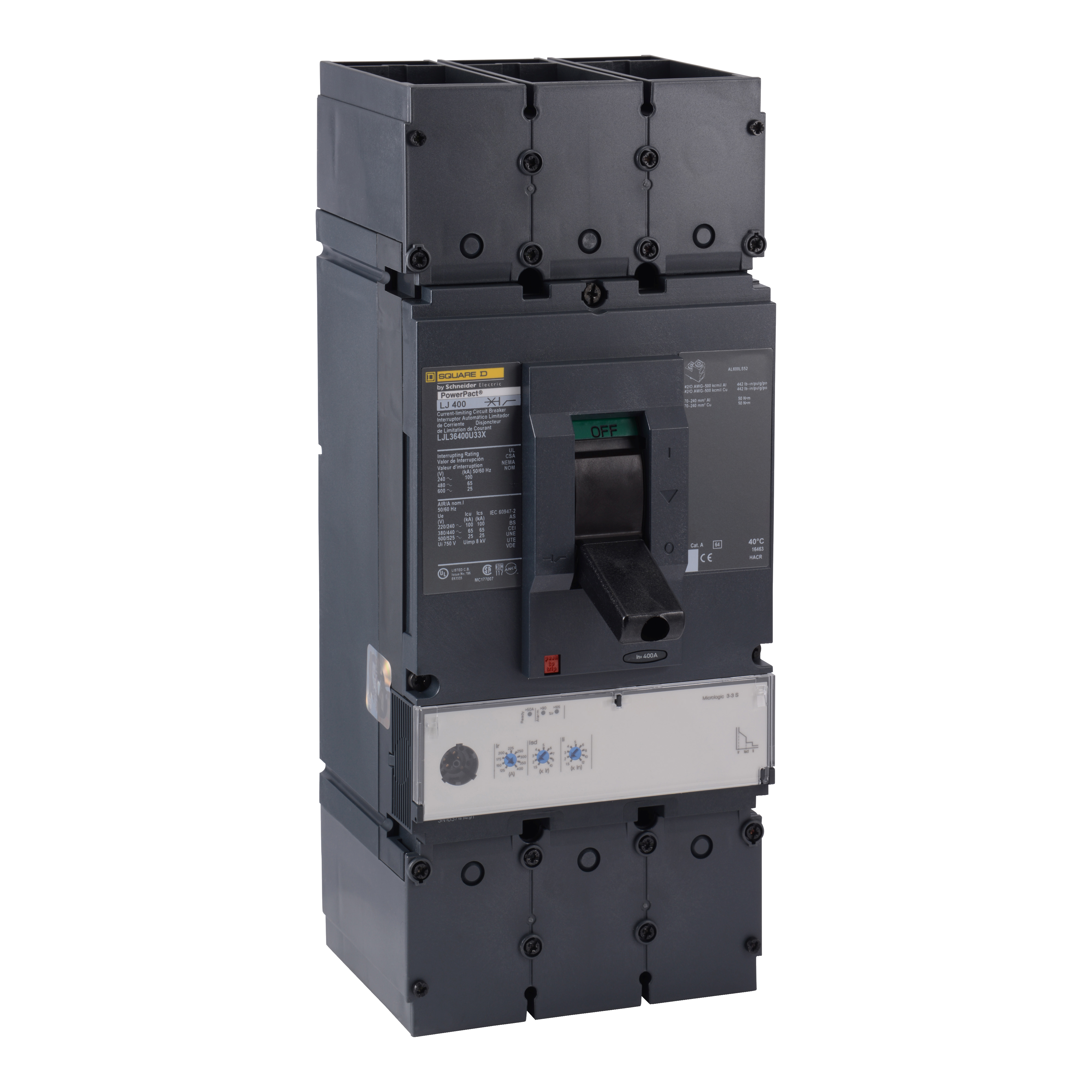

Schneider Electric PowerPact™ LJL36400U33X Standard Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles
Molded Case Circuit Breakers
855362
MFG #: LJL36400U33X
Square D™
5781.41000
/ ea
Schneider Electric LJL36400U33X MOLDED CASE CIRCUIT BREAKER 600V 400A,25 kA 600 V AC-65 kA 480 V AC-100 kA 240 V AC,600 V AC,400 A,400 A,600 V AC,J,circuit breaker,electronic standard Micrologic 3.3 S LSI,unit mount
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_HZ25W1SKB4RCLNYU.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_9RWX0CFH1M7KZJAS.pdf(Service Manual URL)
- Service Manual URL - 11003_B0ZYREMQVDHFIUG9.pdf(Service Manual URL)
- Spec Sheet URL - 11003_R4OXZK02V17UCLSE.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0100DB0501.pdf(Tech Bulletin URL)
- User Manual URL - 11003_1PJ5SYKZDV7IRU9E.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/xbXWcq35EIo(Video)
- User Manual URL - 11003_WZOKBYETD9V6M780.pdf(User Manual URL)
- Applications
- Features
| Distribution |
| UNIT MOUNT |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 600 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC interrupt rating |
| IEC style rotary operating handles |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
