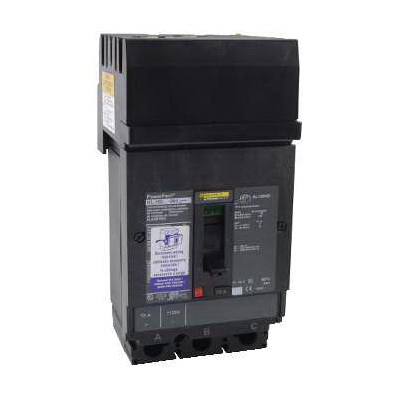

Schneider Electric PowerPact™ HLA36125SA Molded Case Circuit Breaker, 600 VAC, 125 A, 3 Poles, Shunt/Thermal Magnetic Trip

Custom_Product_Images_Illustration

SKU522493

MFGR #HLA36125SA

Your Cost: $4,887.20/ea

List: ~~$7,668.00~~ /ea

Schneider Electric HLA36125SA MOLDED CASE CIRCUIT BREAKER 600V 125A

: Catalog Number
HLA36125SA
Connection Type
Line/Load Lug
Country of Origin
US
Currency
USD
Dimensions
6.4 in H x 4.12 in W x 4.36 in D
Enclosure Type
NEMA AB1
Frame
H
Frequency Rating
50/60 Hz
Gross Weight Per Pack
5.0000 lb
Gross Weight per Pack Metric
2.27
Gross Weight UOM Metric
kg
Height
13.6530 in
Item Group
01122
Length
37.1480 in
Mounting Type
Surface
Number Of Poles
3
Phase
3 pH
Returnable
N
Temperature Rating
104 °F
Trip Range
900 to 1700 A
UNSPSC
39121616
UPC 11
78590183553
UPC 12
785901835530
Width
20.6380 in
Wire Size
14 to 3/0 AWG Al/Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
125 A
Interrupt Rating
125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC, 20 kA at 250 VDC, 50 kA at 500 VDC
Trip Type
Shunt/Thermal Magnetic
Voltage Rating
600 VAC
: Catalog
Seller Home Page
Spec Sheet
: Easy to install, extremely versatile, a wide variety of terminal

Flexible and simple offer, with proven performance

Direct access to energy metering and energy efficiency

Catalog Number	HLA36125SA
Connection Type	Line/Load Lug
Country of Origin	US
Currency	USD
Dimensions	6.4 in H x 4.12 in W x 4.36 in D
Enclosure Type	NEMA AB1
Frame	H
Frequency Rating	50/60 Hz
Gross Weight Per Pack	5.0000 lb
Gross Weight per Pack Metric	2.27
Gross Weight UOM Metric	kg
Height	13.6530 in
Item Group	01122
Length	37.1480 in
Mounting Type	Surface
Number Of Poles	3
Phase	3 pH
Returnable	N
Temperature Rating	104 °F
Trip Range	900 to 1700 A
UNSPSC	39121616
UPC 11	78590183553
UPC 12	785901835530
Width	20.6380 in
Wire Size	14 to 3/0 AWG Al/Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	125 A
Interrupt Rating	125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC, 20 kA at 250 VDC, 50 kA at 500 VDC
Trip Type	Shunt/Thermal Magnetic
Voltage Rating	600 VAC
