Square D™

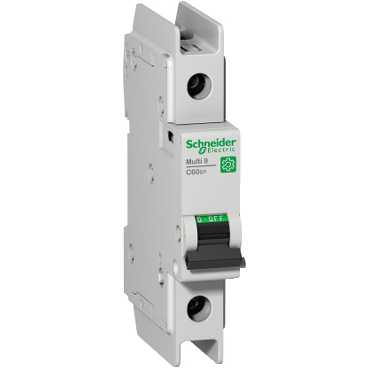

Schneider Electric M9F43105 C60BP Multi-Standard Miniature Circuit Breaker, 240/415 VAC/60 VDC, 5 A, 10 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Schneider Electric M9F43105 C60BP Multi-Standard Miniature Circuit Breaker, 240/415 VAC/60 VDC, 5 A, 10 kA Interrupt, 1 Pole
SKU1027080
MFGR #M9F43105
Your Cost: $79.67/ea
List: Multi9 C60BP 1P D 5A MCB
Multi9 C60BP 1P D 5A MCB
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F43105 Amperage Rating 5 A Application Distribution ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number M9F43105 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin FR Currency USD Dimensions 4.06 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.61 Gross Volume per Pack Metric 141.09 Gross Weight Per Pack 1.2300 lb Gross Weight per Pack Metric 123.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Interrupt Rating 10 kA Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710435&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Standards ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 Stock Status NORMALLY STOCKED Sub Brand C60BP;Multi 9 C60 Substitute Product Catalog Number M9A26927 Temperature Rating -22 to 158 °F Trip Range 12X In AC/17X In DC Trip Type D-Curve/Thermal Magnetic Type Multi-Standard UNSPSC 39121603 UPC 11 78590167240 UPC 12 785901672401 Voltage Rating 240/415 VAC/60 VDC Width 1.8000 in Width [Metric] 1.8000 cm Wire Size 18 to 8 AWG Cu Distribution C60BP - Branch Protection Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F43105 |
| Amperage Rating | 5 A |
| Application | Distribution |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | M9F43105 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 4.06 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.61 |
| Gross Volume per Pack Metric | 141.09 |
| Gross Weight Per Pack | 1.2300 lb |
| Gross Weight per Pack Metric | 123.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710435&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | C60BP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26927 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 12X In AC/17X In DC |
| Trip Type | D-Curve/Thermal Magnetic |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590167240 |
| UPC 12 | 785901672401 |
| Voltage Rating | 240/415 VAC/60 VDC |
| Width | 1.8000 in |
| Width [Metric] | 1.8000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Distribution |
| C60BP - Branch Protection |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
