Square D™

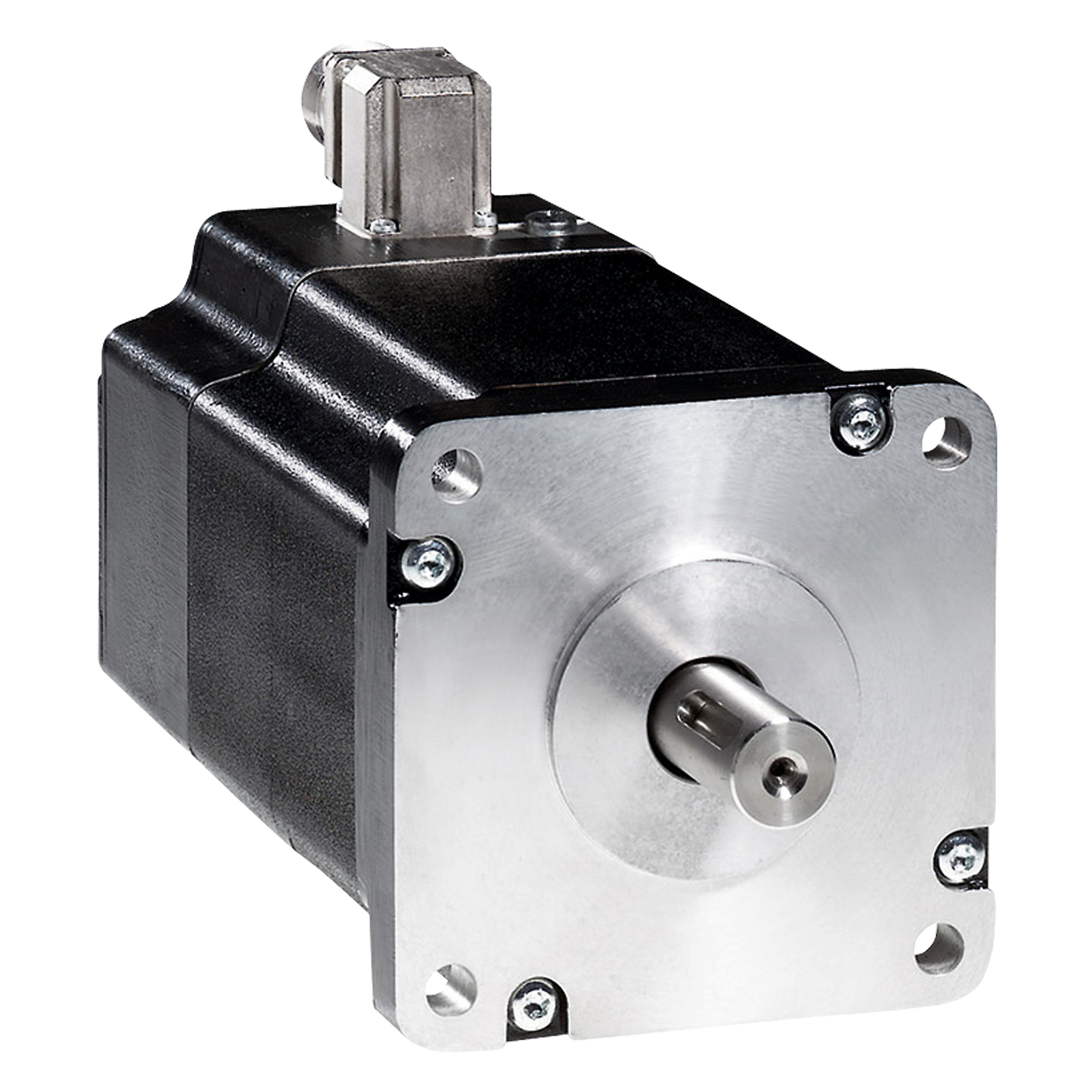

Schneider Electric Lexium™ SD3 BRS3ACW850ABA 6-Pole Motion Control AC Stepper Motor, Application Type: Lexium SD3 Motion Control, 3000 rpm Speed, 12 N-m Torque, 230 VAC/325 VDC, 4.1 A, 4.7 kHz, 3 ph Phase
Custom_Product_Images_Illustration
Square D™
Schneider Electric Lexium™ SD3 BRS3ACW850ABA 6-Pole Motion Control AC Stepper Motor, Application Type: Lexium SD3 Motion Control, 3000 rpm Speed, 12 N-m Torque, 230 VAC/325 VDC, 4.1 A, 4.7 kHz, 3 ph Phase
SKU1333234
MFGR #BRS3ACW850ABA
Call For Price
List: Schneider Electric Lexium™ SD3 AC Stepper Motor, 6-Pole Motion Control, Series: BRS3A, Lexium SD3 Motion Control Application, 230 VAC/325 VDC, 4.1 A, 4.7 kHz Frequency, 3 ph ph, 3000 rpm Speed, IP41/IP56 Enclosure, 19 mm Dia x 40 in L Shaft, Roller Bearing, 12 N-m Torque, Flange Mounting, -25 to 40 deg C, Insulation Class: F, 180 mm L Dimensions
Schneider Electric Lexium™ SD3 AC Stepper Motor, 6-Pole Motion Control, Series: BRS3A, Lexium SD3 Motion Control Application, 230 VAC/325 VDC, 4.1 A, 4.7 kHz Frequency, 3 ph ph, 3000 rpm Speed, IP41/IP56 Enclosure, 19 mm Dia x 40 in L Shaft, Roller Bearing, 12 N-m Torque, Flange Mounting, -25 to 40 deg C, Insulation Class: F, 180 mm L Dimensions
Alternate Catalog Number BRS3ACW850ABA ARRA Compliant N Buy American Compliant N Catalog Number BRS3ACW850ABA Country of Origin FR Currency USD EU RoHS Indicator Y Field Voltage 230-230 V AC-325-325 V DC Full Load Current Field 4.1 A Gross Volume Per Pack 1058.40 Gross Volume per Pack Metric 17344.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0908 lb Gross Weight per Pack Metric 9.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501314000 Height 22.0000 in Height [Metric] 22.0000 cm Insulation Class F WINDING IEC/EN 60034-1 Item Group 18284 Length 40.0000 in Length [Metric] 40.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=787052&lang=en-us Mounting 110 MM,125.86 MM,180 MM,3 MM,4,56 MM,9 MM,FLANGE Returnable Y Shaft Size 19 MM,40 MM,PARALLEL KEY,WITHOUT SECOND SHAFT END Speed Rating 3000 RPM Standard EN 50347-IEC 60072-1 Substitute Product Catalog Number ESECAPCZZSPMZZ Type BRS3,MOTION CONTROL MOTOR UNSPSC 26101202 Warranty Description Contractual Warranty:18 months Width 19.5000 in Width [Metric] 19.5000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frame 3-PHASE STEPPER MOTOR 11.42 N.M,12 N.M,13.5 N.M As a result of the sine commutation and the special mechanical design of the motors, the stepper motors are very quiet and run virtually without resonance The optimized internal geometry of the motor ensures a high power density With the flexible modular system and modern variant management, a wide variety of motor types can be manufactured and delivered in a very short time Without encoder Without holding brake Without second shaft end Terminal box connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | BRS3ACW850ABA |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BRS3ACW850ABA |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Field Voltage | 230-230 V AC-325-325 V DC |
| Full Load Current Field | 4.1 A |
| Gross Volume Per Pack | 1058.40 |
| Gross Volume per Pack Metric | 17344.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0908 lb |
| Gross Weight per Pack Metric | 9.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501314000 |
| Height | 22.0000 in |
| Height [Metric] | 22.0000 cm |
| Insulation Class | F WINDING IEC/EN 60034-1 |
| Item Group | 18284 |
| Length | 40.0000 in |
| Length [Metric] | 40.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=787052&lang=en-us |
| Mounting | 110 MM,125.86 MM,180 MM,3 MM,4,56 MM,9 MM,FLANGE |
| Returnable | Y |
| Shaft Size | 19 MM,40 MM,PARALLEL KEY,WITHOUT SECOND SHAFT END |
| Speed Rating | 3000 RPM |
| Standard | EN 50347-IEC 60072-1 |
| Substitute Product Catalog Number | ESECAPCZZSPMZZ |
| Type | BRS3,MOTION CONTROL MOTOR |
| UNSPSC | 26101202 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.5000 in |
| Width [Metric] | 19.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frame | 3-PHASE STEPPER MOTOR |
| 11.42 N.M,12 N.M,13.5 N.M |
| As a result of the sine commutation and the special mechanical design of the motors, the stepper motors are very quiet and run virtually without resonance |
| The optimized internal geometry of the motor ensures a high power density |
| With the flexible modular system and modern variant management, a wide variety of motor types can be manufactured and delivered in a very short time |
| Without encoder |
| Without holding brake |
| Without second shaft end |
| Terminal box connection |
