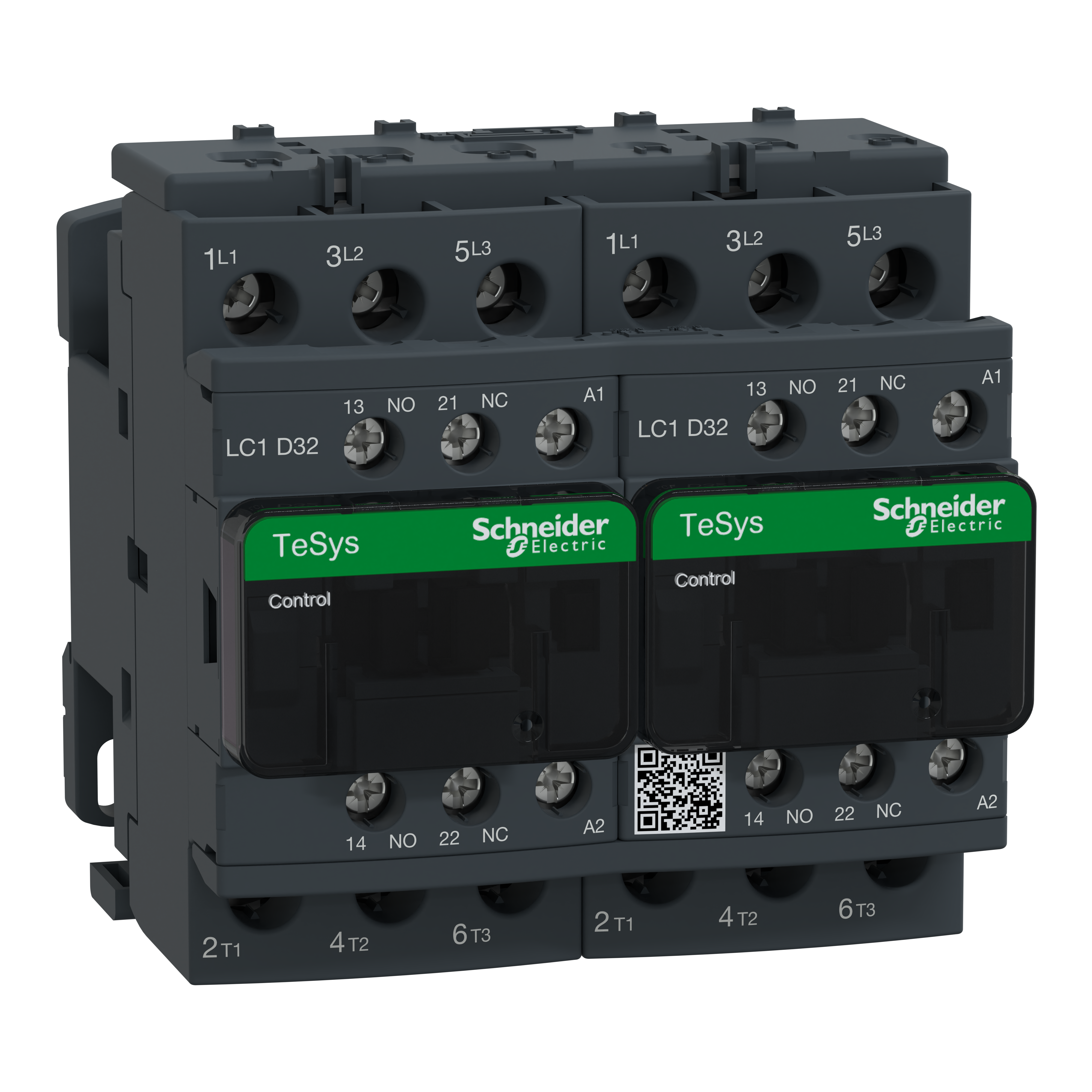

Schneider Electric LC2D32G7 TeSys™ D-Line Standard IEC Contactor, 120 VAC Coil, 32 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
Schneider Electric LC2D32G7 TeSys™ D-Line Standard IEC Contactor, 120 VAC Coil, 32 A Max Load, 3NO, 3 Poles
SKU60111
MFGR #LC2D32G7
Your Cost: $526.31/ea
Schneider Electric LC2D32G7 REVERSING CONTACTOR 575VAC 32A IEC,120 V AC 50/60 Hz,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,mechanical,LC2D,resistive load-motor control,LC2D,reversing contactor,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC2D32G7 REVERSING CONTACTOR 575VAC 32A IEC,120 V AC 50/60 Hz,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,mechanical,LC2D,resistive load-motor control,LC2D,reversing contactor,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC2D32G7 Application Motor control;Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC2D32G7 Coil Power Rating 70 VA Inrush/7/7.5 VA Hold-In Coil Voltage 120 VAC Connection Type Screw Clamp Contact Configuration 3NO Contact Rating 32 A at 575 VAC Contact Type Reversing Country of Origin FR Currency USD Dimensions 3.35 in H x 3.54 in W x 3.62 in D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 108.90 Gross Volume per Pack Metric 1784.54 Gross Weight Per Pack 2.0800 lb Gross Weight per Pack Metric 944.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 11.6000 in Height [Metric] 14.0000 cm Item Group 22354 Length 14.1000 in Length [Metric] 11.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1475048&lang=en-us Maximum Load Current 32 A Mounting PLATE-RAIL Mounting Type Surface Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 15000000 Operating Temperature -5 to 60 Returnable Y Series D-Line LC2D Size 85 MM,90 MM,92 MM Standard 850 A°C IEC 60695-2-1,BV-RINA-CSA-DNV-CCC-GOST-LROS (LLOYDS REGISTER OF SHIPPING)-GL-UL,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NORMALLY STOCKED Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Terminal Type Screw/Clamp Type Standard UNSPSC 39121529 UPC 11 78590120755 UPC 12 785901207559 Warranty Description Contractual Warranty:18 months Wattage 18.5 kW Width 11.6000 in Width [Metric] 11.5000 cm Motor control;resistive load 2 HP 115 V AC 60 HZ 1 PHASE-5 HP 230/240 V AC 60 HZ 1 PHASE-7.5 HP 200/208 V AC 60 HZ 3 PHASE-10 HP 230/240 V AC 60 HZ 3 PHASE-20 HP 460/480 V AC 60 HZ 3 PHASE-30 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC2D32G7 |
| Application | Motor control;Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC2D32G7 |
| Coil Power Rating | 70 VA Inrush/7/7.5 VA Hold-In |
| Coil Voltage | 120 VAC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 32 A at 575 VAC |
| Contact Type | Reversing |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.35 in H x 3.54 in W x 3.62 in D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 108.90 |
| Gross Volume per Pack Metric | 1784.54 |
| Gross Weight Per Pack | 2.0800 lb |
| Gross Weight per Pack Metric | 944.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.6000 in |
| Height [Metric] | 14.0000 cm |
| Item Group | 22354 |
| Length | 14.1000 in |
| Length [Metric] | 11.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1475048&lang=en-us |
| Maximum Load Current | 32 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 15000000 |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | D-Line LC2D |
| Size | 85 MM,90 MM,92 MM |
| Standard | 850 A°C IEC 60695-2-1,BV-RINA-CSA-DNV-CCC-GOST-LROS (LLOYDS REGISTER OF SHIPPING)-GL-UL,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Terminal Type | Screw/Clamp |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 78590120755 |
| UPC 12 | 785901207559 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 18.5 kW |
| Width | 11.6000 in |
| Width [Metric] | 11.5000 cm |
| Motor control;resistive load |
| 2 HP 115 V AC 60 HZ 1 PHASE-5 HP 230/240 V AC 60 HZ 1 PHASE-7.5 HP 200/208 V AC 60 HZ 3 PHASE-10 HP 230/240 V AC 60 HZ 3 PHASE-20 HP 460/480 V AC 60 HZ 3 PHASE-30 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE |
