Schneider Electric

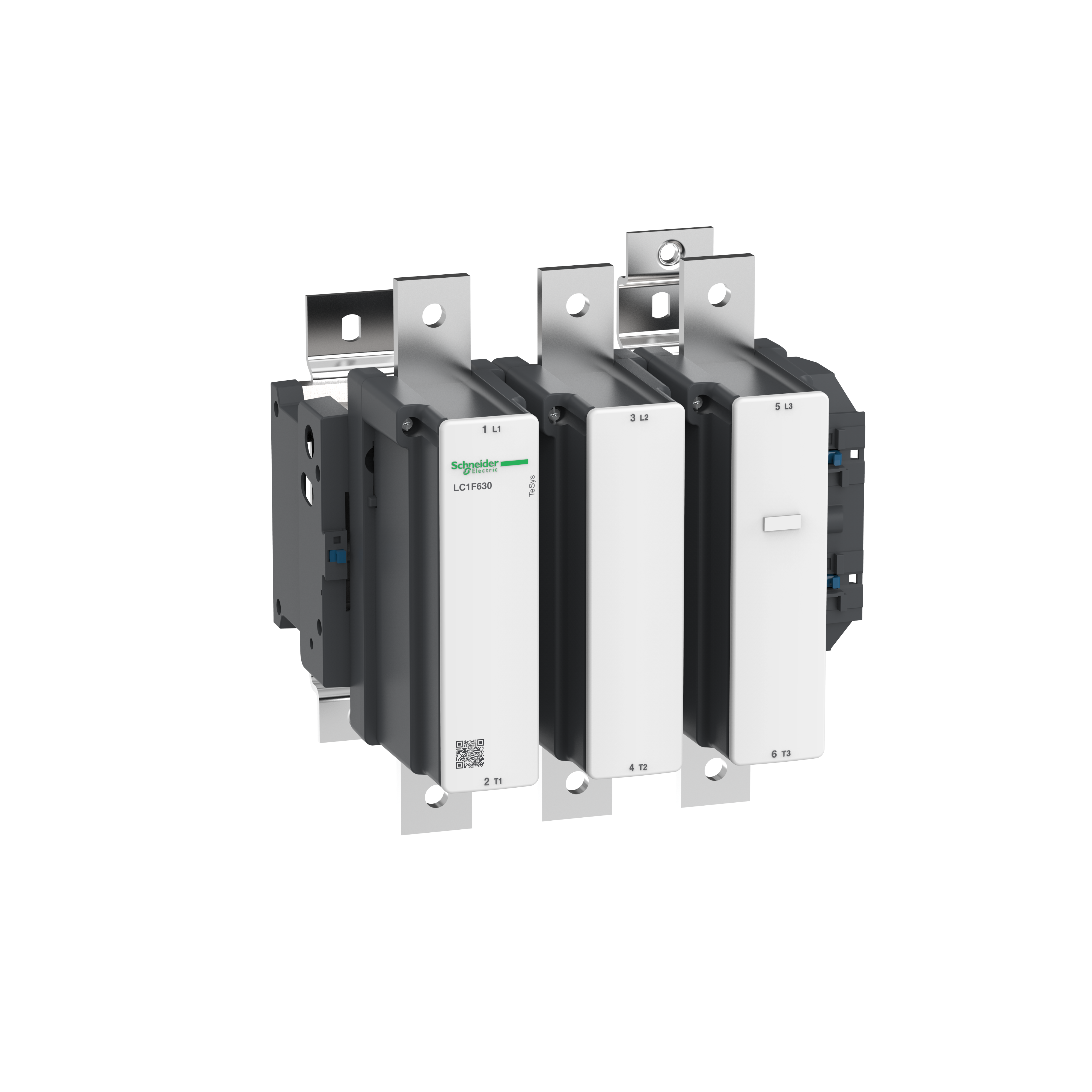

Schneider Electric LC1F630F7 CONTACTOR 600VAC 630A
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1F630F7 CONTACTOR 600VAC 630A
SKU96783
MFGR #LC1F630F7
Your Cost: $8,359.99/ea
Schneider Electric LC1F630F7 CONTACTOR 600VAC 630AMP IEC +OPTIONS,1000 A at <= 40 deg.C-1250 A,110 V AC 40...400 Hz,3 NO,3P,LC1F,contactor,LC1F,resistive load-motor control,Screw Clamp,TeSys,TeSys F,plate
Schneider Electric LC1F630F7 CONTACTOR 600VAC 630AMP IEC +OPTIONS,1000 A at <= 40 deg.C-1250 A,110 V AC 40...400 Hz,3 NO,3P,LC1F,contactor,LC1F,resistive load-motor control,Screw Clamp,TeSys,TeSys F,plate
Alternate Catalog Number LC1F630F7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1F630F7 Coil Power Rating 450 kW at 1000 VAC Coil Voltage 110 VAC Contact Configuration 3NO Contact Rating 1000 A 40 A°C-1250 A Country of Origin CZ Currency USD Dimensions 304 mm H x 309 mm W x 255 mm D Enclosure Type IP20 EU RoHS Indicator Y Frequency Rating 40 to 400 Hz Gross Weight Per Pack 40.8300 lb Gross Weight per Pack Metric 18.40 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 11.31 in Height [Metric] 29.0000 cm Item Group 22336 Length 14.04 in Length [Metric] 36.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621804&lang=en-us Maximum Load Current 630/1000 A Mounting PLATE Mounting Type Plate Number Of Poles 3 Operating Cycles 1200 Cycles/hr Operating Temperature -5 to 55 Returnable Y Series TeSys™ F LC1F Size 255 MM,304 MM,309 MM Standard CSA-BV-CB-RMROS-LROS (LLOYDS REGISTER OF SHIPPING)-ABS-UL-RINA-DNV,IEC 60947-1-JIS C8201-4-1-EN 60947-1-IEC 60947-4-1-EN 60947-4-1,IP20 FRONT FACE WITH SHROUDS IEC 60529-IP20 FRONT FACE WITH SHROUDS VDE 0106 Stock Status NONSTOCK Sub Brand TESYS F Terminal Type Bolted/Busbar/Screw Clamp Type Non-Reversing UNSPSC 39121529 UPC 11 78590114904 UPC 12 785901149040 Warranty Description Contractual Warranty:18 months Wattage 120 W AC-1-48 W AC-3 Width 13.65 in Width [Metric] 35.0000 cm Resistive load;motor control 1000 A AT <= 40 °C-1250 A All DC or AC control voltages 50/400 Hz Power connection Safety of operation Quick, simple mounting of contactor and GV7-R circuit-breaker High power 3-pole TeSys™ F contactor from Schneider electric for motor applications 630 A AC-3 335 kW at 400 V It provides a 110 VAC 40 to 400 Hz low sealed consumption coil and bolt terminals for the connection of bars or cables with lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1F630F7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1F630F7 |
| Coil Power Rating | 450 kW at 1000 VAC |
| Coil Voltage | 110 VAC |
| Contact Configuration | 3NO |
| Contact Rating | 1000 A 40 A°C-1250 A |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 304 mm H x 309 mm W x 255 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Frequency Rating | 40 to 400 Hz |
| Gross Weight Per Pack | 40.8300 lb |
| Gross Weight per Pack Metric | 18.40 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.31 in |
| Height [Metric] | 29.0000 cm |
| Item Group | 22336 |
| Length | 14.04 in |
| Length [Metric] | 36.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621804&lang=en-us |
| Maximum Load Current | 630/1000 A |
| Mounting | PLATE |
| Mounting Type | Plate |
| Number Of Poles | 3 |
| Operating Cycles | 1200 Cycles/hr |
| Operating Temperature | -5 to 55 |
| Returnable | Y |
| Series | TeSys™ F LC1F |
| Size | 255 MM,304 MM,309 MM |
| Standard | CSA-BV-CB-RMROS-LROS (LLOYDS REGISTER OF SHIPPING)-ABS-UL-RINA-DNV,IEC 60947-1-JIS C8201-4-1-EN 60947-1-IEC 60947-4-1-EN 60947-4-1,IP20 FRONT FACE WITH SHROUDS IEC 60529-IP20 FRONT FACE WITH SHROUDS VDE 0106 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS F |
| Terminal Type | Bolted/Busbar/Screw Clamp |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590114904 |
| UPC 12 | 785901149040 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 120 W AC-1-48 W AC-3 |
| Width | 13.65 in |
| Width [Metric] | 35.0000 cm |
| Resistive load;motor control |
| 1000 A AT <= 40 °C-1250 A |
| All DC or AC control voltages 50/400 Hz |
| Power connection |
| Safety of operation |
| Quick, simple mounting of contactor and GV7-R circuit-breaker |
| High power 3-pole TeSys™ F contactor from Schneider electric for motor applications 630 A AC-3 335 kW at 400 V |
| It provides a 110 VAC 40 to 400 Hz low sealed consumption coil and bolt terminals for the connection of bars or cables with lugs |
