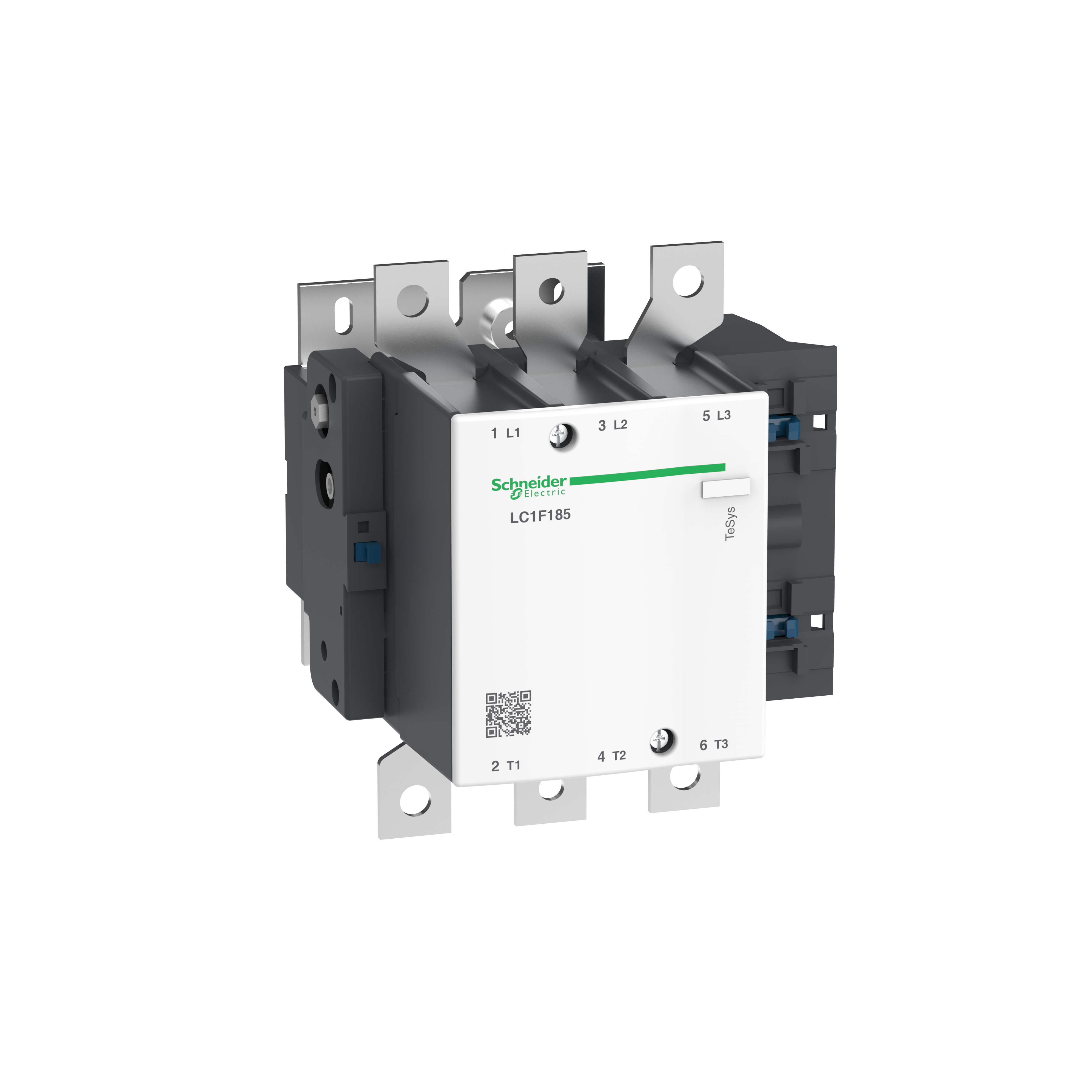

Schneider Electric LC1F185F7 CONTACTOR 600VAC 185A
Custom_Product_Images_Illustration
Schneider Electric LC1F185F7 CONTACTOR 600VAC 185A
SKU96916
MFGR #LC1F185F7
Your Cost: $1,199.03/ea
Schneider Electric LC1F185F7 CONTACTOR 600VAC 185AMP IEC +OPTIONS,110 V AC 40...400 Hz,275 A at <= 40 deg.C,3 NO,3P,LC1F,contactor,LC1F,motor control-resistive load,Screw Clamp,TeSys,TeSys F,plate
Schneider Electric LC1F185F7 CONTACTOR 600VAC 185AMP IEC +OPTIONS,110 V AC 40...400 Hz,275 A at <= 40 deg.C,3 NO,3P,LC1F,contactor,LC1F,motor control-resistive load,Screw Clamp,TeSys,TeSys F,plate
Alternate Catalog Number LC1F185F7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1F185F7 Coil Power Rating 110 kW at 660 to 690 VAC Coil Voltage 110 VAC Contact Configuration 3NO Contact Rating 275 A 40 A°C Country of Origin CZ Currency USD Dimensions 174 mm H x 168.5 mm W x 181 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 40 to 400 Hz Gross Volume Per Pack 646.06 Gross Volume per Pack Metric 10586.98 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 11.0900 lb Gross Weight per Pack Metric 4.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 9.32 in Height [Metric] 23.9000 cm Item Group 22336 Length 9.94 in Length [Metric] 25.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621218&lang=en-us Maximum Load Current 185/275 A Mounting PLATE Mounting Type Plate Number Of Poles 3 Operating Cycles 2400 Cycles/hr Operating Temperature -5 to 55 Returnable Y Series TeSys™ F LC1F Size 168.5 MM,174 MM,181 MM Standard EN 60947-4-1-IEC 60947-4-1-EN 60947-1-IEC 60947-1-JIS C8201-4-1,IP2X FRONT FACE WITH SHROUDS IEC 60529-IP2X FRONT FACE WITH SHROUDS VDE 0106,UL-CSA-ABS-LROS (LLOYDS REGISTER OF SHIPPING)-CB-DNV-RINA-RMROS-BV Stock Status NONSTOCK Sub Brand TESYS F Terminal Type Bolted/Busbar/Lugs Ring Tongue/Screw Clamp Type Non-Reversing UNSPSC 39121529 UPC 11 78590117371 UPC 12 785901173717 Warranty Description Contractual Warranty:18 months Wattage 12 W AC-3-25 W AC-1 Width 9.36 in Width [Metric] 24.0000 cm Motor control;resistive load 275 A AT <= 40 °C All DC or AC control voltages 50/400 Hz Power connection Safety of operation Quick, simple mounting of contactor and GV7-R circuit-breaker
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1F185F7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1F185F7 |
| Coil Power Rating | 110 kW at 660 to 690 VAC |
| Coil Voltage | 110 VAC |
| Contact Configuration | 3NO |
| Contact Rating | 275 A 40 A°C |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 174 mm H x 168.5 mm W x 181 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 40 to 400 Hz |
| Gross Volume Per Pack | 646.06 |
| Gross Volume per Pack Metric | 10586.98 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 11.0900 lb |
| Gross Weight per Pack Metric | 4.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.32 in |
| Height [Metric] | 23.9000 cm |
| Item Group | 22336 |
| Length | 9.94 in |
| Length [Metric] | 25.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621218&lang=en-us |
| Maximum Load Current | 185/275 A |
| Mounting | PLATE |
| Mounting Type | Plate |
| Number Of Poles | 3 |
| Operating Cycles | 2400 Cycles/hr |
| Operating Temperature | -5 to 55 |
| Returnable | Y |
| Series | TeSys™ F LC1F |
| Size | 168.5 MM,174 MM,181 MM |
| Standard | EN 60947-4-1-IEC 60947-4-1-EN 60947-1-IEC 60947-1-JIS C8201-4-1,IP2X FRONT FACE WITH SHROUDS IEC 60529-IP2X FRONT FACE WITH SHROUDS VDE 0106,UL-CSA-ABS-LROS (LLOYDS REGISTER OF SHIPPING)-CB-DNV-RINA-RMROS-BV |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS F |
| Terminal Type | Bolted/Busbar/Lugs Ring Tongue/Screw Clamp |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590117371 |
| UPC 12 | 785901173717 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 12 W AC-3-25 W AC-1 |
| Width | 9.36 in |
| Width [Metric] | 24.0000 cm |
| Motor control;resistive load |
| 275 A AT <= 40 °C |
| All DC or AC control voltages 50/400 Hz |
| Power connection |
| Safety of operation |
| Quick, simple mounting of contactor and GV7-R circuit-breaker |
