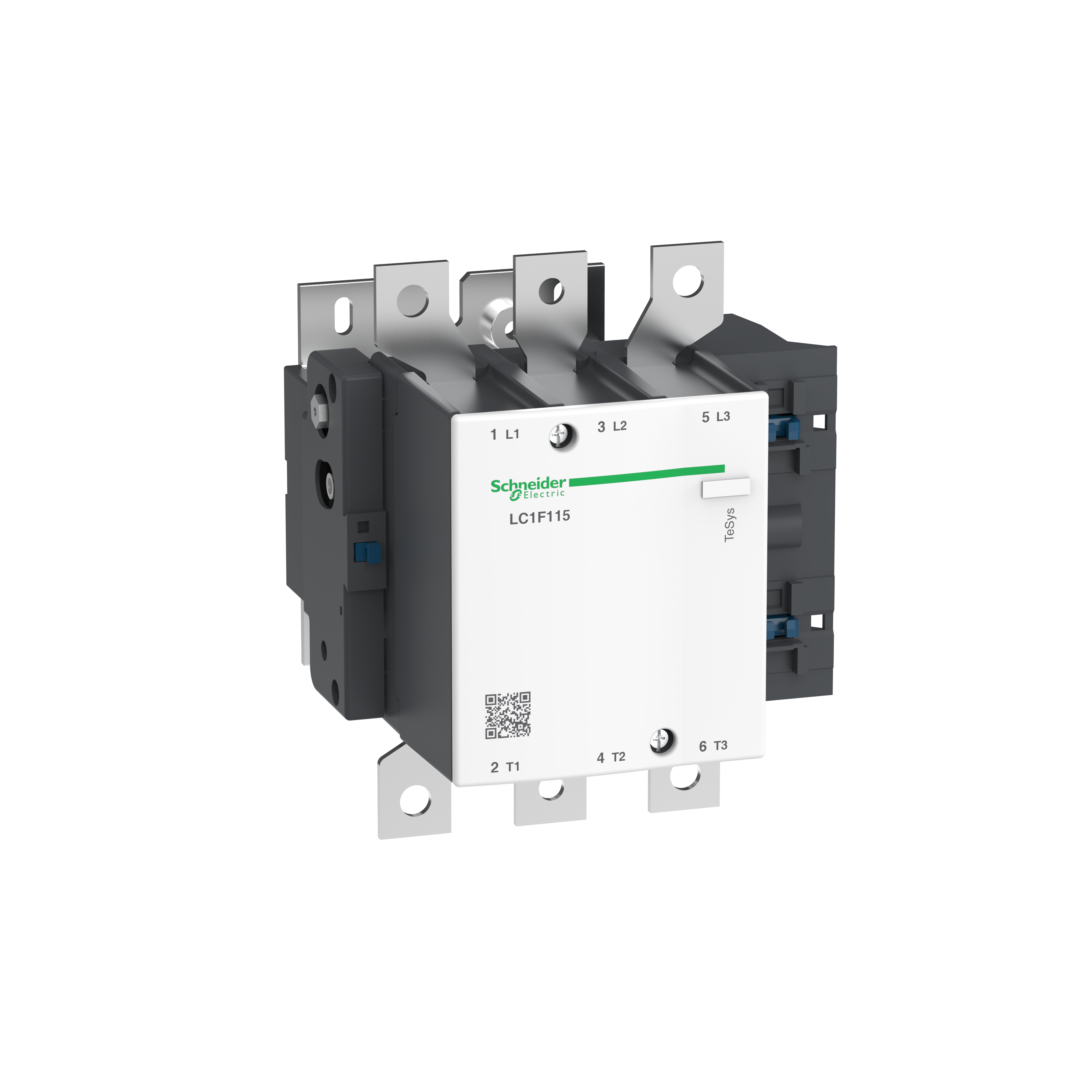

Schneider Electric LC1F115G7 NEMA & IEC Contactors
Custom_Product_Images_Illustration
Schneider Electric LC1F115G7 NEMA & IEC Contactors
SKU240077
MFGR #LC1F115G7
Call For Price
List: Schneider Electric LC1F115G7 CONTACTOR 600VAC 115AMP IEC +OPTIONS,-5C to 55C,115A inductive, 200A resistive,120VAC40/400Hz,16.66-200Hz,3,3-Pole,Bolt on or Lugs (sold separately),Contactor with 120VAC 50/60Hz rated coil with built in surge suppressor,IEC Contactor and starter applications. Both Inductive and resistive current values,Non-Reversing Contactor,Panel Mount,TeSys,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,Up to 600VAC (UL), 115A inductive, 200A Resistive
Schneider Electric LC1F115G7 CONTACTOR 600VAC 115AMP IEC +OPTIONS,-5C to 55C,115A inductive, 200A resistive,120VAC40/400Hz,16.66-200Hz,3,3-Pole,Bolt on or Lugs (sold separately),Contactor with 120VAC 50/60Hz rated coil with built in surge suppressor,IEC Contactor and starter applications. Both Inductive and resistive current values,Non-Reversing Contactor,Panel Mount,TeSys,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,Up to 600VAC (UL), 115A inductive, 200A Resistive
Alternate Catalog Number LC1F115G7 Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1F115G7 Coil Power Rating 80 kW at 660 to 690 VAC Coil Voltage 120 VAC Connection BOLT ON OR LUGS (SOLD SEPARATELY) Contact Configuration 3NO Contact Rating UP TO 600VAC (UL), 115A INDUCTIVE, 200A RESISTIVE Country of Origin CZ Currency USD Dimensions 162 mm H x 163.3 mm W x 171 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 40 to 400 Hz Gross Volume Per Pack 512.46 Gross Volume per Pack Metric 8397.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 8.7300 lb Gross Weight per Pack Metric 3.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 8.19 in Height [Metric] 21.0000 cm Item Group 22336 Length 9.36 in Length [Metric] 24.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620970&lang=en-us Maximum Load Current 115/200 A Mounting Panel Mount Mounting Type Panel Number Of Poles 3 Operating Cycles 2400 Cycles/hr Operating Temperature -5 to 55 Phase 3 Returnable Y Series TeSys™ F LC1F Size 162 MM,163.3 MM,171 MM Standard UL LISTED (E164862 / NLDX) - CSA CERTIFIED (LR43364 3211 04) - IEC RATED (60647-4) - CE MARKED - ROHS COMPLIANT Stock Status NONSTOCK Sub Brand TESYS Terminal Type Bolted/Busbar/Lugs Ring Tongue Type Non-Reversing UNSPSC 39121529 UPC 11 78590172224 UPC 12 785901722243 Warranty Description Contractual Warranty:18 months Wattage 15 W AC-1-5 W AC-3 Width 8.58 in Width [Metric] 22.0000 cm Resistive load;motor control CONTACTOR WITH 120VAC 50/60HZ RATED COIL WITH BUILT IN SURGE SUPPRESSOR All DC or AC control voltages 50/400 Hz Power connection Safety of operation Quick, simple mounting of contactor and GV7-R circuit-breaker
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1F115G7 |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1F115G7 |
| Coil Power Rating | 80 kW at 660 to 690 VAC |
| Coil Voltage | 120 VAC |
| Connection | BOLT ON OR LUGS (SOLD SEPARATELY) |
| Contact Configuration | 3NO |
| Contact Rating | UP TO 600VAC (UL), 115A INDUCTIVE, 200A RESISTIVE |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 162 mm H x 163.3 mm W x 171 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 40 to 400 Hz |
| Gross Volume Per Pack | 512.46 |
| Gross Volume per Pack Metric | 8397.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 8.7300 lb |
| Gross Weight per Pack Metric | 3.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 8.19 in |
| Height [Metric] | 21.0000 cm |
| Item Group | 22336 |
| Length | 9.36 in |
| Length [Metric] | 24.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620970&lang=en-us |
| Maximum Load Current | 115/200 A |
| Mounting | Panel Mount |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Operating Cycles | 2400 Cycles/hr |
| Operating Temperature | -5 to 55 |
| Phase | 3 |
| Returnable | Y |
| Series | TeSys™ F LC1F |
| Size | 162 MM,163.3 MM,171 MM |
| Standard | UL LISTED (E164862 / NLDX) - CSA CERTIFIED (LR43364 3211 04) - IEC RATED (60647-4) - CE MARKED - ROHS COMPLIANT |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS |
| Terminal Type | Bolted/Busbar/Lugs Ring Tongue |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590172224 |
| UPC 12 | 785901722243 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 15 W AC-1-5 W AC-3 |
| Width | 8.58 in |
| Width [Metric] | 22.0000 cm |
| Resistive load;motor control |
| CONTACTOR WITH 120VAC 50/60HZ RATED COIL WITH BUILT IN SURGE SUPPRESSOR |
| All DC or AC control voltages 50/400 Hz |
| Power connection |
| Safety of operation |
| Quick, simple mounting of contactor and GV7-R circuit-breaker |
