Schneider Electric

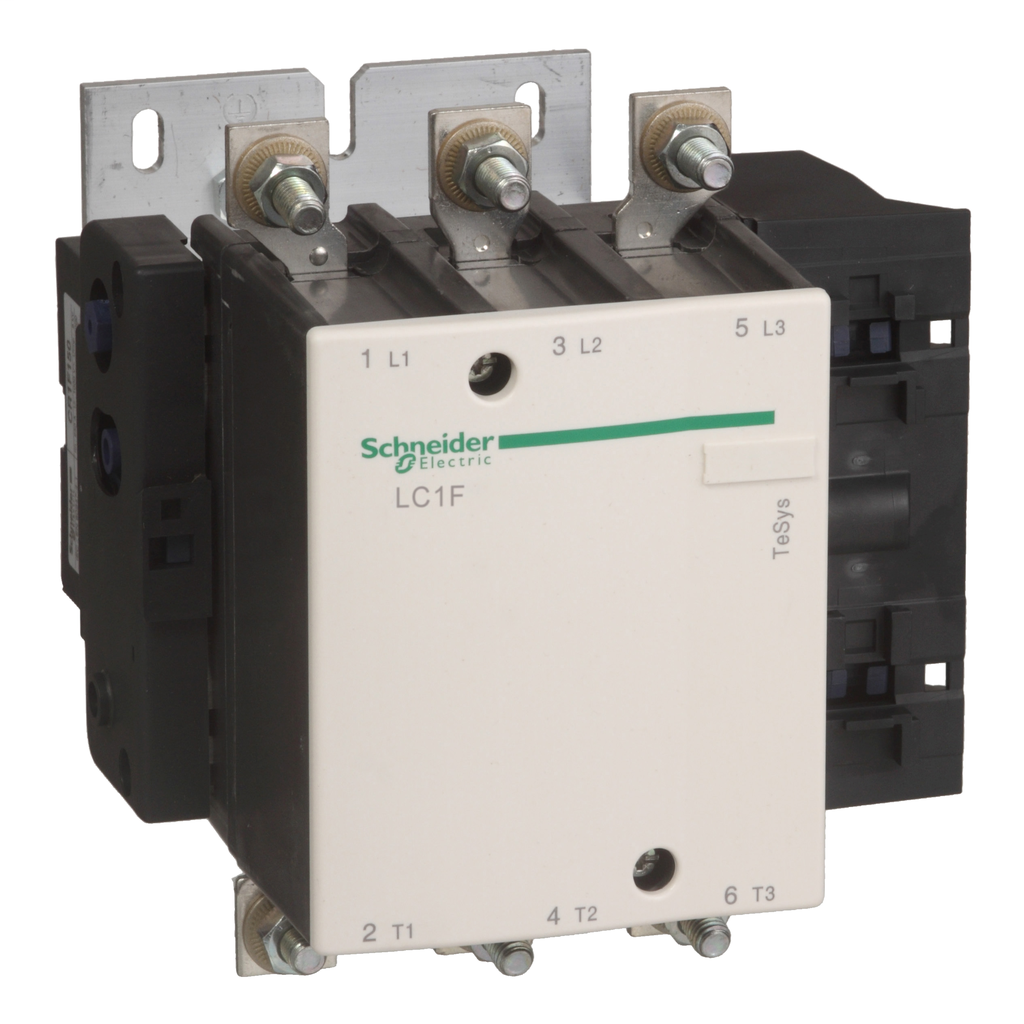

Schneider Electric LC1F115F5 CONTACTOR 600VAC 115A
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1F115F5 CONTACTOR 600VAC 115A
SKU98395
MFGR #LC1F115F5
Your Cost: $618.54/ea
Schneider Electric LC1F115F5 CONTACTOR 600VAC 115AMP IEC +OPTIONS,110 V AC 50 Hz,200 A at <= 40 deg.C,3 NO,3P,LC1F,contactor,LC1F,resistive load-motor control,Screw Clamp,TeSys,TeSys F,plate
Schneider Electric LC1F115F5 CONTACTOR 600VAC 115AMP IEC +OPTIONS,110 V AC 50 Hz,200 A at <= 40 deg.C,3 NO,3P,LC1F,contactor,LC1F,resistive load-motor control,Screw Clamp,TeSys,TeSys F,plate
Application MOTOR CONTROL-RESISTIVE LOAD ARRA Compliant N Buy American Compliant N Catalog Number LC1F115F5 Coil Power Rating 80 kW at 660 to 690 VAC Contact Rating 200 A 40 A°C Country of Origin CZ Dimensions 162 mm H x 163.3 mm W x 171 mm D Enclosure Type IP2X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 9.0600 lb Harmonization Tariff Schedule Code 8536490065 Item Group 22336 Mounting PLATE Mounting Type Plate Number Of Poles 3 Operating Cycles 2400 Cycles/hr Operating Temperature -5 to 55 Returnable Y Series TeSys™ F LC1F Size 162 MM,163.3 MM,171 MM Standard DNV-RMROS-CCC-BV-ABS-CB-UL-RINA-LROS (LLOYDS REGISTER OF SHIPPING),EN 60947-4-1-IEC 60947-4-1-IEC 60947-1-JIS C8201-4-1-EN 60947-1,IP2X FRONT FACE WITH SHROUDS IEC 60529-IP2X FRONT FACE WITH SHROUDS VDE 0106 Sub Brand TESYS F Terminal Type Bolted/Busbar/Lugs Ring Tongue/Screw Clamp UNSPSC 39121529 UPC 11 78590143541 UPC 12 785901435419 Wattage 15 W AC-1-5 W AC-3 Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 110 VAC Contact Configuration 3NO Maximum Load Current 115/200 A Type Non-Reversing MOTOR CONTROL-RESISTIVE LOAD 200 A AT <= 40 °C All DC or AC control voltages 50/400 Hz Power connection Safety of operation Quick, simple mounting of contactor and GV7-R circuit-breaker
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | MOTOR CONTROL-RESISTIVE LOAD |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1F115F5 |
| Coil Power Rating | 80 kW at 660 to 690 VAC |
| Contact Rating | 200 A 40 A°C |
| Country of Origin | CZ |
| Dimensions | 162 mm H x 163.3 mm W x 171 mm D |
| Enclosure Type | IP2X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 9.0600 lb |
| Harmonization Tariff Schedule Code | 8536490065 |
| Item Group | 22336 |
| Mounting | PLATE |
| Mounting Type | Plate |
| Number Of Poles | 3 |
| Operating Cycles | 2400 Cycles/hr |
| Operating Temperature | -5 to 55 |
| Returnable | Y |
| Series | TeSys™ F LC1F |
| Size | 162 MM,163.3 MM,171 MM |
| Standard | DNV-RMROS-CCC-BV-ABS-CB-UL-RINA-LROS (LLOYDS REGISTER OF SHIPPING),EN 60947-4-1-IEC 60947-4-1-IEC 60947-1-JIS C8201-4-1-EN 60947-1,IP2X FRONT FACE WITH SHROUDS IEC 60529-IP2X FRONT FACE WITH SHROUDS VDE 0106 |
| Sub Brand | TESYS F |
| Terminal Type | Bolted/Busbar/Lugs Ring Tongue/Screw Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590143541 |
| UPC 12 | 785901435419 |
| Wattage | 15 W AC-1-5 W AC-3 |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 110 VAC |
| Contact Configuration | 3NO |
| Maximum Load Current | 115/200 A |
| Type | Non-Reversing |
| MOTOR CONTROL-RESISTIVE LOAD |
| 200 A AT <= 40 °C |
| All DC or AC control voltages 50/400 Hz |
| Power connection |
| Safety of operation |
| Quick, simple mounting of contactor and GV7-R circuit-breaker |
